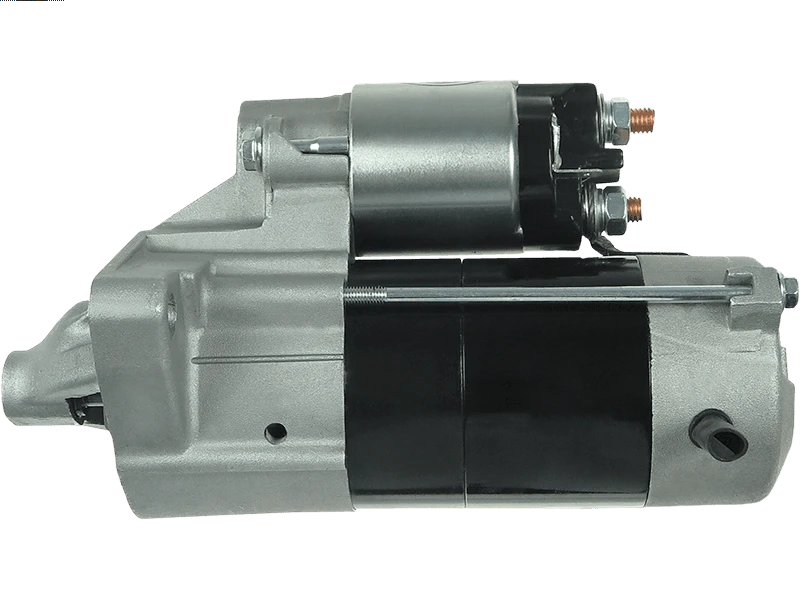

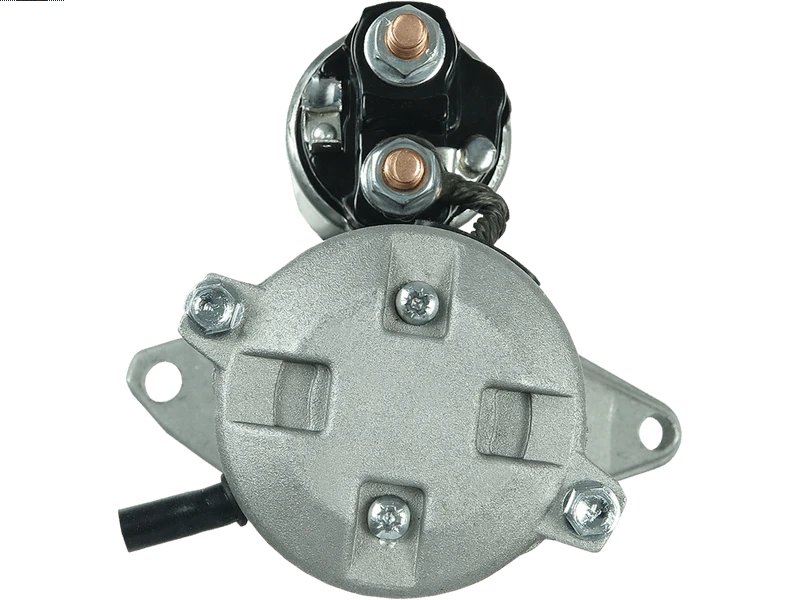

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 335.33 including GST
NZ$ 291.59 excluding GST
or four payments of $83.83
with
Learn More
each
S6133
S6209S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
0986016441 110.502.092 11759 20432112BN 20657 20998 22.0998 22800-6930 25-1228 28100-87107 2810087106 281008710600 31362R 458542 6040211 8052619 8212513 8EA737189-001 9646 AES8189 CST40211 CST40211AS CST40211ES CST40211GS CST40211OS CST40211RS DRS3133 DRS3694 JS998 LRS00889 STR70051Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 212 mm |
| Mount Hole Center - Center (O.1) | 132 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 3.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAIHATSU | Applause 1.6 | [HD] | 01.1989-1990 |
| DAIHATSU | Applause 1.6 4x4 | [HD] | 01.1989-1993 |
| DAIHATSU | Charade 1.3 | [HC-E] | 01.1988-1990 |
| DAIHATSU | Charade 1.5 | [HEEG] | 01.1994-2000 |
| DAIHATSU | Charade 1.6 16V GTi | [HD-E] | 01.1993-2000 |
| DAIHATSU | Gran Move 1.5 16V | [HE-EG] | 01.1996-2000 |
Reference Information
| 003-I206 | ASHIKA |
| 003-T325 | ASHIKA |
| 0986016441 | BOSCH |
| 110.502.092 | PSH |
| 11759 | EAI |
| 20432112BN | REAL |
| 20657 | KUHNER |
| 20998 | KUHNER |
| 22.0998 | LAUBER |
| 22800-6930 | DENSO |
| 25-1228 | ELSTOCK |
| 28100-08010 | TOYOTA |
| 2810087106 | DAIHATSU |
| 281008710600 | DAIHATSU |
| 2810087106000 | DAIHATSU |
| 28100-87107 | TOYOTA |
| 2810087107000 | DAIHATSU |
| 2810087715 | DAIHATSU |
| 28100-87715 | DAIHATSU |
| 2810087715000 | DAIHATSU |
| 2810087730 | DAIHATSU |
| 28100-87730 | DAIHATSU |
| 2810087730000 | DAIHATSU |
| 2810087730B | DAIHATSU |
| 2810087731 | TOYOTA |
| 2810087731000 | DAIHATSU |
| 31362R | WAI / TRANSPO |
| 3I206 | JAPKO |
| 3T325 | JAPKO |
| 458542 | VALEO |
| 6040211 | SANDO |
| 8052619 | FRIESEN |
| 8212513 | POWERMAX |
| 8EA737189-001 | HELLA |
| 9646 | CEVAM |
| AES8189 | AUTOELECTRO |
| CST40211 | CASCO |
| CST40211AS | CASCO |
| CST40211ES | CASCO |
| CST40211GS | CASCO |
| CST40211OS | CASCO |
| CST40211RS | CASCO |
| DRS3133 | DELCO |
| DRS3694 | DELCO |
| JS1088 | HC PARTS |
| JS998 | HC PARTS |
| LRS00889 | LUCAS |
| LRS889 | LUCAS |
| M003T40771 | MITSUBISHI |
| M3T40771 | MITSUBISHI |
| MAV421760 | SIOM |
| MAV422110 | SIOM |
| MTI206 | JAPANPARTS |
| MTT325 | JAPANPARTS |
| STR70051 | WOODAUTO |
| STRF150 | 3EFFE |
| STX200089 | STARDAX |
| STX200089R | STARDAX |
| STX200810 | STARDAX |
Video/Publications
