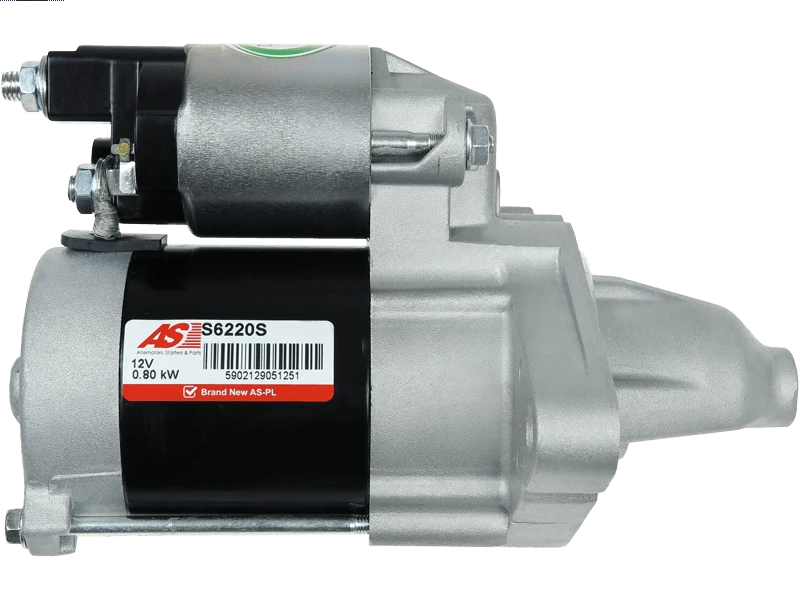

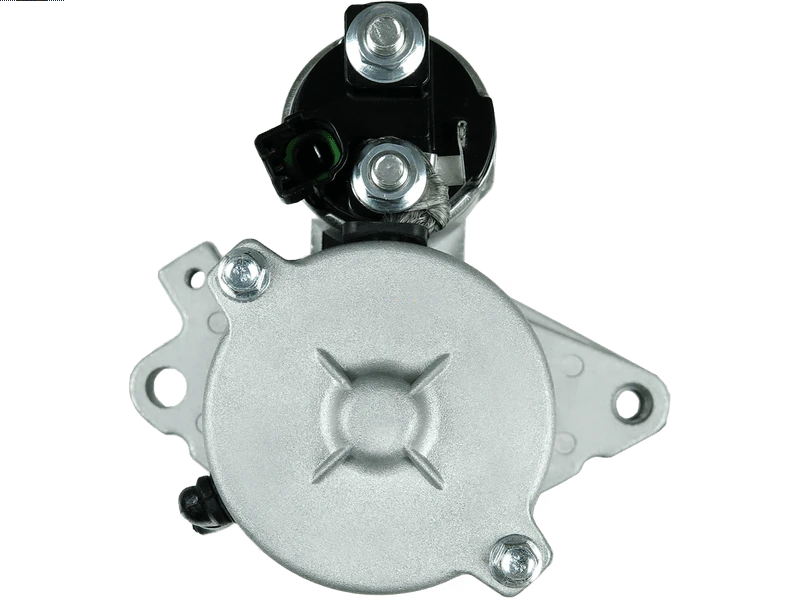

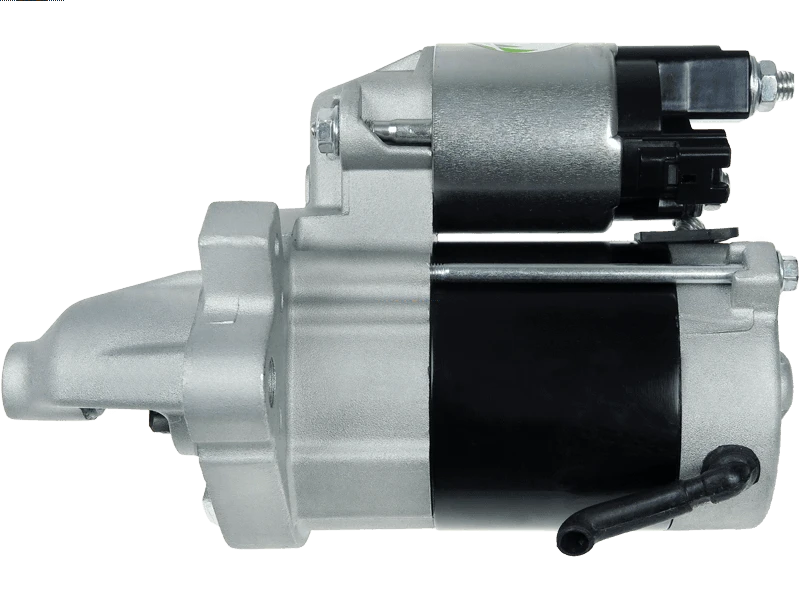

S6220S - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.8 kW
Length (L.1)	205 mm
Mount Hole Center - Center (O.1)	130 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	8 qty
Pinion at Rest (B)	24 mm
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
TOYOTA	Yaris 1.0	[1KR-FE]	12.2010-
TOYOTA	Yaris 1.0 BiFuel	[1KR-FE]	01.2006-
TOYOTA	Yaris 1.0 GPL	[1KR-FE]	01.2006-12.2011
TOYOTA	Yaris 1.0 VVT-i	[1KR-FE]	08.2005-12.2011

Alternatives >>>

S3023 Valeo Style option

Reference Information

DS1947 190.914.082.050 20432323BN S6220S STR6189 20432323OE PRSS682 CS1490 STR70380 190.914.082.415 28100-40090 CST40323GS 28100-40091 000986025640 28100-0Q030 28100-0Q031 STRS682 LRS02592 F000AL0321 J5212129 190.914.082.260 88214349 000F000AL0321 9626 6040323.1 5040222 DSN988 S12DE0423A2 986025640 255243 28100-0Q080 28100-0Q081 DRS0837 428000-3471 428000-3472 6040323 428000-3470 S12DE0423 CST40323AS 28100-40071 LRS2592 STN1490 28100-40070 220723 DENDSN988 255243M 115524 255243D 428000-8631 UD13040S 428000-8630 25-4265
