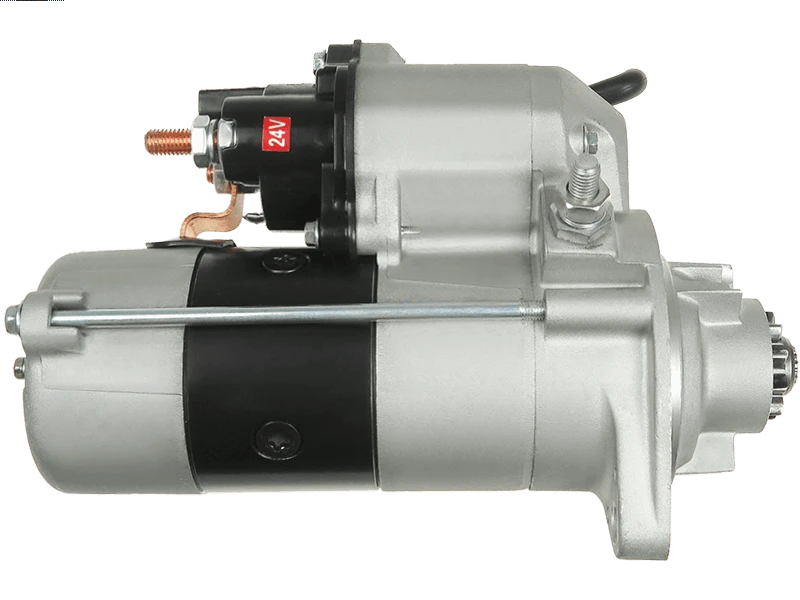

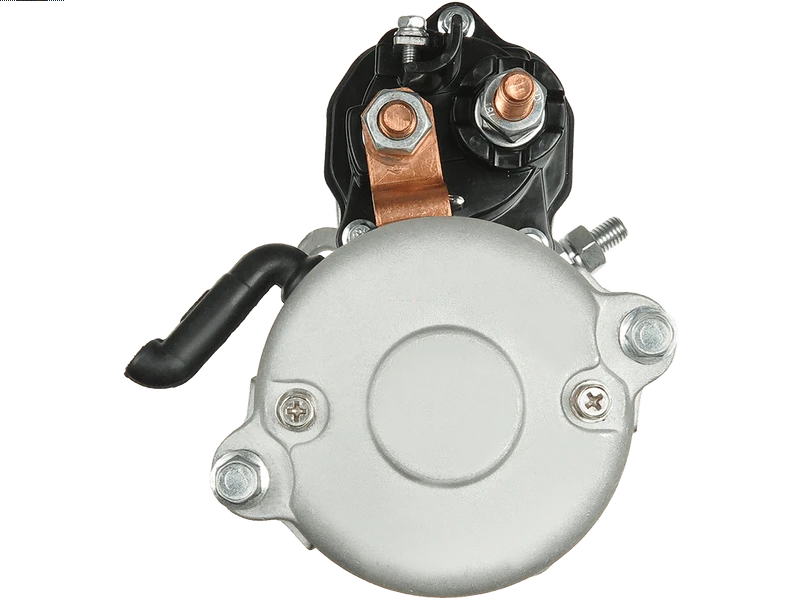

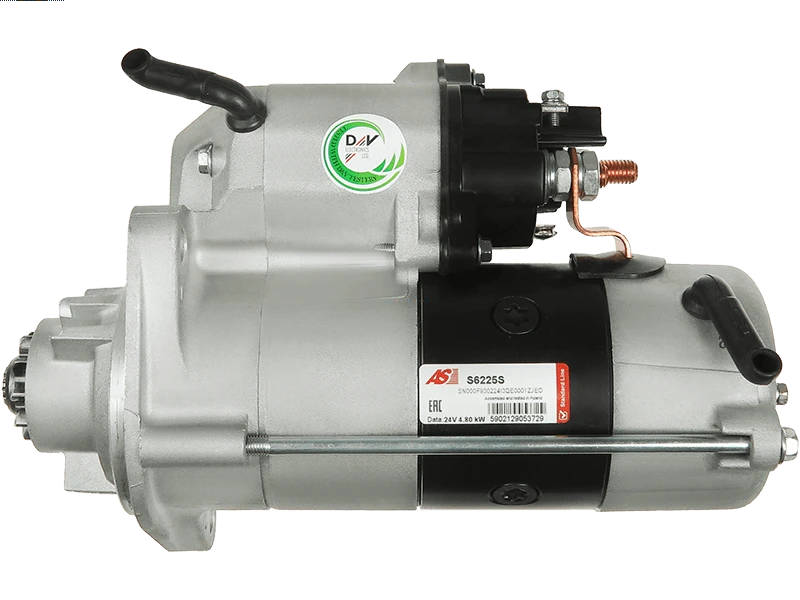

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 541.79 including GST
NZ$ 471.12 excluding GST
or four payments of $135.45
with
Learn More
each
S6225S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
428000-7100Associated Numbers
190-90114 255455 255455C 428000-7100 4996707 6040639 701.514.103 CST40639 CST40639AS CST40639ES CST40639GS CST40639OS CST40639RS DEN438000-0060 S-80572 S6225S STN4996 STR70415 UD90318S
438000-0060 70-8602
Specifications
| Kilowatt | 4.80 kW |
| Length (L.1) | 279 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | ISB 6.7 | ||
| DOOSAN | DX140LCR 4.5 | [QSB] | 01.2008-12.2013 |
| DYNAPAC | CC4000 3.8 | [QSF] | 01.2019-12.2023 |
| DYNAPAC | CC4000C 3.8 | [QSF] | 01.2019-12.2023 |
| DYNAPAC | CC4200 3.8 | [QSF] | 01.2019-12.2023 |
| DYNAPAC | CC4200 4.5 | [QSB] | 01.2019-12.2023 |
| DYNAPAC | CC4200C 3.8 | [QSF] | 01.2020-12.2023 |
| DYNAPAC | CC5200 3.8 | [QSF] | 01.2019-12.2023 |
| DYNAPAC | CC5200 4.5 | [QSB] | 01.2019-12.2023 |
| DYNAPAC | CC5200C 3.8 | [QSF] | 01.2019-12.2023 |
| DYNAPAC | CC5200C 4.5 | [QSB] | 01.2019-12.2023 |
| DYNAPAC | CC6200 3.8 | [QSF] | 01.2019-12.2023 |
| DYNAPAC | CC6200 4.5 | [QSB] | 01.2019-12.2023 |
| JCB | 418 6.7 | [QSB] | 01.2014-12.2016 |
| JCB | 419 6.7 | [QSB] | 01.2017-12.2019 |
| JCB | 427 6.7 | [QSB] | 01.2011-12.2019 |
| JCB | 435 6.7 | [QSB] | 01.2012-12.2019 |
| JCB | 437 6.7 | [QSB] | 01.2011-12.2019 |
| JCB | 457 6.7 | [QSB] | 01.2019-12.2019 |
| KOMATSU | PW160-7 3.9 | [SAA4D102E] | 01.2004-12.2013 |
Reference Information
| 10040639AV | ITAB AUTOMOTIVE |
| 10040639OV | ITAB AUTOMOTIVE |
| 107816 | FARCOM |
| 116513 | CARGO |
| 19085010 | DELCO |
| 190-90114 | ROBERT'S |
| 190-90114NOE | ROBERT'S |
| 20432936BN | REAL |
| 20432936OE | REAL |
| 255455 | KUHNER |
| 255455D | KUHNER |
| 255455R | KUHNER |
| 336628 | LOGISTIK |
| 428000-7100 | DENSO |
| 428000-7101 | DENSO |
| 428000-7102 | DENSO |
| 438000-0060 | DENSO |
| 438000-0061 | DENSO |
| 4996707 | CUMMINS |
| 5140092 | MEAT & DORIA |
| 6040639.0 | SANDO |
| 6040639.1 | SANDO |
| 701.514.103.050 | PSH |
| 701.514.103.261 | PSH |
| 8939 | CEVAM |
| 91-29-5962 | WILSON |
| CST40639AS | CASCO |
| CST40639GS | CASCO |
| DSN2091 | DENSO |
| F032116513 | CARGO |
| MAV426390A | SIOM |
| S102267 | BTS TURBO |
| S103118 | BTS TURBO |
| S24DE0002A2 | SIDAT |
| S5023ND | PRESTOLITE |
| S6225S | AS-PL |
| SDN639 | AUTOTEAM |
| SDN639A | AUTOTEAM |
| STN4996 | KRAUF |
| STR6545 | ELECTROLOG |
| STR6546 | ELECTROLOG |
| STR70415 | WOODAUTO |
| STRJ477 | 3EFFE |
| TT16595 | TESLA TECHNICS |
| UD90318S | AS-PL |
| WG1920201 | WILMINK GROUP |
| WOOSTR70415 | WOODAUTO |
Video/Publications
