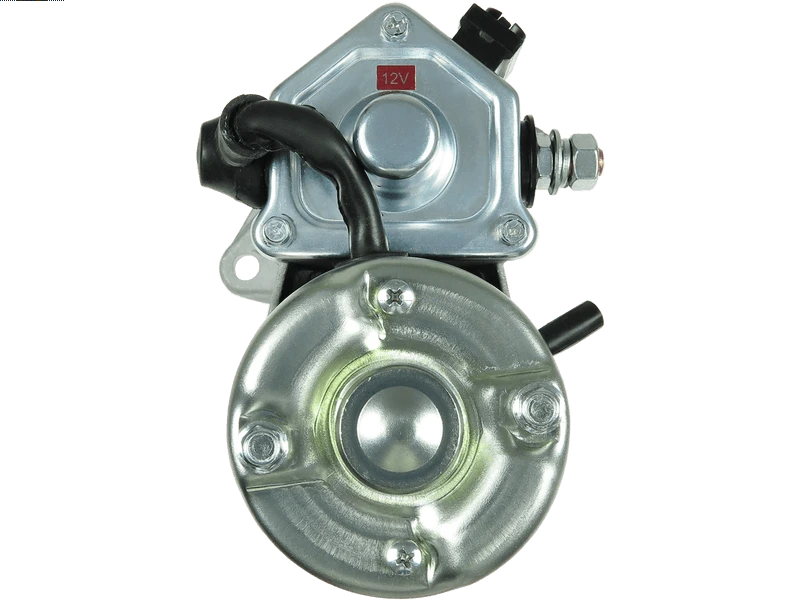

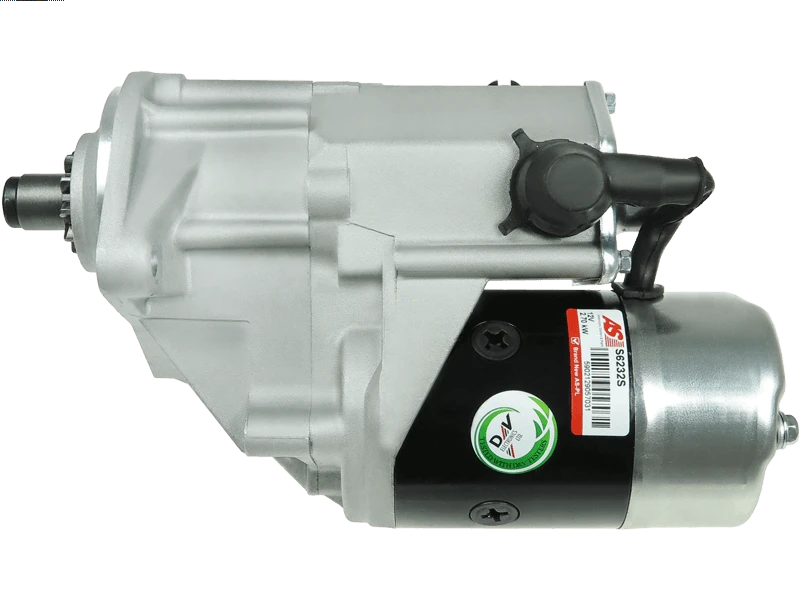

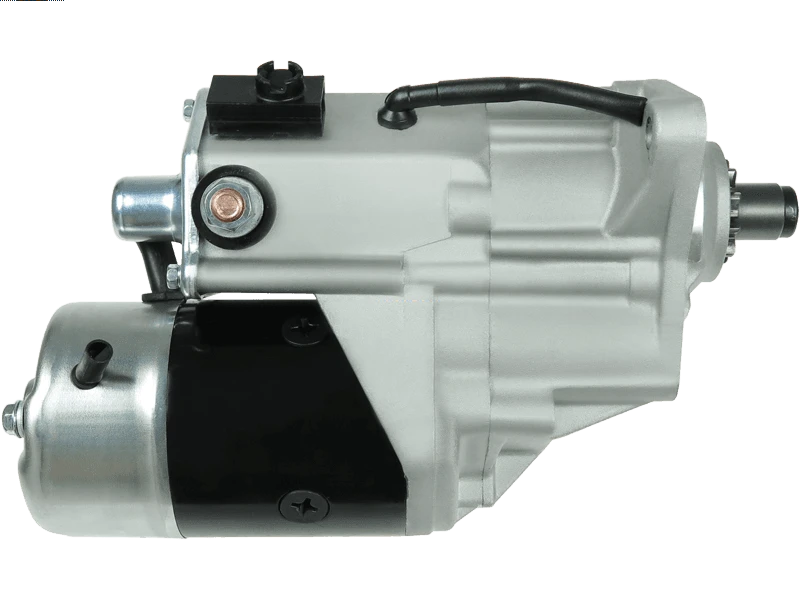

S6232S - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.7 kW
Length (L.1)	296 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	27 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DENSO
Voltage	12 V
Wet Clutch	Yes

Vehicle Applications

Make	Model	Type	Year
CASE	420	[FPT432T]	01.2008-12.2012
CASE	420CT	[FPT432T]	01.2008-12.2012
CASE	430	[FPT432T]	01.2005-12.2012
CASE	435	[FPT432T]	01.2004-12.2015
CASE	440	[445T/M2]	01.2005-12.2012
CASE	440 CT	[445T/M2]	01.2006-12.2012
CASE	445	[FPT432T]	01.2005-12.2012
CASE	445 CT	[FPT432T]	01.2005-12.2012
CASE	450	[445T/M2]	01.2005-12.2012
CASE	450 CT	[445T/M2]	01.2005-12.2012
CASE	465	[445T/M2]	01.2005-12.2012
CASE	580	[445T/M2]	01.2001-12.2007
CASE	580 Super R	[445TA/EG]	01.2006-12.2008
CASE	581	[445T/M2]	01.2001-12.2007
CASE	590	[445T/M2]	01.2001-12.2007
CASE	695 ST	[FPT434T/E]	01.2006-
NEW HOLLAND	B110	[445T/M2]	01.2006-12.2008
NEW HOLLAND	B115	[445T/M2]	01.2006-12.2008
NEW HOLLAND	B115B	[445T/M2]	01.2008-
NEW HOLLAND	B95	[445T/M2]	01.2006-12.2008
NEW HOLLAND	B95BLR	[445T/M2]	01.2008-
NEW HOLLAND	C185	[FPTF5C]	01.2006-12.2012
NEW HOLLAND	C190	[445T/M2]	01.2006-12.2012

Reference Information

CST40331ES S-8269 CST40331GS 91-29-5810 8137 114224 STN9224 CST40331OS 428000-1690 428000-1691 S6232S 19614R 590.560.102 5040574 25-4472 STR70320 LRS3799 S12DE0371A2 STN4224SU 19614N STN4224EC STR6676 336539 86992395 254483 CST40331RS CST40331 LRS03799 STN3224 UD14226S 6040331 246-25148 CST40331AS

Video/Publications

114224 19614N 19614R 246-25148 25-4472 254483 428000-1690 428000-1691 590.560.102 6040331 8137 86992395 91-29-5810 CST40331 CST40331AS CST40331ES CST40331GS CST40331OS CST40331RS LRS03799 LRS3799 S-8269 S6232S STN3224 STN4224EC STN4224SU STN9224 STR70320 UD14226S
