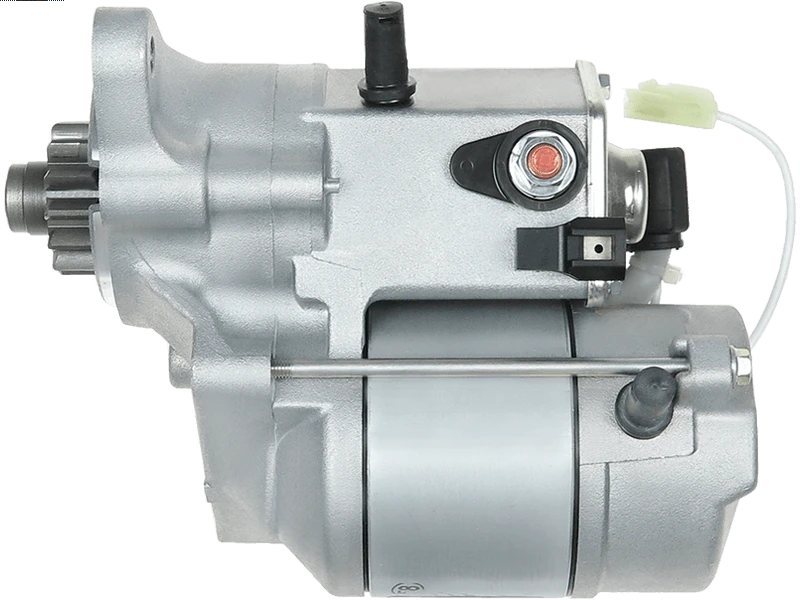

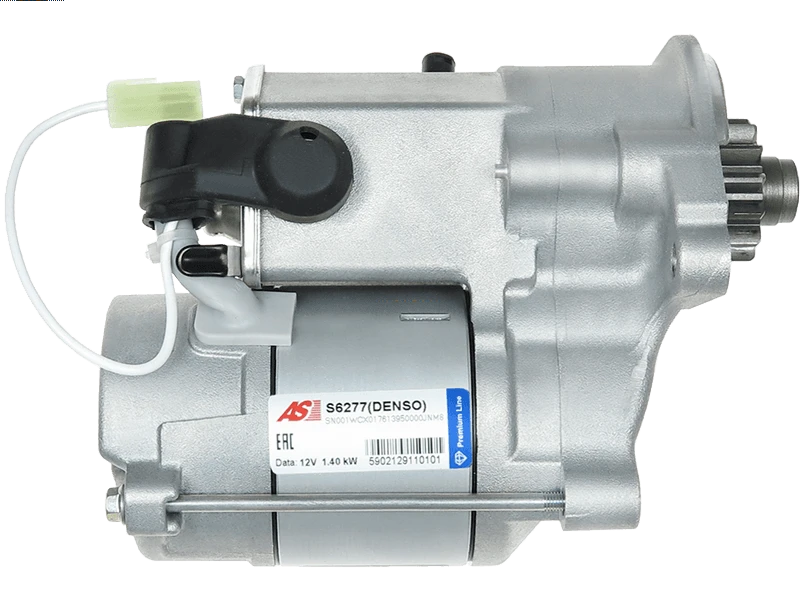

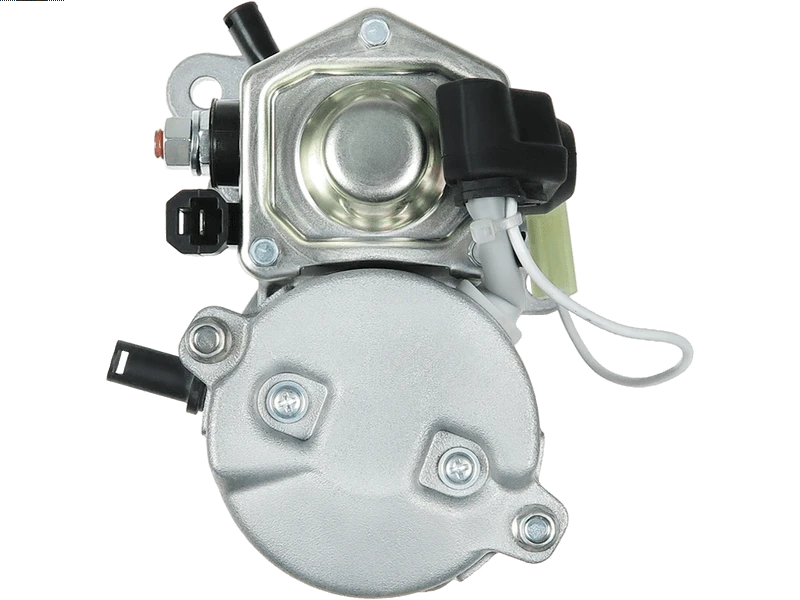

S6277(DENSO) - Brand new OEM DENSO Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	188 mm
Mount Hole Center - Center (O.1)	110 mm
Mount Hole Diameter (C.1)	9.5 mm
Mount Hole Diameter (C.2)	9.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	13 qty
Pinion at Rest (B)	18 mm
Rotation	CW
Spigot Diameter (A)	68 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AVANT	640 1.5	[V1505]	01.2015-
AVANT	R35 1.5	[V1505]	01.2015-
BELOS	Trans Pro 3440 1.1	[D1105-T]	01.2008-
MUSTANG	2012 1.1	[D1105]	01.2007-
RANSOMES	HR330T 1.1	[D1105-T]	01.2008-
SCHAFFER	2028 1.1	[D1105]	01.2010-
SCHAFFER	222S 1.1	[D1105]	01.2008-
SCHAFFER	2336 1.5	[V1505]	01.2008-
SCHAFFER	2345T 1.5	[V1505-T]	01.2016-
SCHAFFER	3033S 1.5	[V1505-T]	01.2004-
SCHAFFER	3046 1.5	[V1505-T]	01.2007-
SCHAFFER	Comfort 45 1.5	[V1505-T]	01.2004-
SCHAFFER	Nordic 50 HD 1.5	[V1505-T]	01.2016-
SCHAFFER	Plus PRO 46 1.5	[V1505-T]	01.2006-

Reference Information

PRSL252 690.520.132.051 CST40185AS S-80078 254151 K756161810 K756161811 20432581OE K757196810 17423-63012 6040185 7770002602 25-3480 6040185.1 20432581BN K7711968000 690.520.132.260 K771161800 LRS2308 AET0908 228000-6320 228000-6321 K771196810 MAV421850 DSN2087 16235-63012 254151D STR6112 228080-6321 246-15101 UD810221(DENSO)S 16235-63010 16235-63011 STRL252 LRS02308 STR30058 CST40185GS K757196800

Video/Publications

228000-6321 228000-6320 CST40185GS CST40185AS AET0908 UD810221(DENSO)S STRL252 PRSL252 228080-6321 DSN2087 246-15101 S-80078 25-3480 16235-63010 16235-63011 16235-63012 17423-63012 254151 254151D LRS02308 LRS2308 690.520.132.051 690.520.132.260 20432581BN 20432581OE 6040185.0 6040185.1 MAV421850 STR30058
