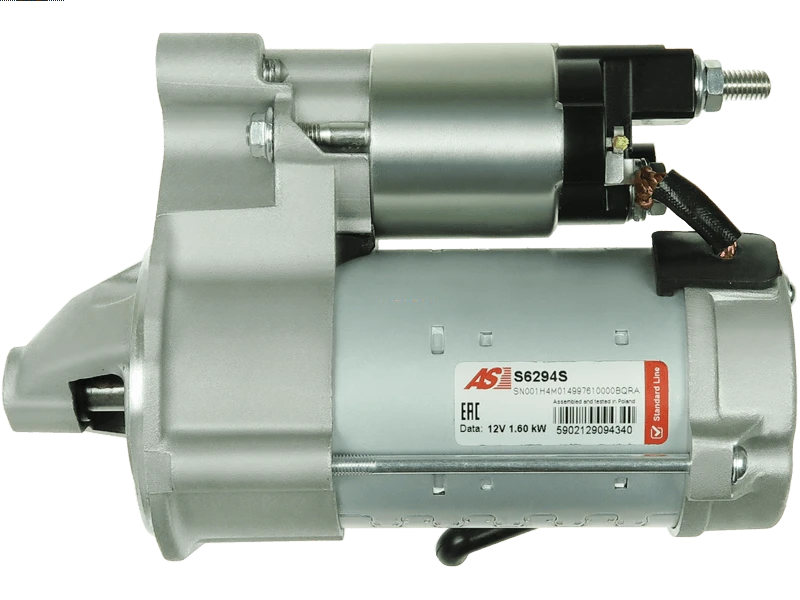

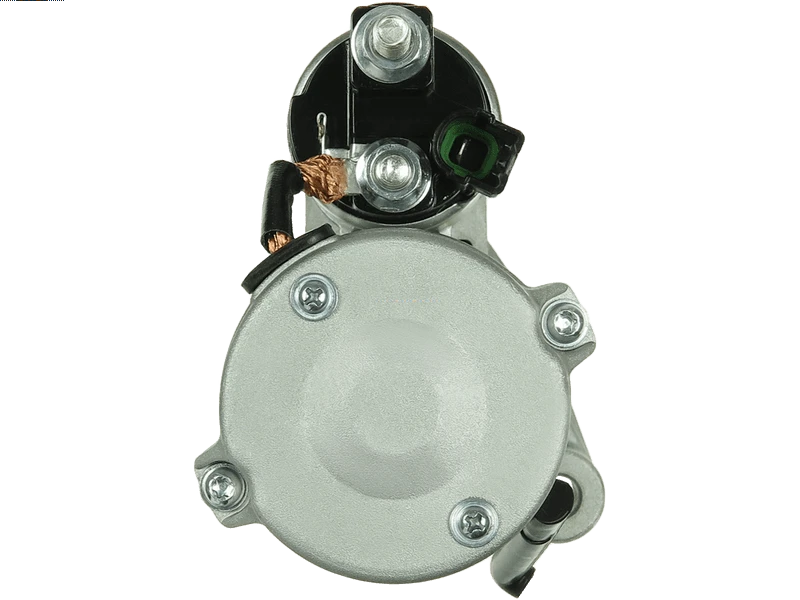

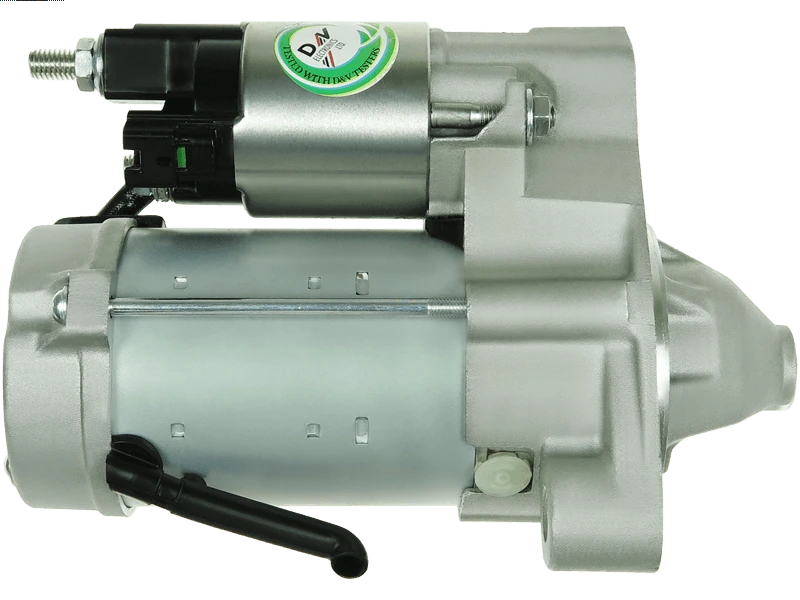

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 368.76 including GST
NZ$ 320.66 excluding GST
or four payments of $92.19
with
Learn More
each
S6294S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
438000-2660Associated Numbers
438000-2660 89824822712 DRS1278 STN1541 UD15217SSpecifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 195.50 mm |
| Mount Hole Center - Center (O.1) | 123 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M12x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | D-Max 1.9 Ddi | [RZ4E-TC] | 03.2017- |
| ISUZU | D-Max 1.9 Ddi 4x4 | [RZ4E-TC] | 03.2017- |
Reference Information
| 130.402.092.050 | PSH |
| 20432895BN | REAL |
| 31025N | WAI / TRANSPO |
| 438000-2660 | DENSO |
| 6040598.0 | SANDO |
| 89824822712 | ISUZU |
| 8982482712 | ISUZU |
| CST40598AS | CASCO |
| DRS1278 | DELCO |
| MAV425980A | SIOM |
| S130.046 | PSH |
| STN1541 | KRAUF |
| UD104424S | AS-PL |
| UD15217S | AS-PL |
Video/Publications
