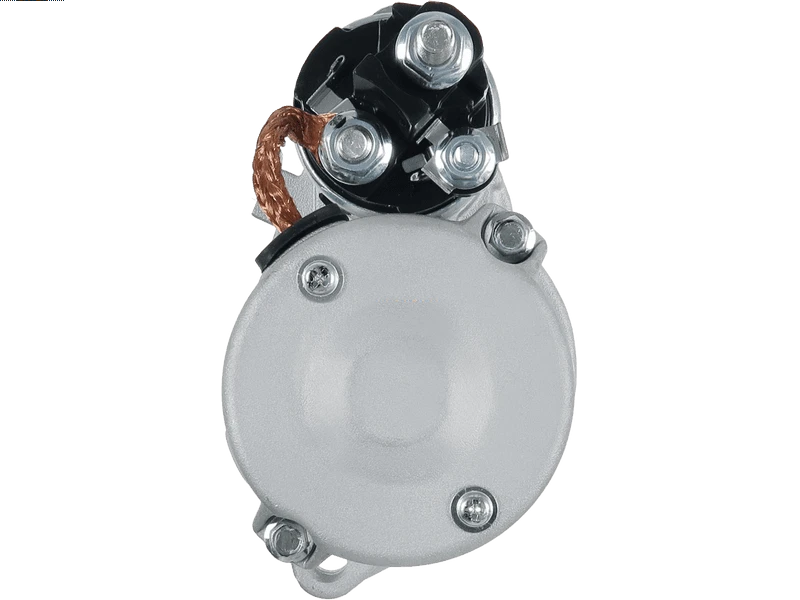

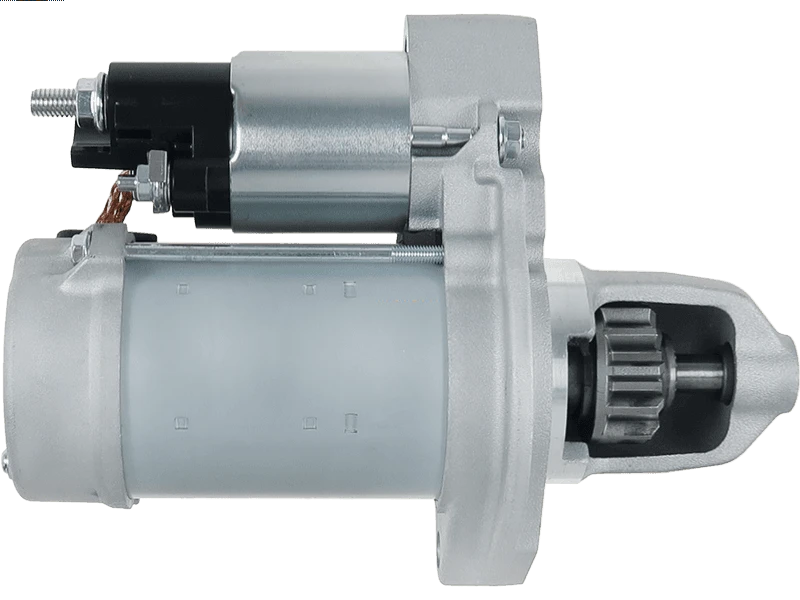

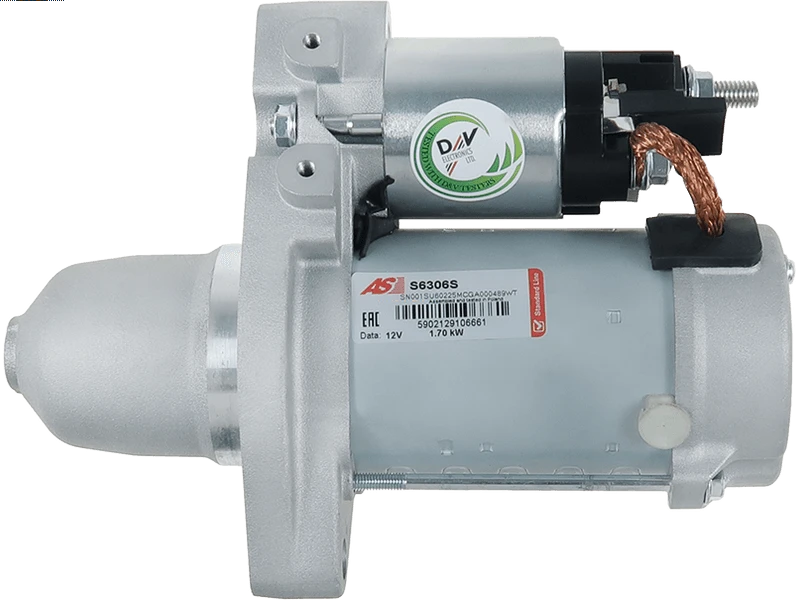

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 416.75 including GST
NZ$ 362.39 excluding GST
or four payments of $104.19
with
Learn More
each
S6306S
3
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
438000-1530Associated Numbers
16432-OS 20432644 25-5128 255593D 3259 438000-1530 438000-1531 840.512.113 AEY3966 C2D36864 CST40446 CST40446AS CST40446ES CST40446GS CST40446OS CST40446RS DENDSN1410 DRS1139 DS2249 DSN1410 FW93-11001-AB FW93-11001-AC GX73-11001-EB GX73-11001-EC LRS03966 STN1532 T2H3246 UD20558SSpecifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 215 mm |
| Mount Hole Center - Center (O.1) | 142 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 34 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 62 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | F-Pace 3.0 AWD | [306PS] | 09.2015- |
| JAGUAR | F-Type 3.0 | [306PS] | 10.2012- |
| JAGUAR | F-Type 3.0 | [306PS] | 10.2013- |
| JAGUAR | F-Type 3.0 S | [306PS] | 10.2012- |
| JAGUAR | F-Type 3.0 S | [306PS] | 10.2013- |
| JAGUAR | F-Type 3.0 S AWD | [306PS] | 12.2014- |
| JAGUAR | F-Type 5.0 R | [508PS] | 10.2013- |
| JAGUAR | F-Type 5.0 R AWD | [508PS] | 12.2014- |
| JAGUAR | F-Type 5.0 S | [508PS] | 10.2012- |
| JAGUAR | F-Type 5.0 SVR | [508PS] | 12.2015- |
| JAGUAR | XE 3.0 S | [306PS] | 03.2015- |
| JAGUAR | XF 3.0 | [306PS] | 05.2015- |
| JAGUAR | XF 3.0 AWD | [306PS] | 07.2015- |
| JAGUAR | XJ 3.0 | [306PS] | 03.2012- |
| JAGUAR | XJ 3.0 AWD | [306PS] | 10.2012- |
| JAGUAR | XJ 5.0 V8 | [508PS] | 06.2013- |
| JAGUAR | XJ 5.0 V8 | [508PS] | 10.2009- |
Reference Information
| 16432-OS | WAI / TRANSPO |
| 20432644 | REAL |
| 25-5128 | ELSTOCK |
| 255593D | KUHNER |
| 3259 | CEVAM |
| 438000-1530 | DENSO |
| 438000-1531 | DENSO |
| 840.512.113 | PSH |
| AEY3966 | AUTOELECTRO |
| C2D36864 | JAGUAR |
| CST40446 | CASCO |
| CST40446AS | CASCO |
| CST40446ES | CASCO |
| CST40446GS | CASCO |
| CST40446OS | CASCO |
| CST40446RS | CASCO |
| DENDSN1410 | WOODAUTO |
| DRS1139 | DELCO |
| DS2249 | DELCO |
| DSN1410 | DENSO |
| FW93-11001-AB | JAGUAR |
| FW93-11001-AC | JAGUAR |
| GX73-11001-EB | JAGUAR |
| GX73-11001-EC | JAGUAR |
| LRS03966 | LUCAS |
| LRS3966 | LUCAS |
| S135.760 | PSH |
| STN1532 | KRAUF |
| T2H3246 | JAGUAR |
| UD102766S | AS-PL |
| UD20558S | AS-PL |
Video/Publications
