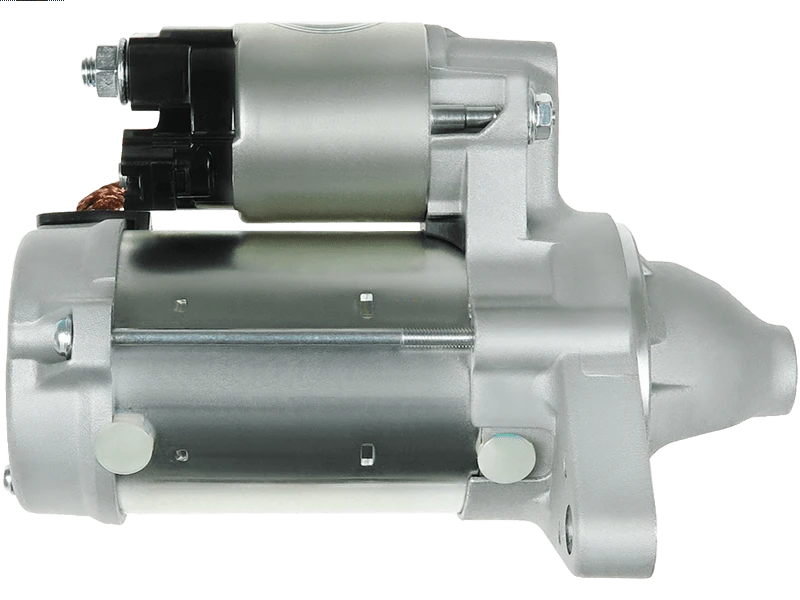

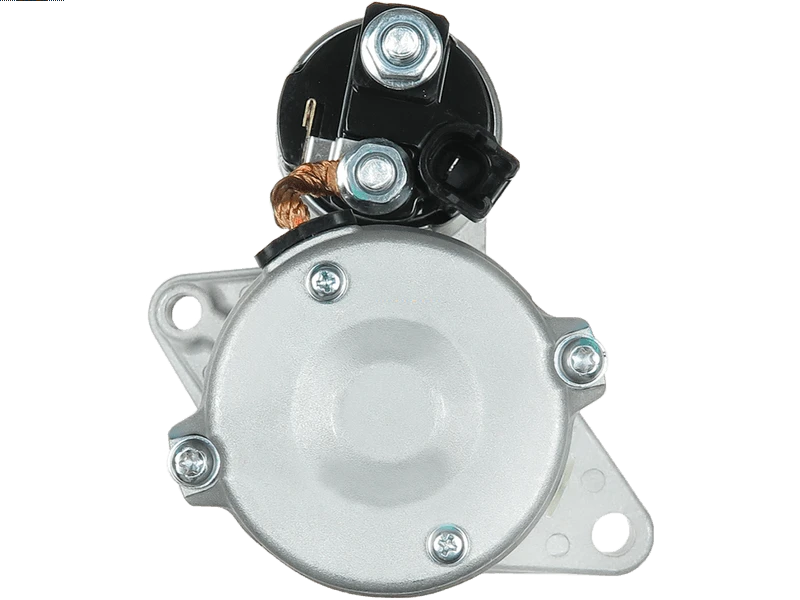

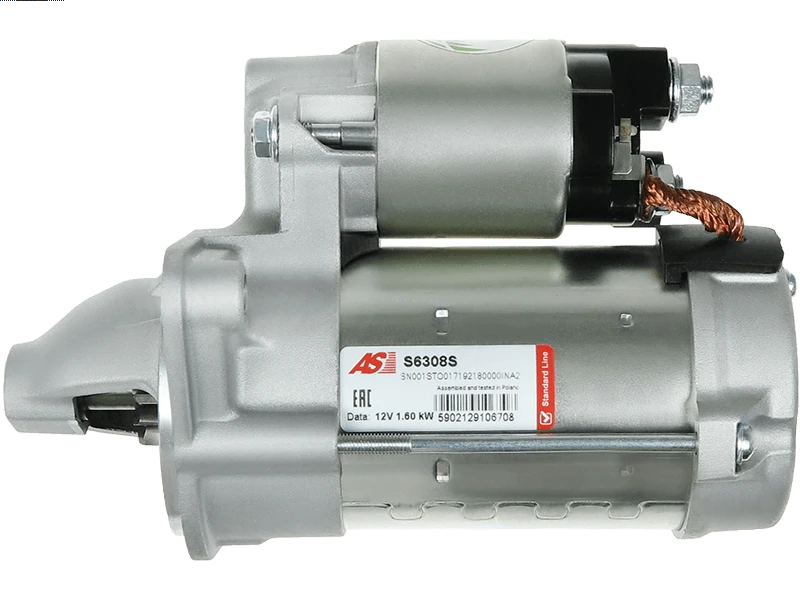

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 403.98 including GST
NZ$ 351.29 excluding GST
or four payments of $101.00
with
Learn More
each
S6308S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
428000-4290Associated Numbers
0986CR1630 0986UR1630 19049N 28100-0M070 28100-0T020 28100-0T050 28100-0T051 28100-37050 28100-37051 28100-37052 28100-57050 428000-1180 428000-4290 428000-4300 428000-4590 428000-5030 428000-5031 428000-9820 428000-9830 88975514 SG0528 STM4590 STN4590 UD20540SSpecifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 196 mm |
| Mount Hole Center - Center (O.1) | 122 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PONTIAC | Vibe 1.8 | 01.2009- | |
| TOYOTA | Corolla 1.8 | 01.2009- | |
| TOYOTA | Matrix 1.8 | 01.2009- |
Reference Information
| 0986CR1630 | BOSCH |
| 0986UR1630 | BOSCH |
| 19049N | WAI / TRANSPO |
| 28100-0M070 | TOYOTA |
| 28100-0T020 | TOYOTA |
| 28100-0T050 | TOYOTA |
| 28100-0T051 | TOYOTA |
| 28100-37050 | TOYOTA |
| 28100-37051 | TOYOTA |
| 28100-37052 | TOYOTA |
| 28100-57050 | TOYOTA |
| 428000-1180 | DENSO |
| 428000-4290 | DENSO |
| 428000-4300 | DENSO |
| 428000-4590 | DENSO |
| 428000-5030 | DENSO |
| 428000-5031 | DENSO |
| 428000-9820 | DENSO |
| 428000-9830 | DENSO |
| 88975514 | OPEL |
| SG0528 | GHIBAUDI |
| STM4590 | KRAUF |
| STN4590 | KRAUF |
| STX210246 | STARDAX |
| STX210246R | STARDAX |
| UD20540S | AS-PL |
