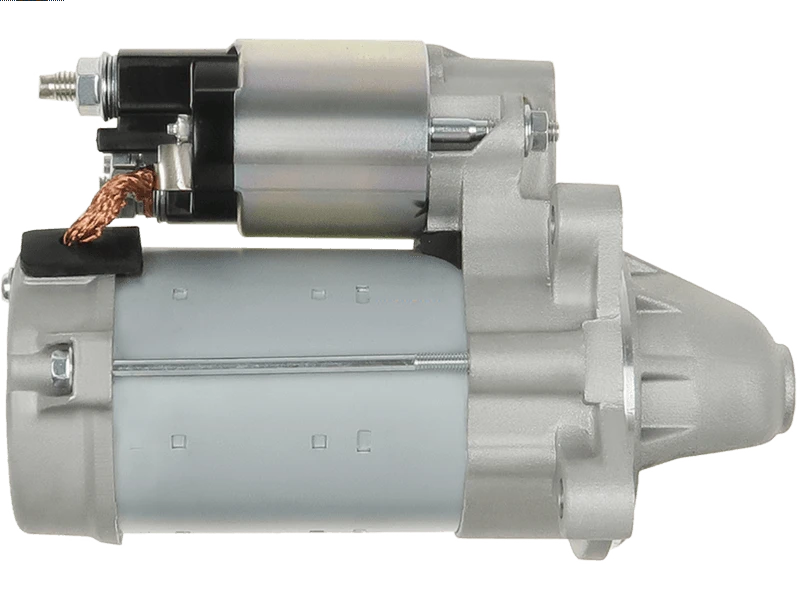

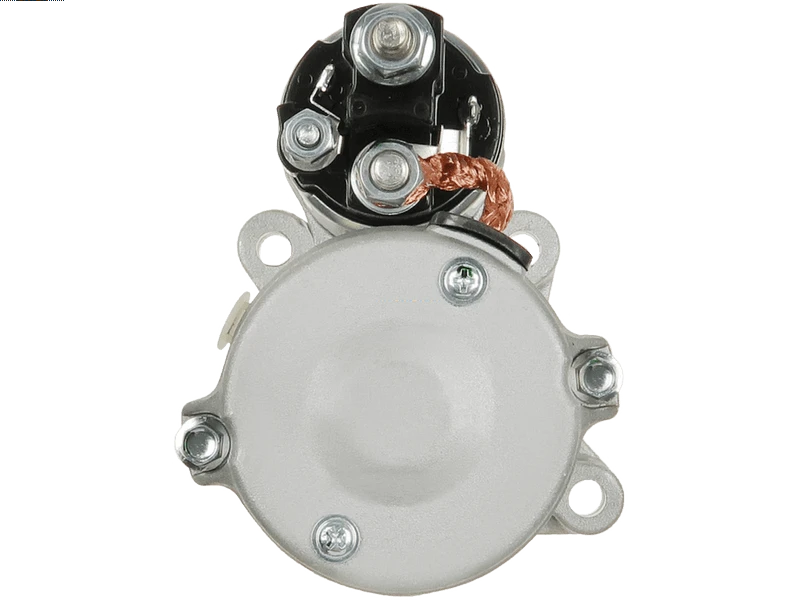

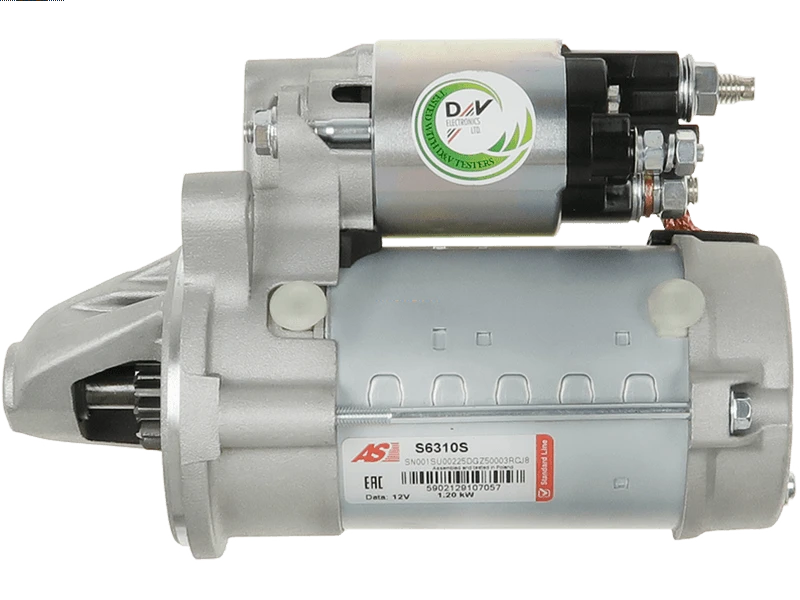

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 344.66 including GST
NZ$ 299.70 excluding GST
or four payments of $86.17
with
Learn More
each
S6310S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
438000-0410Associated Numbers
19247N 246-13103 438000-0410 590.403.123 91-29-5852 DL3T11000AA DL3T11000BA DL3Z11002A DL3Z11002AFC DL3Z11002B DL3Z11002C S-80543 UD20552SSpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 197 mm |
| Mount Hole Center - Center (O.1) | 101.50 mm |
| Mount Hole Center - Center (O.2) | 65.50 mm |
| Mount Hole Center - Center (O.3) | 63 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| Mount Hole Diameter (C.3) | 9.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 16.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | E-150 4.6 | 01.2013-12.2014 | |
| FORD | E-150 5.4 | 01.2013-12.2014 | |
| FORD | E-250 4.6 | 01.2013-12.2014 | |
| FORD | E-250 5.4 | 01.2013-12.2014 | |
| FORD | E-350 5.4 | 01.2012-12.2015 | |
| FORD | E-350 5.4 | 01.2013-12.2016 | |
| FORD | E-350 6.8 | 01.2012-12.2015 | |
| FORD | E-350 6.8 | 01.2013-12.2018 | |
| FORD | Econoline 4.6 | 01.2013-12.2014 | |
| FORD | Econoline 5.4 | 01.2013-12.2014 | |
| FORD | Expedition 5.4 | 01.2013-12.2014 | |
| FORD | F-150 3.5 | 01.2013-12.2015 | |
| FORD | F-150 5.0 | 01.2013-12.2015 | |
| FORD | F-150 5.0 | 01.2013-12.2017 | |
| FORD | F-150 6.2 | 01.2013-12.2014 | |
| FORD | F-250 6.2 | 01.2013-12.2015 | |
| FORD | F-250 6.2 | 01.2013-12.2018 | |
| FORD | F-350 6.2 | 01.2012-12.2014 | |
| FORD | F-350 6.2 | 01.2012-12.2018 | |
| FORD | F-450 5.4 | 01.2013-12.2014 | |
| FORD | F-450 6.8 | 01.2013-12.2014 | |
| FORD | F-550 6.8 | 01.2013-12.2014 | |
| LINCOLN | Navigator 5.4 | 01.2013-12.2014 |
Reference Information
| 19247N | WAI / TRANSPO |
| 246-13103 | DIXIE |
| 438000-0410 | DENSO |
| 590.403.123 | PSH |
| 91-29-5852 | WILSON |
| DL3T11000AA | FORD |
| DL3T11000BA | FORD |
| DL3Z11002A | FORD |
| DL3Z11002AFC | FORD |
| DL3Z11002B | FORD |
| DL3Z11002C | FORD |
| S6310S | AS-PL |
| S-80543 | DIXIE |
| SA1026 | FORD |
| UD20552S | AS-PL |
Video/Publications
