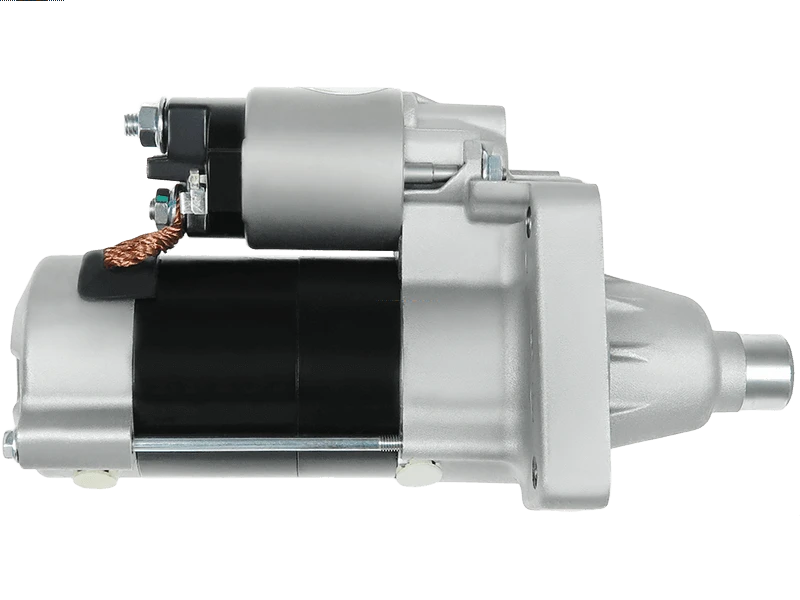

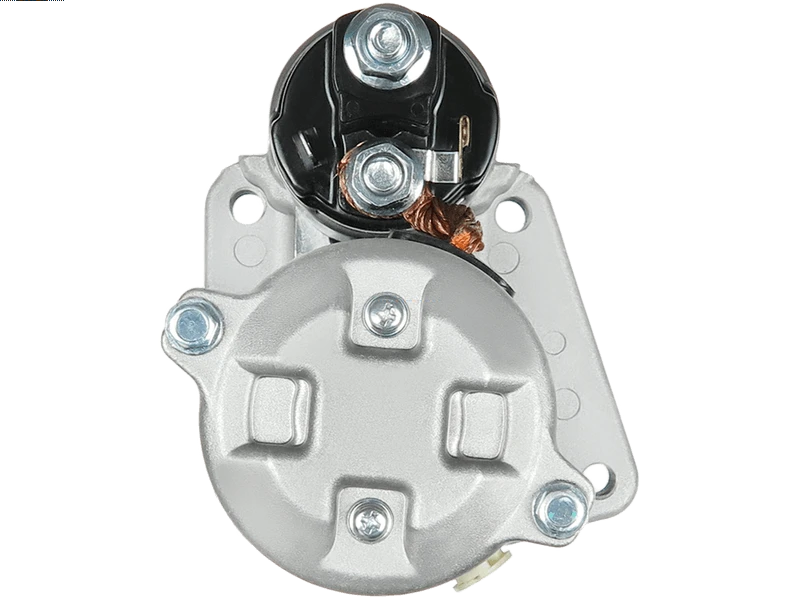

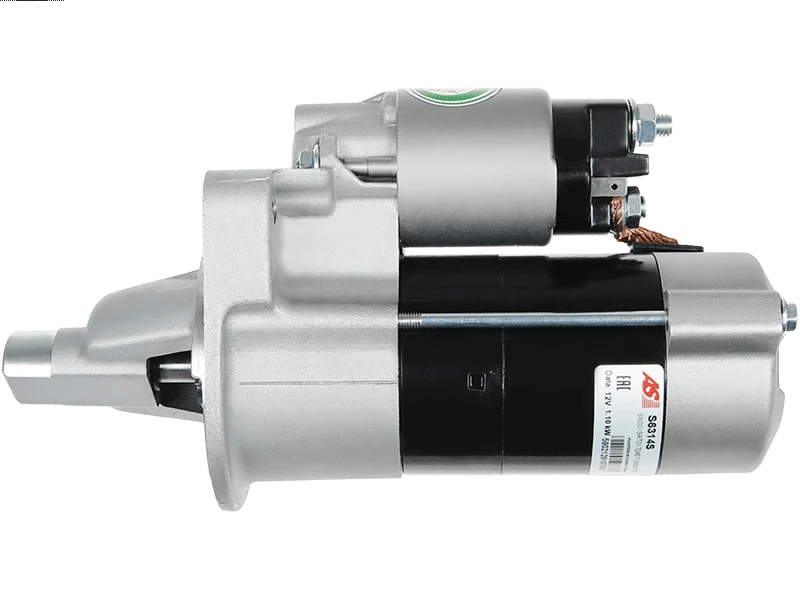

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 319.10 including GST
NZ$ 277.48 excluding GST
or four payments of $79.78
with
Learn More
UOM:
each
Product Code:
S6314S
Quantity In Stock Nationally
1 in stock nationally
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
428000-3070Associated Numbers
04748046AA 04748046AB 04748046AC 04801850AA 17949N 17949R 20432355 25-5104 256101 428000-3070 428000-3071 428000-3072 428000-6640 428000-6641 4748046AA 4748046AB 4748046AC 4801850AA 6040553 7B0911023 830.915.103 91-29-5664 CST40553 CST40553AS CST40553ES CST40553GS CST40553OS CST40553RS K04748046AA K04748046AB K04748046AC K04801850AA LRS03942 S-80395 STN6640 UD20506SSpecifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 237 mm |
| Mount Hole Center - Center (O.1) | 113 mm |
| Mount Hole Center - Center (O.2) | 71 mm |
| Mount Hole Center - Center (O.3) | 67.50 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Grand Voyager 3.3 | [EGA] | 01.2000-12.2007 |
| CHRYSLER | Grand Voyager V 3.3 | [EGV] | 01.2008- |
| CHRYSLER | Grand Voyager V 3.8 | [EGH] | 01.2007- |
| CHRYSLER | Grand Voyager V 3.8 | [EGL] | 01.2007- |
| CHRYSLER | GRAND VOYAGER V (RT) 3.3 | EGV | 01.2008- |
| CHRYSLER | GRAND VOYAGER V (RT) 3.8 | EGL | 10.2007- |
| CHRYSLER | Voyager 3.3 | [EGA] | 01.2000-12.2007 |
| CHRYSLER | VOYAGER IV (RG, RS) 3.3 | EGA | 02.2000-12.2008 |
| CHRYSLER | VOYAGER IV (RG, RS) 3.3 | EGM | 02.2000-12.2008 |
| CHRYSLER | VOYAGER IV (RG, RS) 3.3 AWD | EGA | 02.2000-12.2008 |
| DODGE | Caravan 3.3 | [EGM] | 01.2007- |
| DODGE | NITRO 3.7 | EKG | 09.2006-12.2012 |
| DODGE | NITRO 3.7 4WD | EKG | 09.2006-12.2012 |
| DODGE | NITRO 3.7 V6 4WD | EKG | 06.2007-12.2012 |
| JEEP | Wrangler 3.8 | [EGT] | 01.2007- |
| JEEP | WRANGLER III (JK) 3.8 | EGT | 04.2007- |
| JEEP | WRANGLER III (JK) 3.8 | EGT | 04.2007-12.2011 |
| JEEP | WRANGLER III (JK) 3.8 RWD | EGT | 10.2007-09.2010 |
Reference Information
| 04748046AA | CHRYSLER |
| 04748046AB | CHRYSLER |
| 04748046AC | CHRYSLER |
| 04801850AA | CHRYSLER |
| 17949N | WAI |
| 17949R | WAI |
| 20432355 | REAL |
| 25-5104 | ELSTOCK |
| 256101 | KUHNER |
| 336562 | LOGISTIK |
| 428000-3070 | DENSO |
| 428000-3071 | DENSO |
| 428000-3072 | DENSO |
| 428000-6640 | DENSO |
| 428000-6641 | DENSO |
| 4748046AA | CHRYSLER |
| 4748046AB | CHRYSLER |
| 4748046AC | CHRYSLER |
| 4801850AA | CHRYSLER |
| 6040553 | SANDO |
| 7B0911023 | VW |
| 830.915.103 | WAI |
| 830.915.103.460 | WAI |
| 91-29-5664 | WILSON |
| AM-2272 | AUTO MAGNETO |
| CST40553 | CASCO |
| CST40553AS | CASCO |
| CST40553ES | CASCO |
| CST40553GS | CASCO |
| CST40553OS | CASCO |
| CST40553RS | CASCO |
| K04748046AA | CHRYSLER |
| K04748046AB | CHRYSLER |
| K04748046AC | CHRYSLER |
| K04801850AA | CHRYSLER |
| LRS03942 | LUCAS |
| LRS3942 | LUCAS |
| R4801850AA | DODGE |
| S135.947 | WAI |
| S6314S | AS-PL |
| S-80395 | DIXIE |
| STN6640 | KRAUF |
| STR6672 | ELECTROLOG |
| STX200494 | STARDAX |
| UD20506S | AS-PL |
Video/Publications
