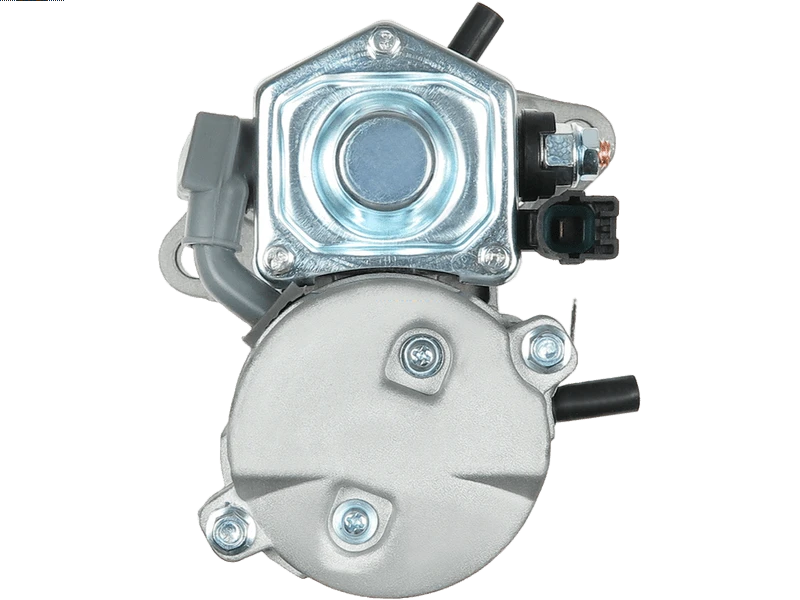

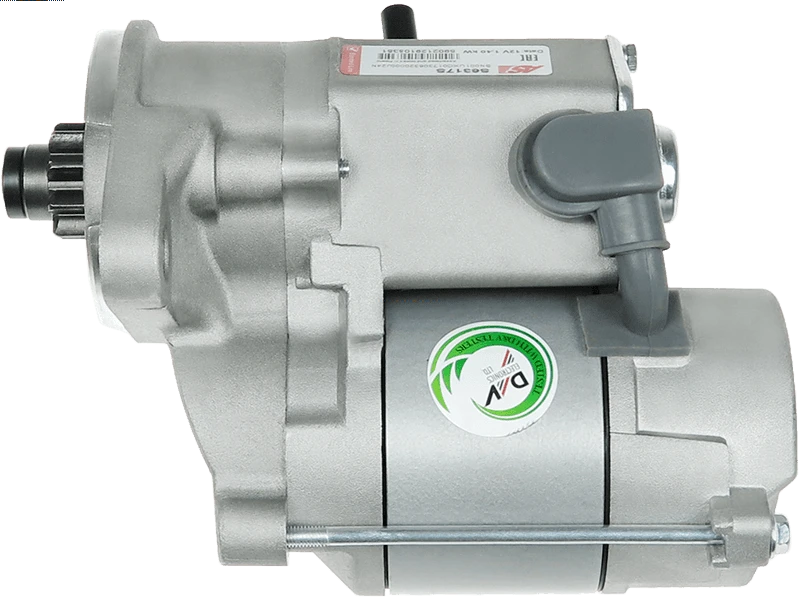

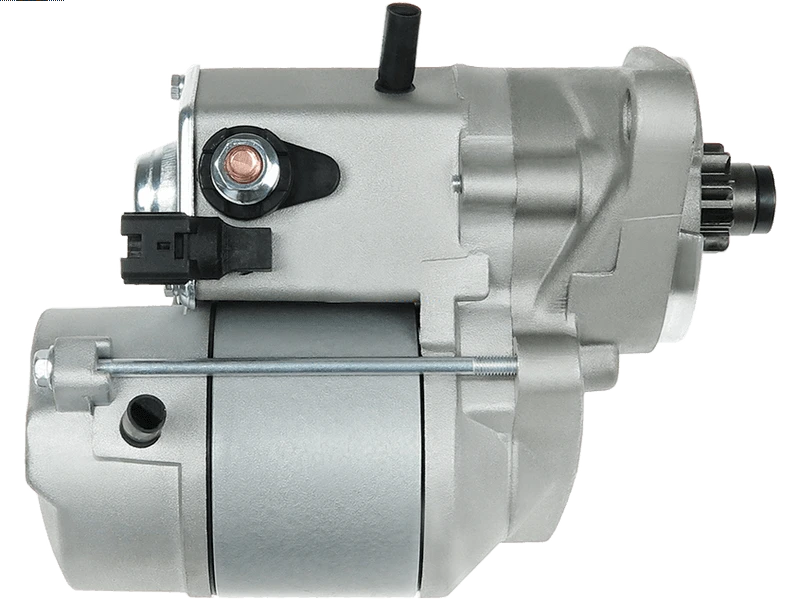

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 349.60 including GST
NZ$ 304.00 excluding GST
or four payments of $87.40
with
Learn More
each
S6157
S6317S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
113108 17493N 228000-2310 228000-2312 228000-2860 228000-2890 228000-2893 228000-3060 246-15107 25-3404 28100-08040 28100-35080 2810008040 281003509084 281003510084 DRS0589 LRS02233 S-8451 STN1144 STR70235 UD16847SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 188 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Hilux 2.4 | [22R] | 06.1989-07.2005 |
| TOYOTA | Hilux 2.4 | [22RE] | 06.1989-07.2005 |
| VW | Taro 2.4 | [22R] | 06.1989-03.1997 |
Reference Information
28100-08040 STR6500 228000-2890 228000-2310 228000-2893 228000-2312 28100-35080 228000-3060 25-3404 LRS02233 336494 17493N LRS2233 113108 S-8451 2810008040 28100-U2100-71 28100-35090 228000-2860 281003510084 UD16847S STR70235 STN1144 281003509084 DRS0589 STX200998 246-15107Video/Publications
