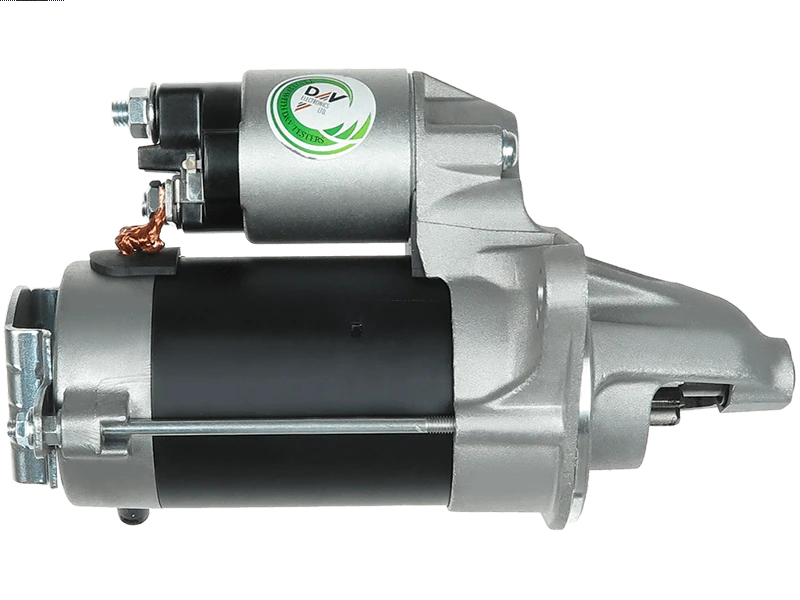

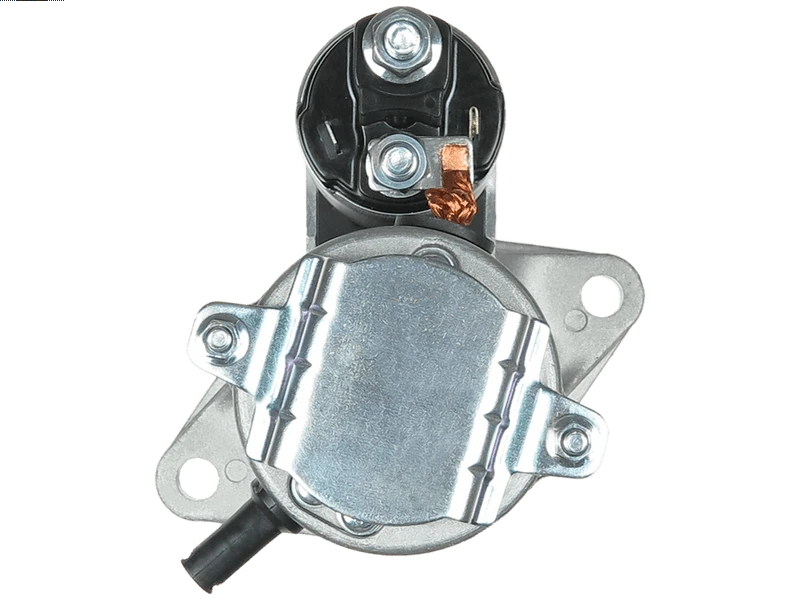

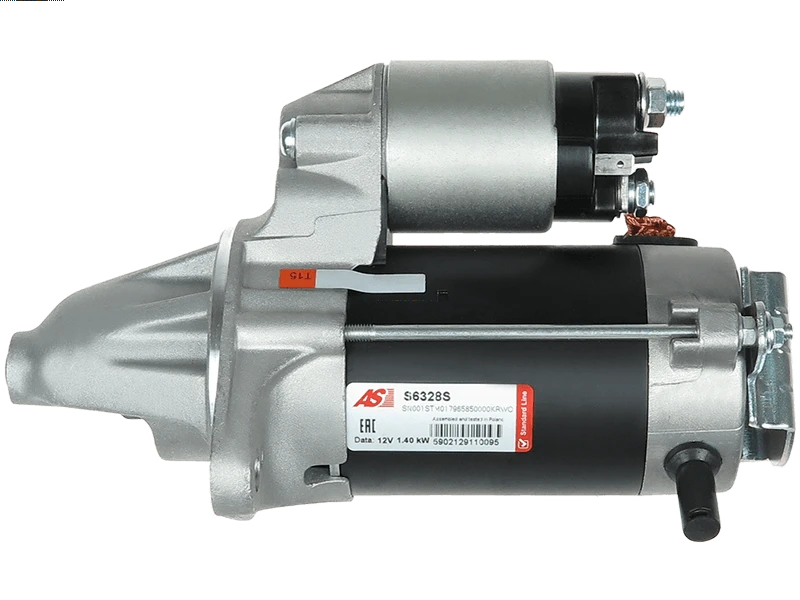

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 340.49 including GST
NZ$ 296.08 excluding GST
or four payments of $85.12
with
Learn More
each
S6328S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
428000-2291Associated Numbers
428000-2291 UD20538S CST35222AS CST35222GS 9916 428000-2290 25-5105 STM4271 254313 LRS03943 170.524.092 20437222BN 20437222OE 6035222.0 6035222.1 23300AA49A 17840N 91-29-5681Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 222 mm |
| Mount Hole Center - Center (O.1) | 120 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUBARU | Forester 2.0 AWD | [EJ201] | 06.2002-05.2005 |
| SUBARU | Forester 2.0 AWD | [EJ201] | 06.2005-05.2008 |
| SUBARU | Forester 2.0 AWD | [EJ202] | 06.1998-09.2002 |
| SUBARU | Forester 2.0 AWD | [EJ202] | 08.1997-09.2002 |
| SUBARU | Forester 2.0 AWD | [EJ204] | 01.2008-09.2013 |
| SUBARU | Forester 2.0 S Turbo AWD | [EJ205] | 02.2002-05.2005 |
| SUBARU | Forester 2.0 S Turbo AWD | [EJ205] | 04.2001-09.2002 |
| SUBARU | Forester 2.0 S Turbo AWD | [EJ205] | 06.1998-04.2001 |
| SUBARU | Forester 2.5 AWD | [EJ25] | 01.2009-09.2013 |
| SUBARU | Impreza 2.0 R AWD | [EJ204] | 01.2008-03.2012 |
| SUBARU | Legacy 2.0 2WD | [EJ20Y] | 08.2005-03.2012 |
| SUBARU | Legacy 2.0 AWD | [EJ202] | 09.2003-10.2005 |
| SUBARU | Legacy 2.0 AWD | [EJ204] | 06.2005-04.2009 |
| SUBARU | Legacy 2.0 i AWD | [EJ204] | 06.2012-12.2014 |
| SUBARU | Legacy 2.0 i AWD | [EJ25] | 09.2009-12.2014 |
| SUBARU | Legacy 2.0 i AWD | [EJ253] | 09.2009-12.2014 |
| SUBARU | Legacy 2.0 R AWD | [EJ204] | 09.2007-12.2009 |
| SUBARU | Legacy 2.5 AWD | [EJ20X] | 09.2003-04.2009 |
| SUBARU | Legacy 2.5 AWD | [EJ25] | 09.2003-04.2009 |
| SUBARU | Legacy 2.5 i AWD | [EJ204] | 09.2009-12.2014 |
| SUBARU | Legacy 2.5 i AWD | [EJ25] | 01.2008-12.2009 |
| SUBARU | Legacy 2.5 i AWD | [EJ25] | 09.2007-12.2009 |
| SUBARU | Legacy 2.5 i AWD | [EJ253] | 07.2012-12.2014 |
| SUBARU | Legacy 2.5 i AWD | [FB20] | 09.2009-12.2014 |
| SUBARU | Outback 2.5 AWD | [EJ25D] | 09.2008-09.2009 |
| SUBARU | Outback 2.5 AWD | [FB25] | 11.2003-09.2009 |
| SUBARU | Outback 2.5 i AWD | [EJ251] | 09.2009- |
| SUBARU | Outback 2.5 i AWD | [EJ253] | 01.2013- |
| SUBARU | Outback 3.6 R AWD | [FB25B] | 09.2009- |
Reference Information
| 170.524.092 | PSH |
| 17840N | WAI / TRANSPO |
| 20437222BN | REAL |
| 20437222OE | REAL |
| 23300AA230 | SUBARU |
| 23300AA390 | SUBARU |
| 23300AA460 | SUBARU |
| 23300AA49A | SUBARU |
| 23300AA570 | SUBARU |
| 23300AA572 | SUBARU |
| 23300AA572 | NISSAN |
| 254313 | KUHNER |
| 25-5105 | ELSTOCK |
| 428000-2290 | DENSO |
| 428000-2291 | DENSO |
| 6035222.0 | SANDO |
| 6035222.1 | SANDO |
| 91-29-5681 | WILSON |
| 9916 | CEVAM |
| CST35222AS | CASCO |
| CST35222GS | CASCO |
| LRS03943 | LUCAS |
| LRS3943 | LUCAS |
| M000T20171 | MITSUBISHI |
| M000T20175 | MITSUBISHI |
| M000T20176 | MITSUBISHI |
| M000T20176AM | MITSUBISHI |
| M001T84481 | MITSUBISHI |
| M001T86481 | MITSUBISHI |
| M0T20171 | MITSUBISHI |
| M0T20175 | MITSUBISHI |
| M0T20176 | MITSUBISHI |
| M0T20176AM | MITSUBISHI |
| M1T84481 | MITSUBISHI |
| M1T86481 | MITSUBISHI |
| STM4271 | KRAUF |
| STX200319 | STARDAX |
| STX200319R | STARDAX |
| STX200853 | STARDAX |
| UD20538S | AS-PL |
