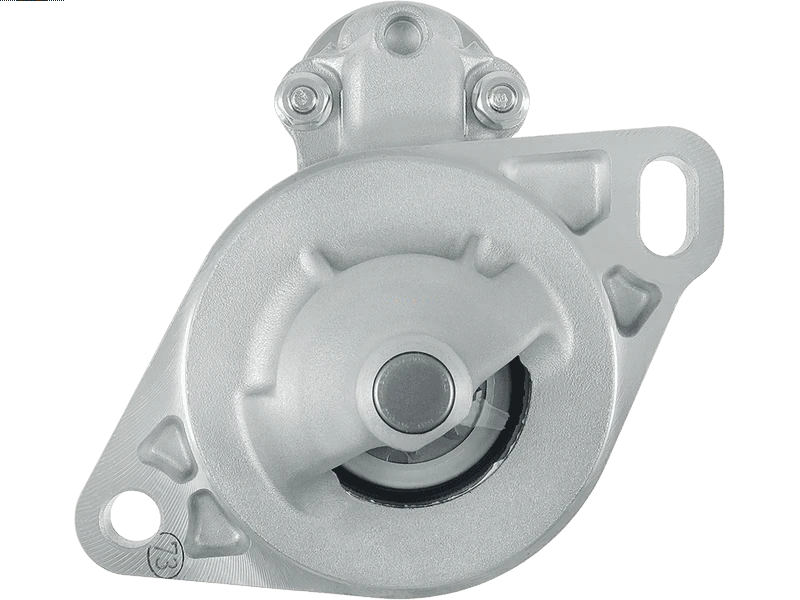

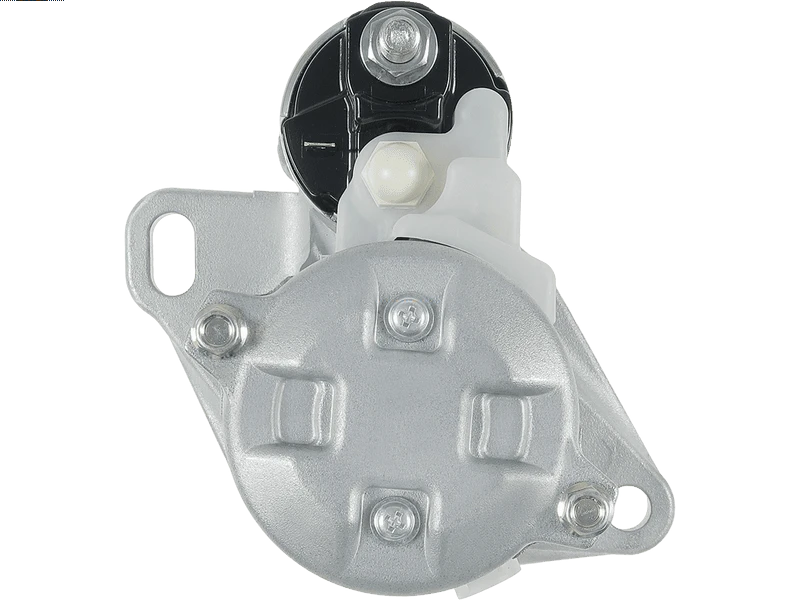

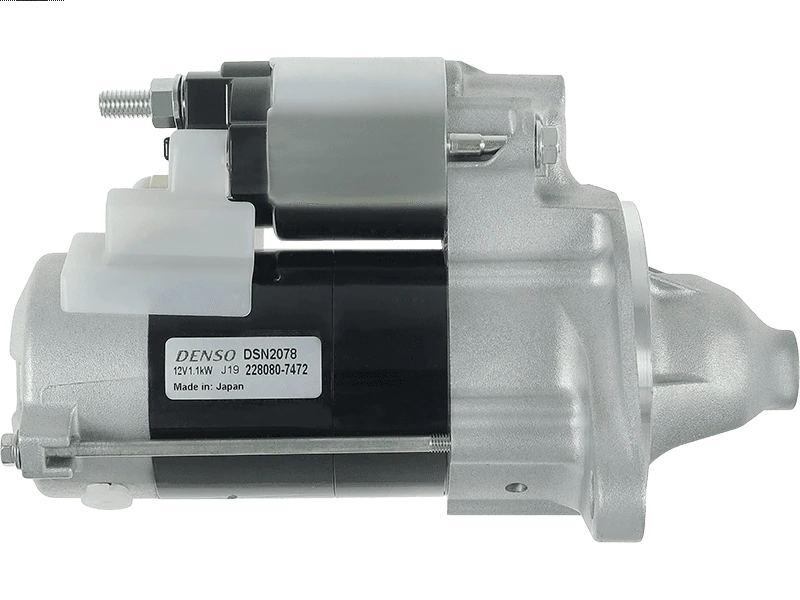

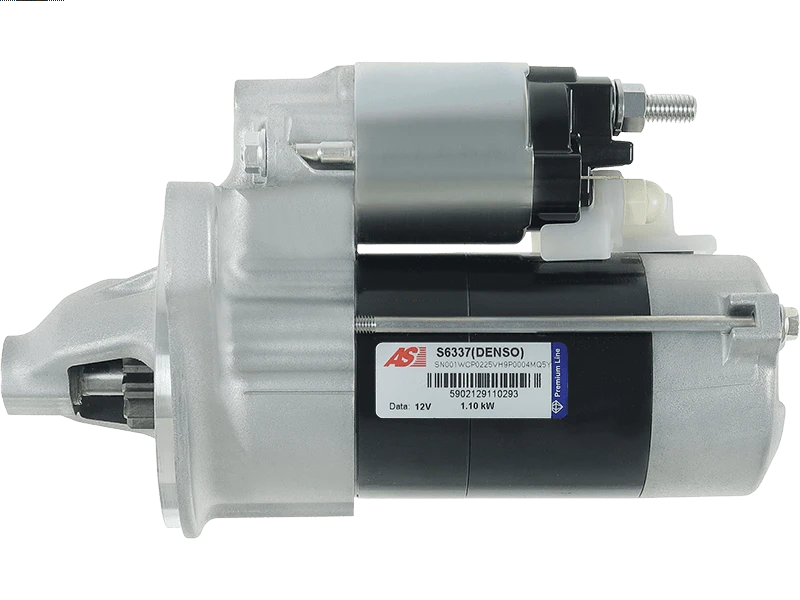

Brand new OEM DENSO Starter motor
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 797.12 including GST
NZ$ 693.15 excluding GST
or four payments of $199.28
with
Learn More
each
S6337(DENSO)
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
DSN2078Associated Numbers
DSN2078 UD810213(DENSO)S 114197 CST40507GS 2280007470 2280007471 2280007472 S-80090 246-12131 25-4421 AM809215 AM879204 M809215 SE501858 TY25238 STN4197 255868 255868D LRS02748 980.542.092 20432705OE 6040503.1 18426N 18426R DENDSN2078 DXS641Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 212 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 16 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 4100 | [3TNE74] | 01.1998-12.2002 |
| JOHN DEERE | 4110 | [3TNE74] | 01.2002-12.2006 |
Reference Information
| 114197 | CARGO |
| 11962677010 | YANMAR |
| 119626-77010 | YANMAR |
| 11962677011 | YANMAR |
| 119626-77011 | YANMAR |
| 11986577010 | YANMAR |
| 11986577011 | YANMAR |
| 12145077010 | YANMAR |
| 18426N | WAI / TRANSPO |
| 18426R | WAI / TRANSPO |
| 20432705OE | REAL |
| 2280007470 | DENSO |
| 2280007471 | DENSO |
| 2280007472 | DENSO |
| 246-12131 | DIXIE |
| 25-4421 | ELSTOCK |
| 255868 | KUHNER |
| 255868D | KUHNER |
| 5040595 | MEAT & DORIA |
| 6040503.1 | SANDO |
| 980.542.092 | PSH |
| 980.542.092.460 | PSH |
| AM809215 | JOHN DEERE |
| AM879204 | JOHN DEERE |
| AM880978 | JOHN DEERE |
| CST40507GS | CASCO |
| DENDSN2078 | WOODAUTO |
| DSN2078 | DENSO |
| F032114197 | CARGO |
| LRS02748 | LUCAS |
| LRS2748 | LUCAS |
| M809215 | JOHN DEERE |
| S-80090 | DIXIE |
| SE501858 | JOHN DEERE |
| STN4197 | KRAUF |
| STR6679 | ELECTROLOG |
| STX210347 | STARDAX |
| STX210347R | STARDAX |
| TY25238 | JOHN DEERE |
| UD810213(DENSO)S | AS-PL |
