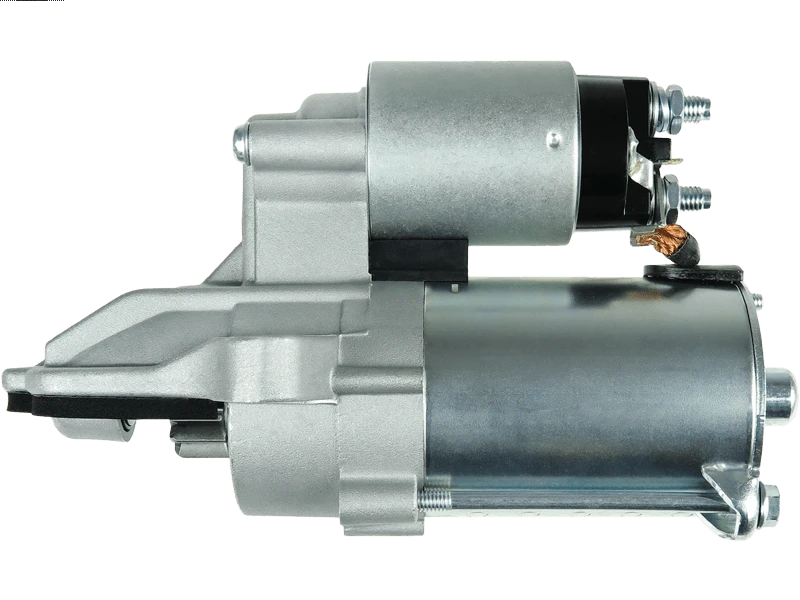

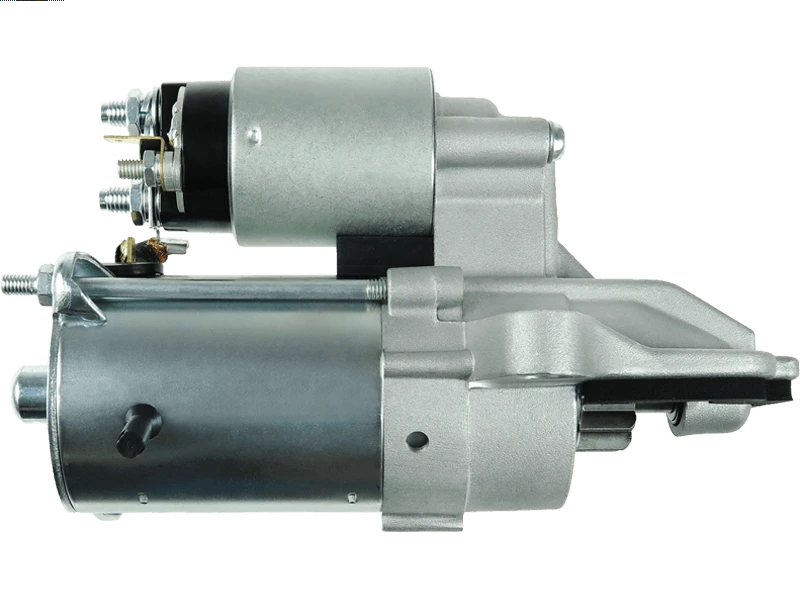

S9004 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.5 kW
Length (L.1)	215 mm
Mount Hole Center - Center (O.1)	97 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	31 mm
Rotation	CW
Unit Type	FORD
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Mondeo 1.8 16V	[CGBA]	11.2000-
FORD	Mondeo 1.8 16V	[CGBB]	11.2000-
FORD	Mondeo 1.8 16V	[CHBA]	11.2000-03.2005
FORD	Mondeo 1.8 16V	[CHBB]	11.2000-
FORD	Mondeo 1.8 SCi	[CFBA]	06.2003-
FORD	Mondeo 2.0 16V	[CJBA]	11.2000-
FORD	Mondeo 2.0 16V	[CJBB]	11.2000-

Reference Information

8EA737920-001 1S7U11000AG 1S7U11000AF S9004 1S7U11000AE 1S7U11000AD 1S7U11000AC 1S7U11000AB 1S7U11000AA SS633 LRS01507 11981 DRS3825N 1218885 1756796 1369310 MAV161050 EAA-121346 CS1246 000986022850 331371 1120214 1465010 RE1S7U11000AF 101403V 25-2466 22.1246 42001004 STR61807 6014105 88212206 8212206 ANM16045X 3M5T11000AC 3023 32507N 5M5T11000DA DRS3825 986022850 1140111 101246V LRS1507 458374 8080118 101246 CST14105GS STA0356R 20-100-01023 8EA012526-271 101403 STRL922 20450501OE 5014267 AEU1246 220367 1S7U-11000-AA STR8913 113794 MAV161080

Video/Publications

0986022850 101246 101246V 101403 101403V 1120214 113794 1140111 11981 1218885 1465010 1S7U11000AB 1S7U11000AC 1S7U11000AD 1S7U11000AE 1S7U11000AF 20-100-01023 20450501OE 22.1246 25-2466 3023 32507N 3M5T11000AC 42001004 458374 6014105 8080118 8212206 88212206 8EA737920-001 AEU1246 CS1246 CST14105GS DRS3825 DRS3825N EAA-121346 LRS01507 LRS1507 MAV161050 MAV161080 S9004 SS633 STR61807 STRL922 220367
