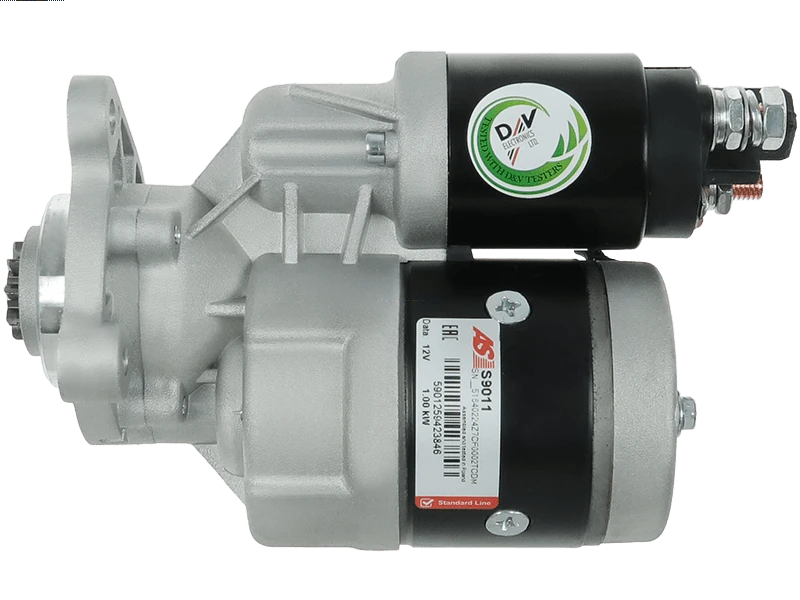

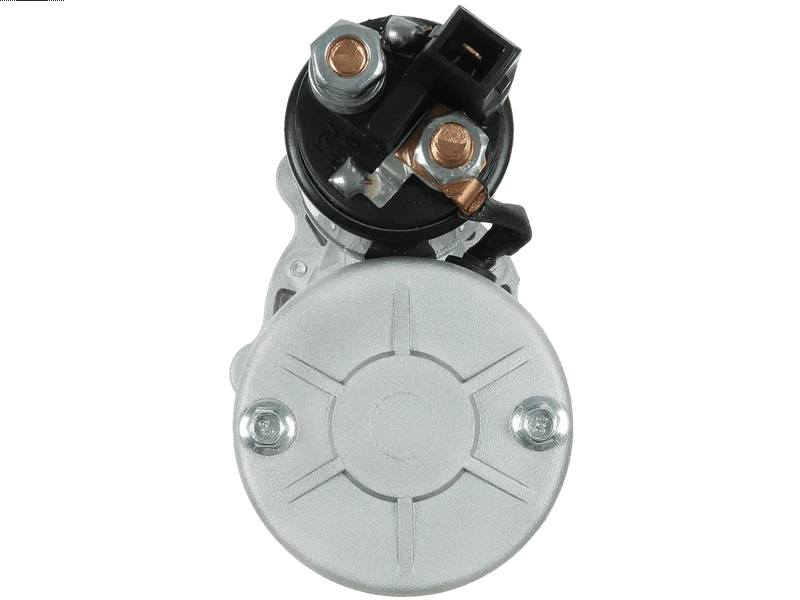

S9011 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1 kW
Length (L.1)	171 mm
Mount Hole Center - Center (O.1)	60 mm
Mount Hole Center - Center (O.2)	81 mm
Mount Hole Center - Center (O.3)	95 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	8.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	1 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	21 mm
Rotation	ACW
Spigot Diameter (A)	50 mm
Unit Type	MAGNETON
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
SKODA	Fabia 1.0	[AQV]	09.1999-08.2002
SKODA	Fabia 1.0	[ARV]	12.1999-12.2004
SKODA	Fabia 1.0	[ATY]	12.1999-08.2002
SKODA	Fabia 1.4	[AME]	09.1999-05.2003
SKODA	Fabia 1.4	[AQW]	12.1999-05.2003
SKODA	Fabia 1.4	[ATZ]	09.1999-01.2001
SKODA	Fabia 1.4	[AZE]	09.2000-03.2003
SKODA	Fabia 1.4	[AZF]	12.1999-03.2003
SKODA	Fabia 1.4 Praktik	[AME]	09.1999-05.2003
SKODA	Fabia 1.4 Praktik	[AQW]	12.1999-05.2003
SKODA	Fabia 1.4 Praktik	[ATZ]	09.1999-01.2001
SKODA	Octavia 1.4	[AMD]	04.1999-03.2001

Reference Information

8213236 4.43115E+11 6048101 STR60403 112388 9141331 047911023G STRS890 42023490 047911023C 300.544.083 DRS3826 CST48101GS 047911023GX 11967 EAA-121537 25-3183 LRS1647 MAV3500 101204 LRS01647 22.1204M ANM16046X STRX730 S9011 20408101OE CS1204 S1112W 3230 AEU1204 047911023CX SS601 RNL1204CS 32647N 8EA737876-001 8080107 22.1204 47911023 STA0224R

Video/Publications

047911023C 047911023G 101204 112388 11967 20408101OE 22.1204 22.1204M 25-3183 300.544.083 3230 32647N 42023490 443115141331 443115141336 443115141338 6048101 8080107 8213236 8EA737876-001 9141331 AEU1204 CS1204 CST48101GS DRS3826 EAA-121537 LRS01647 LRS1647 MAV3500 RNL1204CS S1112W S9011 SS601 STR60403 STRS890
