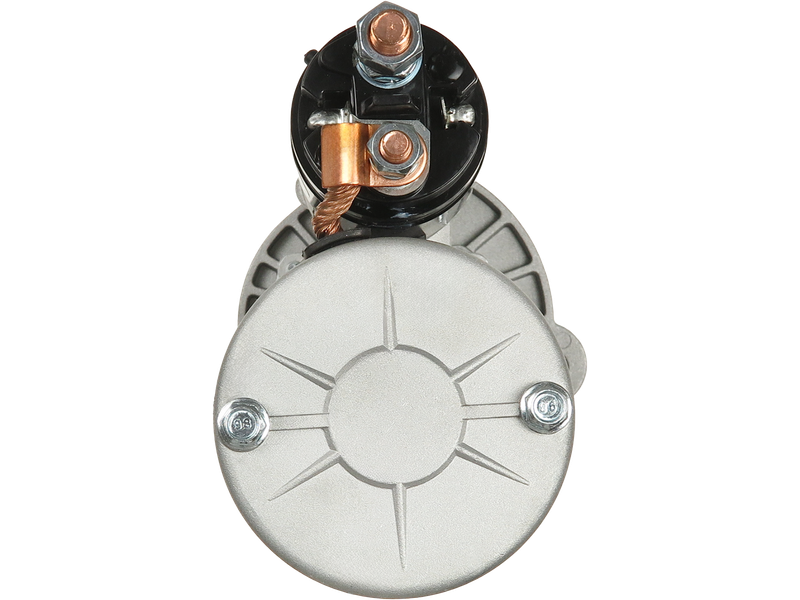

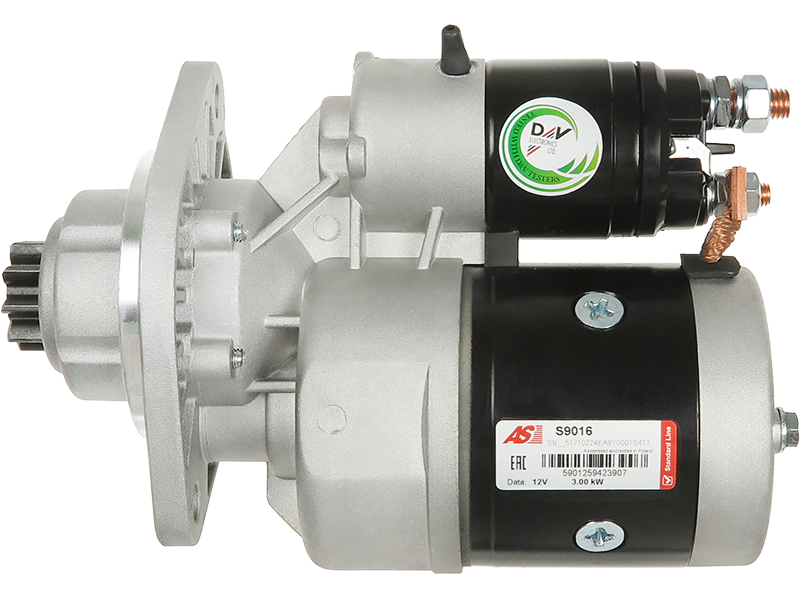

S9016 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 377.70 including GST

NZ$ 328.43 excluding GST
each
S9016
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

220345 25-4273 262034 443115142723 443115144723 6048109 CST48109 CST48109AS CST48109ES CST48109GS CST48109OS CST48109RS EAA-121678 LRS02600 LRS2600
Kilowatt3 kW
Length (L.1)233 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)127 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
Pinion at Rest (B)49 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeMAGNETON
Voltage12 V
Make Model Type Year
CHEVROLET Lublin 2.4 D [4C90] 04.1997-
CHEVROLET Lublin 2.4 TD [4CT90-1] 03.1999-02.2002
CHEVROLET Lublin 2.4 TD [4CT90-1] 04.1997-
DAEWOO Lublin 2.4 D [4C90] 04.1997-
DAEWOO Lublin 2.4 TD [4CT90-1] 03.1999-02.2002
DAEWOO Lublin 2.4 TD [4CT90-1] 04.1997-
4.43115E+11 262034 LRS2600 CST48109AS S9016 CST48109ES EAA-121678 6048109 220345 CST48109 CST48109OS LRS02600 CST48109RS 336131 MAV501090 CST48109GS STRL852 STA0173 25-4273
220345 25-4273 262034 443115142723 443115144723 6048109 CST48109 CST48109AS CST48109ES CST48109GS CST48109OS CST48109RS EAA-121678 LRS02600 LRS2600 MAV501090 S9016 STRL852
