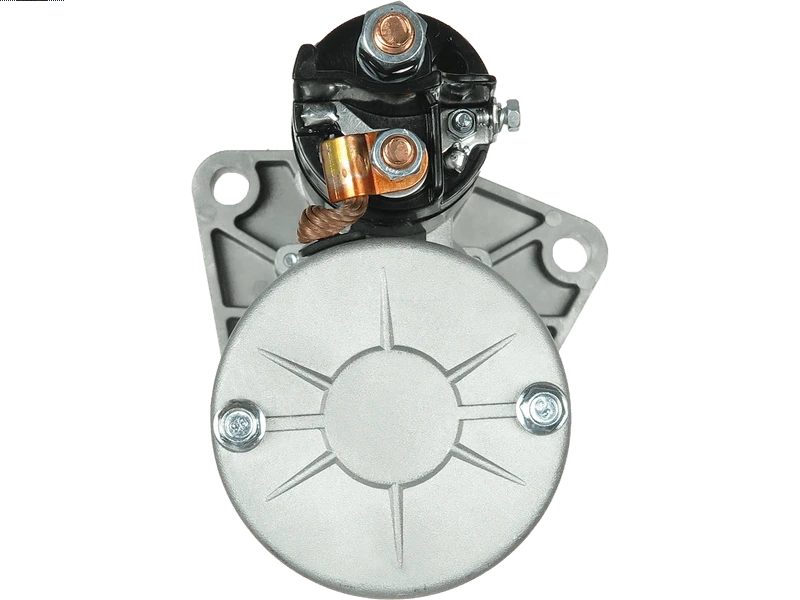

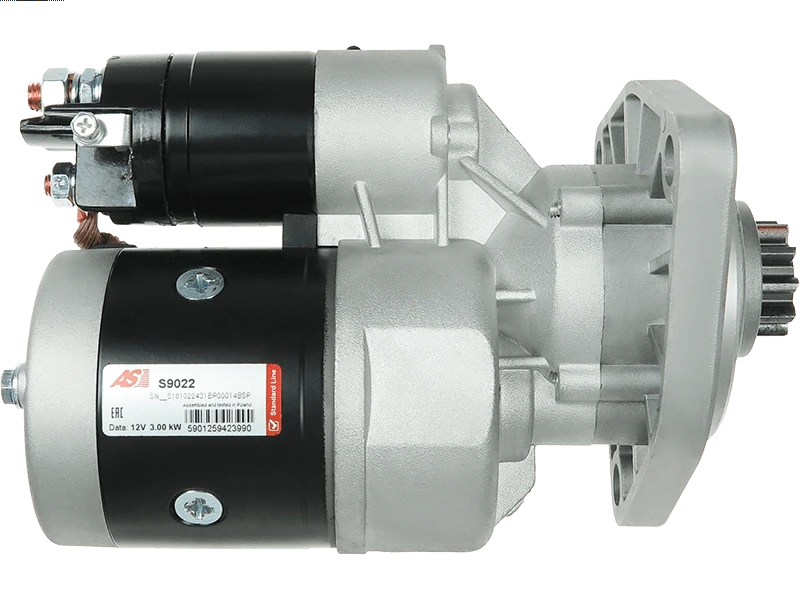

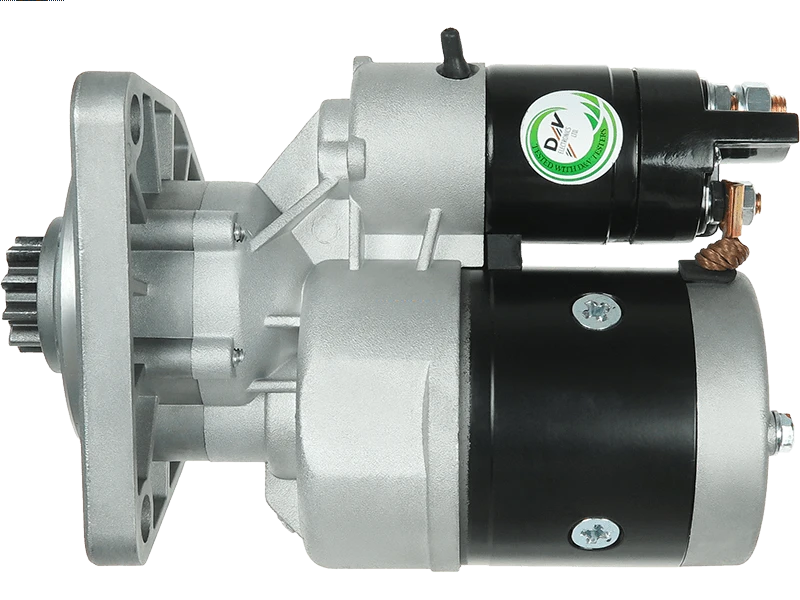

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 389.09 including GST
NZ$ 338.34 excluding GST
or four payments of $97.27
with
Learn More
each
S9022
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
123708002Associated Numbers
123708002 9142783 STG2783Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 232 mm |
| Mount Hole Center - Center (O.1) | 114 mm |
| Mount Hole Center - Center (O.2) | 137 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 100 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JUMZ | 6KL 4.7 | [D-65] | 01.1970- |
| JUMZ | 6KM 4.7 | [D-65] | 01.1970- |
Reference Information
| 123708002 | JUMZ |
| 9142783 | MAGNETON |
| STG2783 | KRAUF |
Video/Publications
S9022View your shopping basket or Browse other items in Starter Motors.
