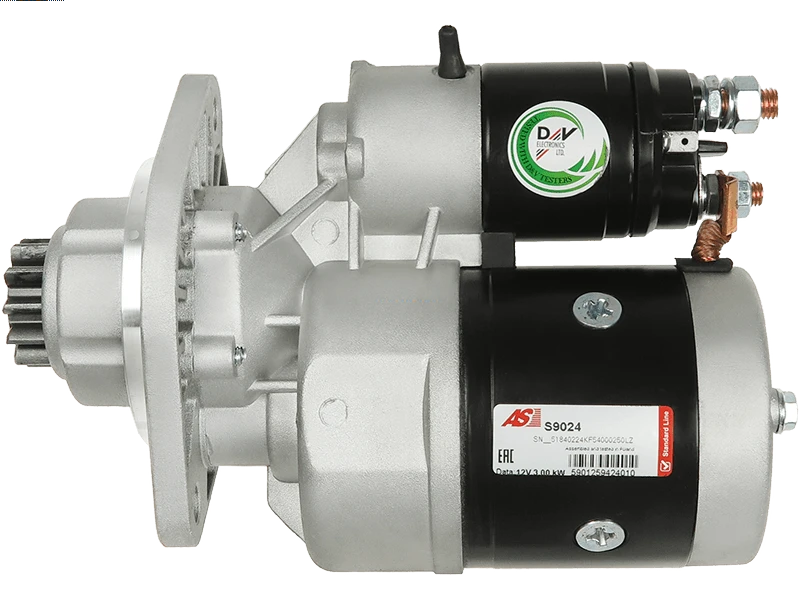

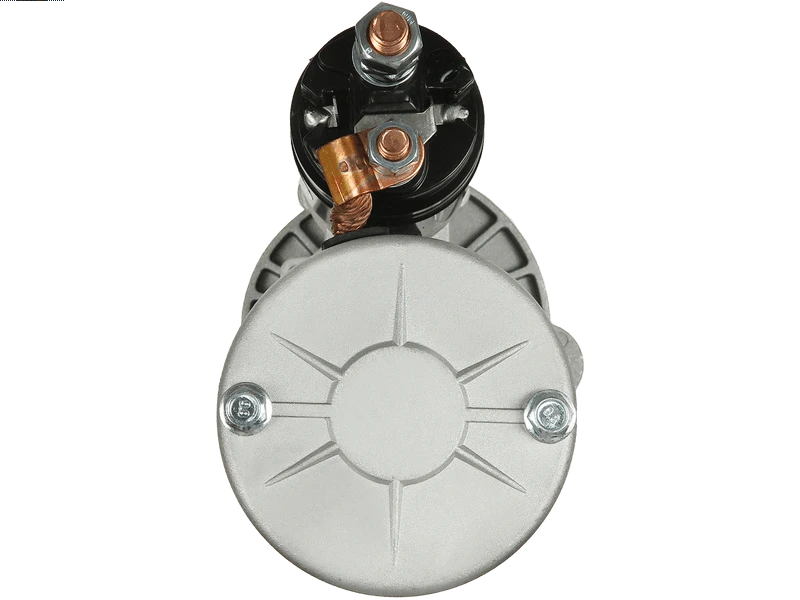

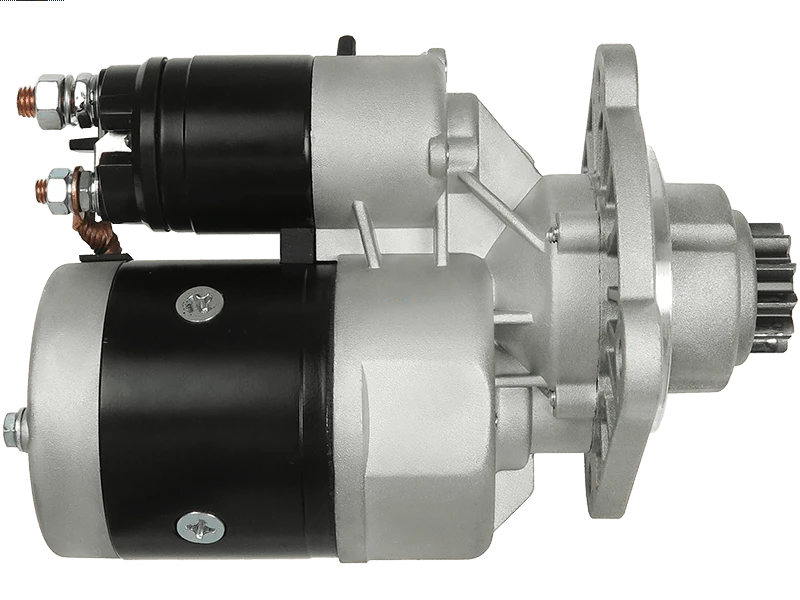

S9024 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 380.04 including GST

NZ$ 330.47 excluding GST



or four payments of $95.01 with
Afterpay Payment Offer Learn More

each
S9024
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

123708003
0001359047 0001359124 0001367032 0001367067 02914502 0986013690 0986013691 10604 10604R 10944 11.130.179 11.130.376 11.130.414 11.130.692 11.131.249 110545 114254 123708003 20405901BN 20405901OE 20408601OE 20500147 25-0315 25-0430 26242 26284 26284A 26284B 26284E 26342 26342A 26342D 26342K 26432 27512 27512A 27512B 27512D 27512F 27587 33521 33783 35259360 3539390M91 443115142722 443115144142 443115144420 443115144520 443115144620 443115144722 443115144729 6025109 6048106 63227512 69185771 800.001.113 800.502.113 820.301.114 8212915 835331592 8710 8710R 8813690 8EA730174-001 8EA737089-001 9142722 9142741 9144722 91455722 933253 976111 976116 976117 AES1147 AZJ3119 AZJ3234 AZJ3405 AZJ3525 AZJ3599 CS604 CS944 CST25109AS CST25109GS CST48106GS DRS3690 EAA-111099 EAA-121509 IS0897 LES0006 LRS00147 LRS00926 LRS01088 NSB523 R11 R11.01 R11.06 R11.10 R11A R11F R11N S9024 STR31000 STR60413 UD16660S
Kilowatt3 kW
Length (L.1)232 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)127 mm
Mount Hole Diameter (C.1)10.50 mm
Mount Hole Diameter (C.2)10.50 mm
Mount Hole Diameter (C.3)10.50 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)10. 11 qty
OEM ProductNo
Pinion at Rest (B)49 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)89 mm
Unit TypeMAGNETON
Voltage12 V
Make Model Type Year
CHANG FENG 3320 01.1992-
URSUS C-330 01.1967-12.1987
URSUS C-330M 07.1986-12.1993
URSUS C-360 07.1976-12.1992
VALMET 305 01.1985-12.1989
VALMET 405 01.1985-
VALMET 505 3.3 01.1985-
VALMET 6000 01.1990-
VALMET 605 3.3 01.1985-
VALMET 6400 01.1991-
VALMET 6600 01.1991-
VALMET 705 4.4 01.1985-
VALMET 8050 [620DS] 01.1996-
VALMET 805 4.4 01.1985-
VALMET 8100 09.1990-
VALMET 8150 [620DS] 01.1996-
VALMET 8400 [620DS] 01.1993-12.1995
VALMET 8450 [620DW] 01.1996-
VALMET 8550 [634DS] 01.1996-
VALMET 8750 [634DA][634DS] 01.1996-12.1998
VALMET 8950 [634DS] 01.1998-
VALMET 905 01.1985-
ZETOR 3321 01.1997-
ZETOR 3340 01.1992-
ZETOR 3341 01.1997-
ZETOR 4718 01.1974-01.1981
ZETOR 7320 01.1992-
ZETOR 7321 01.1992-
ZETOR 7340 01.1992-
ZETOR 7341 01.1997-
ZETOR 7745 3.9 01.1988-01.2003
0001359047BOSCH
0001359124BOSCH
0001367032BOSCH
0001367067BOSCH
02914502MAGNETON
0986013690BOSCH
0986013691BOSCH
10604KUHNER
10604RKUHNER
10944KUHNER
110545CARGO
11.130.179ISKRA / LETRIKA
11.130.376ISKRA / LETRIKA
11.130.414ISKRA / LETRIKA
11.130.692ISKRA / LETRIKA
11.131.249ISKRA / LETRIKA
114254CARGO
1208086OPEL
123708003JUBANA
19677130AVALTRA
19677130AVALMET
20408601BNREAL
20408601OEREAL
20500147PRESTOLITE
220238ERA
25-0315ELSTOCK
25-0430ELSTOCK
26242LUCAS
26284LUCAS
26284ALUCAS
26284BLUCAS
26284ELUCAS
26342LUCAS
26342ALUCAS
26342DLUCAS
26342KLUCAS
26432LUCAS
27512LUCAS
27512ALUCAS
27512BLUCAS
27512DLUCAS
27512FLUCAS
27587LUCAS
33521EAI
33783EAI
35259360PRESTOLITE
3539390M91MASSEY FERGUSON
4412894FIAT
443115142722MAGNETON
443115144142MAGNETON
443115144420MAGNETON
443115144520MAGNETON
443115144620MAGNETON
443115144722MAGNETON
443115144729MAGNETON
447115144722MAGNETON
6048106.0SANDO
6048106.1SANDO
63227512MAGNETI MARELLI
69185771ZETOR
800.001.113.010PSH
800.001.113.030PSH
800.001.113.031PSH
800.001.113.310PSH
800.001.113.320PSH
800.001.113.351PSH
800.001.113.460PSH
80350911URSUS
8212915POWERMAX
835331592MASSEY FERGUSON
836640940VALMET
836662073VALMET
8710CEVAM
8710RCEVAM
8813690FRIESEN
8EA730174-001HELLA
8EA737089-001HELLA
9142722MAGNETON
9142741MAGNETON
9144722MAGNETON
91455722MAGNETON
933253ZETOR
976111ZETOR
976116ZETOR
976117ZETOR
AES1147AUTOELECTRO
AZJ3119ISKRA / LETRIKA
AZJ3234ISKRA / LETRIKA
AZJ3405ISKRA / LETRIKA
AZJ3525ISKRA / LETRIKA
AZJ3599ISKRA / LETRIKA
CGB-23147AINDE
CS604HC PARTS
CS944HC PARTS
CST48106ASCASCO
CST48106GSCASCO
DRS3690DELCO
F032110545CARGO
F032114254CARGO
IS0897ISKRA / LETRIKA
LES0006LUCAS
LRS00147LUCAS
LRS00926LUCAS
LRS01088LUCAS
LRS1088LUCAS
LRS147LUCAS
LRS926LUCAS
MAV3650SIOM
MAV501060SIOM
MS184MAHLE
MS91MAHLE
NSB523LUCAS
PRSS5263EFFE
R11ELMOT
R11.01ELMOT
R11.06ELMOT
R11.10ELMOT
R11AELMOT
R11FELMOT
R11NELMOT
S12308622ZETOR
S135.194PSH
S145.187PSH
S9024AS-PL
STG3742KRAUF
STR31000WOODAUTO
STR60413WOODAUTO
STRS5263EFFE
STRX725ELECTROLOG
STX200691STARDAX
STX200715STARDAX
UD16660SAS-PL
S9024
