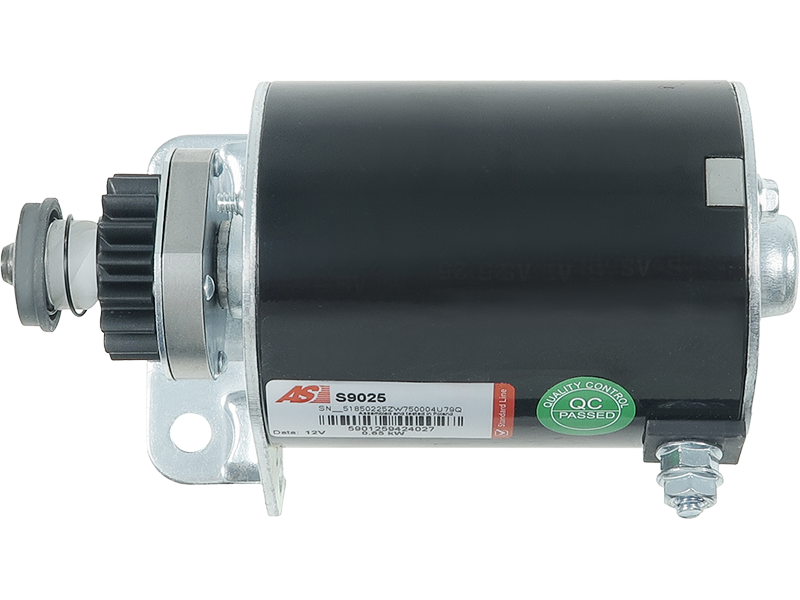

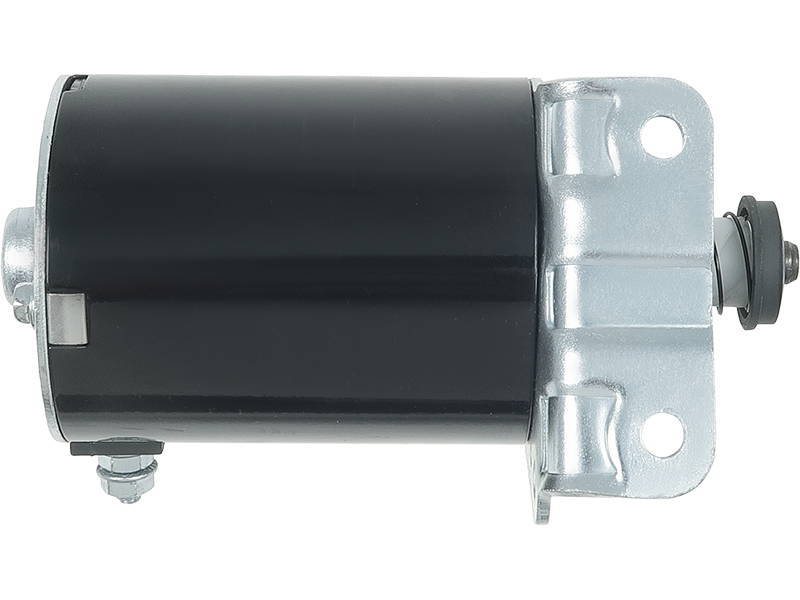

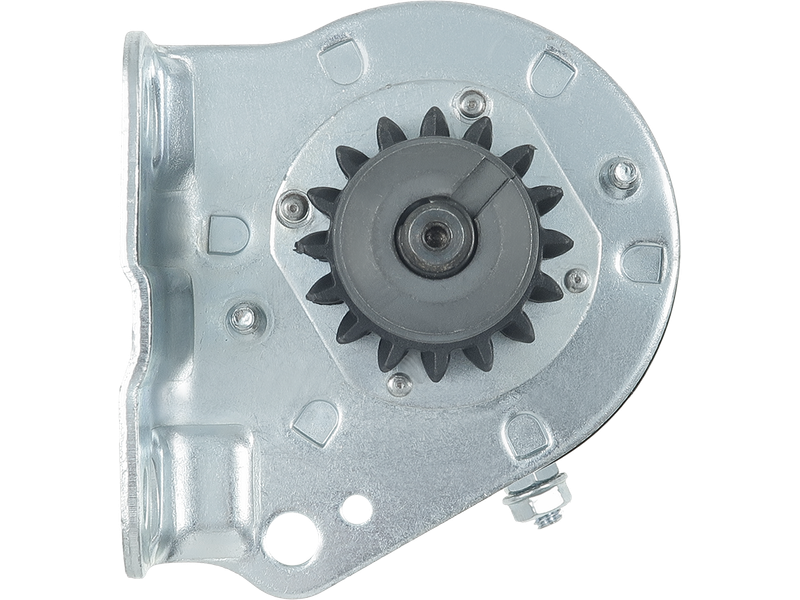

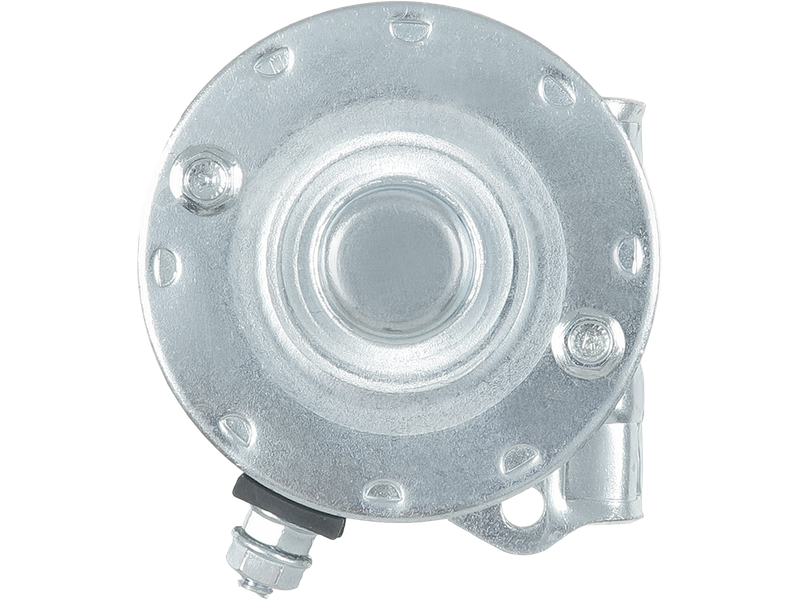

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BRIGGS STRATTON
Price:
NZ$ 156.25 including GST
NZ$ 135.87 excluding GST
or four payments of $39.06
with
Learn More
each
S9025
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
497595Associated Numbers
0986012111 110634 20301 25-3344 390838 391423 392749 394805 497594 497595 5742N 8017 88213121 8EA730327-001 DRS2111 EAA-121403 LRS02170 RNL497595 S9025 SMO1965 STR40004 US851Specifications
| Kilowatt | 0.65 kW |
| Length (L.1) | 170 mm |
| Mount Hole Center - Center (O.1) | 58 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 16 qty |
| No./Teeth (Replaces) | 16 qty |
| OEM Product | No |
| Pinion at Rest (B) | 31.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | BRIGGS STRATTON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BRIGGS & STRATTON | Various Models | 04.1982-01.1999 |
Reference Information
| 0986012111 | BOSCH |
| 104244 | FARCOM |
| 10440237 | ALANKO |
| 10440918 | ALANKO |
| 110634 | CARGO |
| 20301 | KUHNER |
| 2-2188 | WAI / TRANSPO |
| 25-3344 | ELSTOCK |
| 392749 | BRIGGS STRATTON |
| 394805 | BRIGGS STRATTON |
| 497594 | BRIGGS STRATTON |
| 497595 | BRIGGS STRATTON |
| 5742 | LESTER |
| 5742N-HD | WAI / TRANSPO |
| 8017 | CEVAM |
| 88213121 | POWERMAX |
| 8EA730327-001 | HELLA |
| AC-UBS0851 | ACAUTO |
| AM122337 | JOHN DEERE |
| AM37352 | JOHN DEERE |
| AM39137 | JOHN DEERE |
| DRS2111 | DELCO |
| F032110634 | CARGO |
| LG497595 | JOHN DEERE |
| LRS02170 | LUCAS |
| LRS2170 | LUCAS |
| M001T02271 | MITSUBISHI |
| M1T02271 | MITSUBISHI |
| PRSL230 | 3EFFE |
| RNL497595 | RNL |
| S511539 | BTS TURBO |
| S9025 | AS-PL |
| SBS0001 | ARROWHEAD |
| SMO1965 | UNITED TECHNOLOGIES |
| STR40004 | WOODAUTO |
| STR7634 | ELECTROLOG |
| STRL230 | 3EFFE |
| STX200611 | STARDAX |
| US851 | HC PARTS |
Video/Publications
