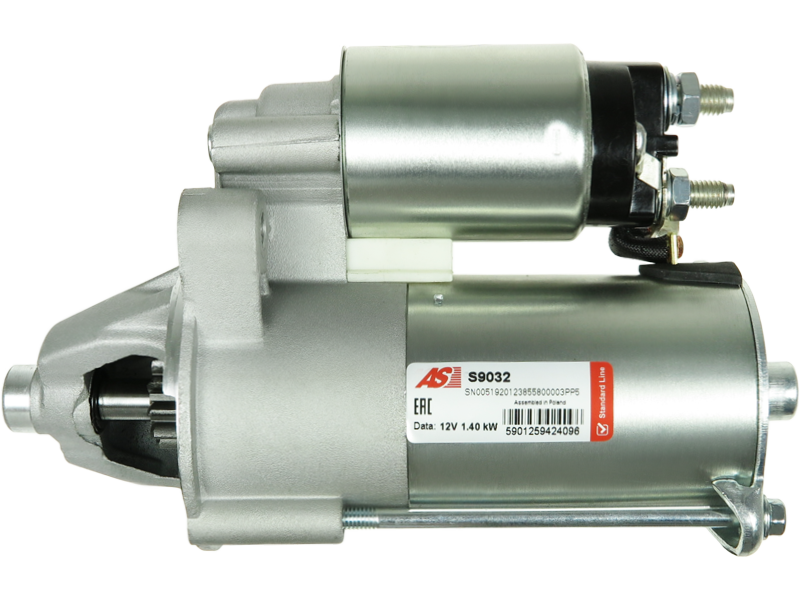

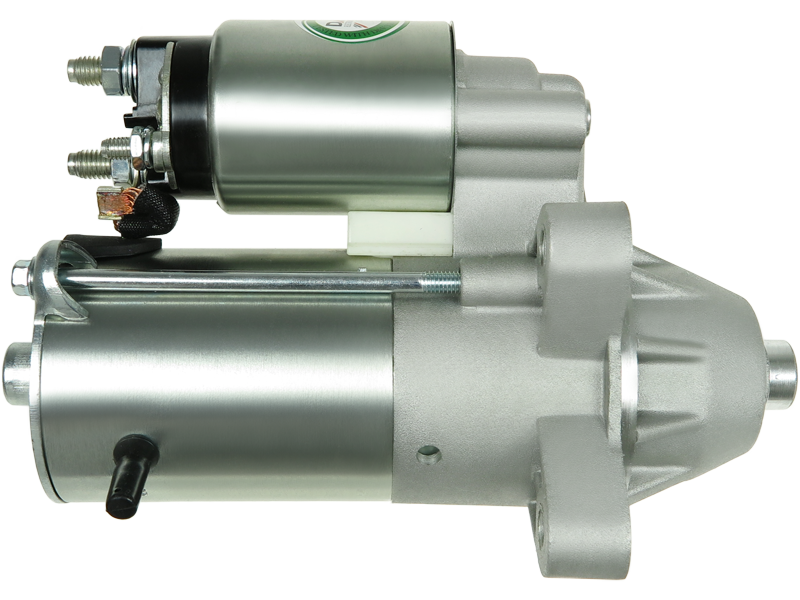

S9032 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	209 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Center - Center (O.2)	67 mm
Mount Hole Center - Center (O.3)	66 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	15 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	FORD
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Tourneo Connect 1.8 Di	[BHPA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 Di	[P7PA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 Di	[P7PB]	06.2002-12.2013
FORD	Tourneo Connect 1.8 Di	[R2PA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[BHPA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[HCPA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[HCPB]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[HCPC]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[HCPD]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[P7PA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[P7PB]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[P9PA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[P9PB]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[P9PC]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[P9PD]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[R2PA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[R3PA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[RWPE]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDCi	[RWPF]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDDi	[BHPA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDDi	[P7PA]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDDi	[P7PB]	06.2002-12.2013
FORD	Tourneo Connect 1.8 TDDi	[R2PA]	06.2002-12.2013
FORD	Transit Connect 1.8 Di	[BHPA]	06.2002-12.2013
FORD	Transit Connect 1.8 Di	[P7PA]	06.2002-12.2013
FORD	Transit Connect 1.8 Di	[P7PB]	06.2002-12.2013
FORD	Transit Connect 1.8 Di	[R2PA]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[HCPA]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[HCPB]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[HCPC]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[HCPD]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[P9PA]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[P9PB]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[P9PC]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[P9PD]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[R3PA]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[RWPE]	06.2002-12.2013
FORD	Transit Connect 1.8 TDCi	[RWPF]	06.2002-12.2013

Reference Information

4033064 ANM16176X 3122885 20450701BN 11090053 3122887 2T14BA 201039 000986022840 SG0393 8080134 319059102 DS5066 1756793 LRS01627 107129 MO0001MA CST14107ES 590.548.103.235 ST01229 RE83525N DRS0160N S12VS0054A2 CST14107 S9032 GS001034-A SFO107A DS5066N G201336-N 11998 331372 GS001034VI-R 25-3155 DRS3956 06-10138-SX 986022840 3126 6014107 QRS2304 S12VS0054 4722880 011-001-000327R 20-100-01034 DRS0160 458448 6014107.1 9.43213E+11 RE2T1411000BC SKSTR-0330051 9.44281E+11 2177 ANM16176 220374 1109063 113910 NEY1627 3.59001E+11 220413 63280034010 DRS3956N MAV161070 H5014065 1477973 63721336010 TT16326 438486 1477974 1986S00222 1904988 35259860 CST14107AS 590.548.103.230 1109056 SX 88212274 STF1336 8EA738258-201 SS001034-A 0001986S00222 2T14-11000-CA 534376 5014065 2T14-11000-CB 2T14-11000-CC 333003 AEY1627 IR9670 SS001034VI-R RAS34067 CST14107RS STRL110 2-0076 STX200139 32510N DS1270 32510R RNL2T14BA 63280034 AI-80036 CGB-53155 460469 AC-CBS1336 101591 2S0052 8EA011610-261 MSN8034 FO9067 20450701OE CS1336 EAA-121016 2T1411000AB MRS80134 2T14-11000-BA 13.44003 2T14-11000-BB 2T14-11000-BC 2T1411000AA MQS1336 998ST11 1345314 MAV161070A 4443760 2T14-11000-AA 1638121180 10439776 BST2334 590.548.103.608 1590301100 STR8974 STR61804 SFO107 590.548.103.020 PRSL110 A78060 1265011 2T1411000CA 63720022010 2T1411000CB 2T1411000CC STX200139R CST14107OS SX2177 LRS1627 STR61818 13663 CST14107GS 106619 4424968 STA0286R 590.548.103.395 STM750 20450701 42001034 220374A EZ0517 220374R 458380 101336V 590.548.103.028 101336
