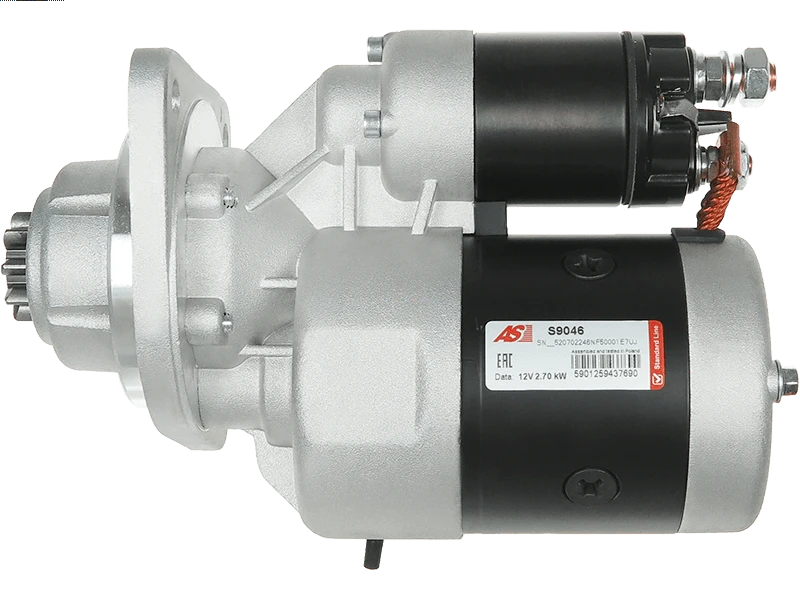

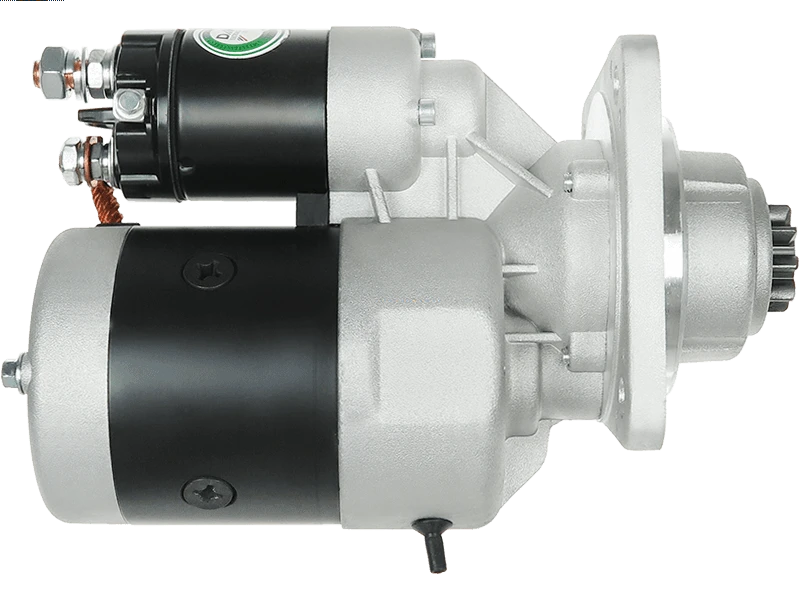

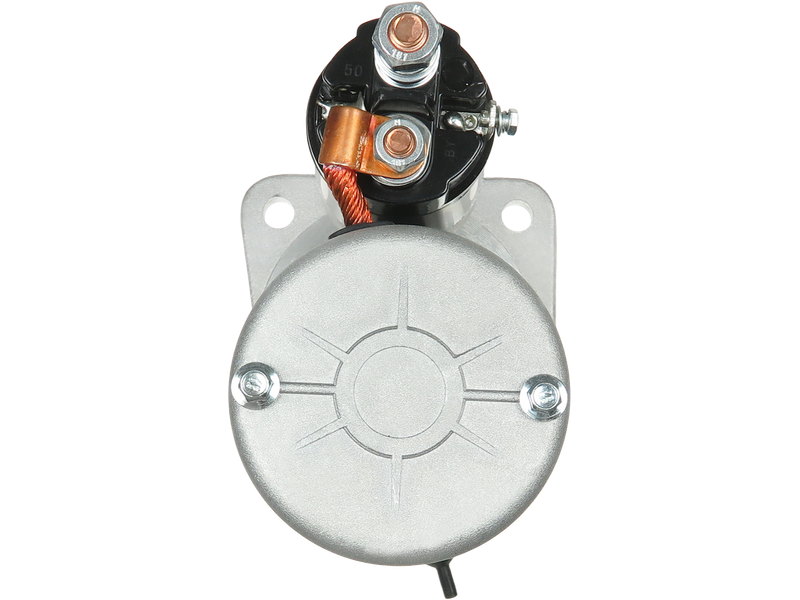

S9046 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 362.71 including GST

NZ$ 315.40 excluding GST



or four payments of $90.68 with
Afterpay Payment Offer Learn More

each
S9046
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

9142805
0001354073 0001354080 0001359014 0001359074 0001362063 0001362300 0001367001 0001369016 0986011130 0986017280 10503 11.130.704 11.130.889 111752 120-504 120-504A 120-504B 120-504C 120-504G 17228N 19024257 20513058 25-0208 25-0232 25-1118 254626 3055414R92 3055557R92 3218677R91 3228193EX 3228193R91 3229193EX 436077 8EA726151-001 9142805 AES5170 AZJ3242 AZJ3314 CS503 DRS1130 DRS7280 IS0704 LRS00570 LRS01985 LRS01988 M100R2014SE MSN206 STR22004
Kilowatt2.70 kW
Length (L.1)235 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
OEM ProductNo
Pinion at Rest (B)48 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)88.50 mm
Unit TypeMAGNETON
Voltage12 V
Make Model Type Year
CASE IH 1046 A 5.9 [D-358] 04.1973-09.1977
CASE IH 1246 A 5.9 [DT-358] 02.1974-08.1979
CASE IH 125 B2 4.0 [D239] 06.1973-12.1986
CASE IH 221 10.1972-12.1974
CASE IH 325 5.1 [D-239] 04.1973-12.1985
CASE IH 3654 4.0 [D-239] 04.1973-12.1978
CASE IH 3964 Yumbo 5.9 [D-358] 07.1973-12.1986
CASE IH 3965 Yumbo 5.9 [D-358] 03.1971-12.1986
CASE IH 3980 Yumbo 5.9 [D-358] 03.1972-12.1986
CASE IH 400-Serie 431 3.9 [D-239] 01.1986-06.1986
CASE IH 400-Serie 431 5.1 [D-310] 01.1986-06.1986
CASE IH 431 4.0 [D239] 02.1973-12.1985
CASE IH 431 5.1 [D-310] 04.1973-12.1985
CASE IH 500-Serie 531 2.5 [D-310] 01.1986-06.1986
CASE IH 500-Serie 531 5.1 [D-310] 04.1973-12.1985
CASE IH 500-Serie 531 5.9 [D-358] 01.1986-06.1986
CASE IH 500-Serie 531 5.9 [D-358] 04.1973-12.1985
CASE IH 554 A 02.1974-02.1975
CASE IH 600-Serie 644 3.4 [D-206] 01.1986-06.1986
CASE IH 644 3.4 [D-206] 01.1974-12.1985
CASE IH 644 A 3.4 [D-206] 01.1974-12.1985
CASE IH 724A 04.1973-01.1974
CASE IH 744 4.0 [D239] 02.1974-06.1984
CASE IH 744A 02.1974-06.1984
CASE IH 744 A 4.0 [D239] 02.1974-06.1984
CASE IH 800-Serie 321 3.9 [D-239] 01.1986-06.1986
CASE IH 800-Serie 844A 4.3 [D-246] 01.1986-12.1990
CASE IH 800-Serie 844 S/SA 4.4 [D-268] 01.1986-12.1990
CASE IH 844 A 4.0 [D-246] 01.1974-12.1985
CASE IH 844 S, SA 4.0 [D-268] 02.1975-12.1985
CASE IH 946 A 5.1 [D-310] 04.1973-09.1977
CASE IH H 30 B 4.0 [D-239] 01.1976-12.1985
CASE IH H30B Payloader [D239] 01.1975-01.1976
CASE IH H50B Payloader 04.1973-01.1979
CASE IH H 60 B 5.9 [D-358] 10.1971-06.1984
CASE IH H60B Payloader 10.1971-06.1984
CASE IH H-Serie H 50 B 5.1 [D-310] 04.1973-12.1979
CASE IH TD 8B 4.0 [D-239] 04.1973-12.1978
CASE IH TD8B Crawler Tractor 01.1969-01.1976
0001354073BOSCH
0001354080BOSCH
0001359014BOSCH
0001359074BOSCH
0001362063BOSCH
0001362300BOSCH
0001367001BOSCH
0986011130BOSCH
0986017280BOSCH
10503KUHNER
11.130.704ISKRA / LETRIKA
11.130.889ISKRA / LETRIKA
111752CARGO
120-504PIC
120-504APIC
120-504BPIC
120-504CPIC
120-504GPIC
121905A1CASE
17228NWAI / TRANSPO
19024257DELCO
20513058PRESTOLITE
220011ERA
220176ERA
25-0208ELSTOCK
25-0232ELSTOCK
25-1118ELSTOCK
3055557R92CASE
3218675R91CASE
3218677R91CASE
3228193EXCASE
3228193R91CASE
3229193EXCASE
3229193R91CASE
436077VALEO
8EA726151-001HELLA
9142805MAGNETON
AES5170AUTOELECTRO
AZJ3242ISKRA / LETRIKA
AZJ3314ISKRA / LETRIKA
CGB-21130AINDE
CS503HC PARTS
DRS1130DELCO
DRS7280DELCO
F032111752CARGO
IS0704ISKRA / LETRIKA
LRS00570LUCAS
LRS01985LUCAS
LRS01988LUCAS
LRS1985LUCAS
LRS1988LUCAS
LRS570LUCAS
MAV121910SIOM
MAV122330SIOM
MS 272MAHLE
MS 352MAHLE
MSN206MAGNETI MARELLI
PTC-4033POWER TRUCK
S12BH0668A2SIDAT
S9046AS-PL
STR22004WOODAUTO
STRL2573EFFE
STX200747STARDAX
S9046
