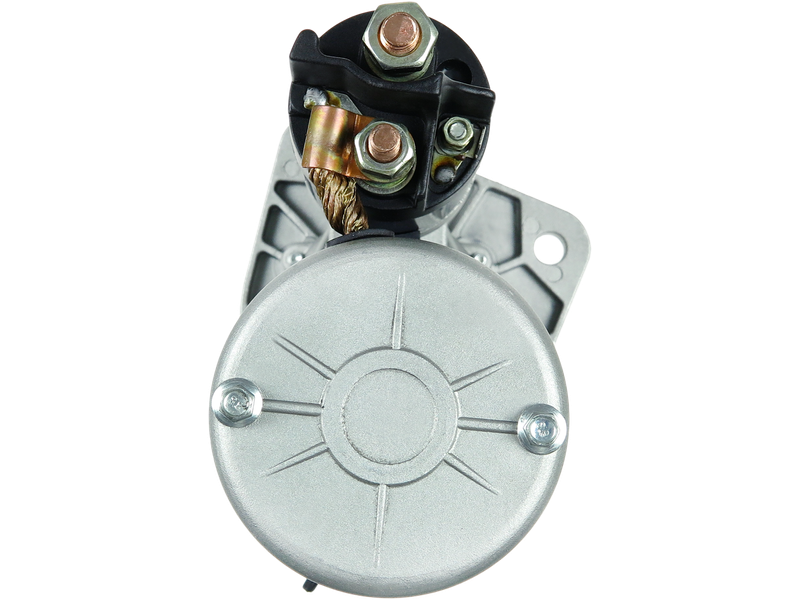

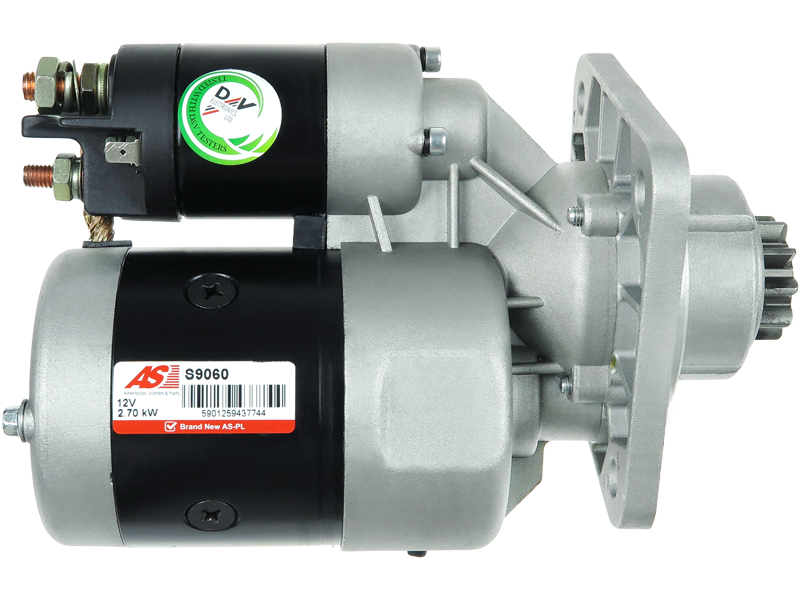

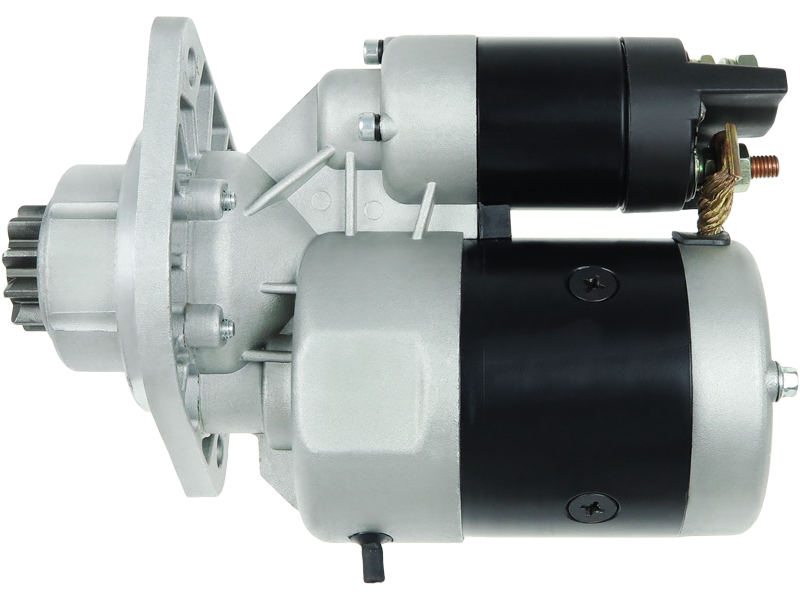

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 411.09 including GST
NZ$ 357.47 excluding GST
or four payments of $102.77
with
Learn More
each
S9060
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
9142745Associated Numbers
0001367077 0001367081 101205 101205K 101205M 116130 25-2226 25-3148 8EA737878-001 9142745 AL70852 AL81154 CS1205 DRS3818 EAA-111821 LRS01622 RE501157 S9060Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 234 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | Various Models |
Reference Information
| 0001367077 | BOSCH |
| 0001367081 | BOSCH |
| 101205 | KUHNER |
| 101205K | KUHNER |
| 101205M | KUHNER |
| 112442 | CARGO |
| 116130 | CARGO |
| 25-2226 | ELSTOCK |
| 25-3148 | ELSTOCK |
| 6005706640 | CLAAS |
| 7700045291 | RENAULT |
| 8EA737878-001 | HELLA |
| 9142745 | MAGNETON |
| CGB-23818 | AINDE |
| CS1205 | HC PARTS |
| DRS3818 | DELCO |
| F032112442 | CARGO |
| F032116130 | CARGO |
| LRS01622 | LUCAS |
| LRS1622 | LUCAS |
| MAV122280 | SIOM |
| RE501157 | JOHN DEERE |
| S9060 | AS-PL |
| SE501856 | JOHN DEERE |
| STRS677 | 3EFFE |
| STX200383 | STARDAX |
| STX200904 | STARDAX |
| STX201006 | STARDAX |
| STX201072 | STARDAX |
Video/Publications
