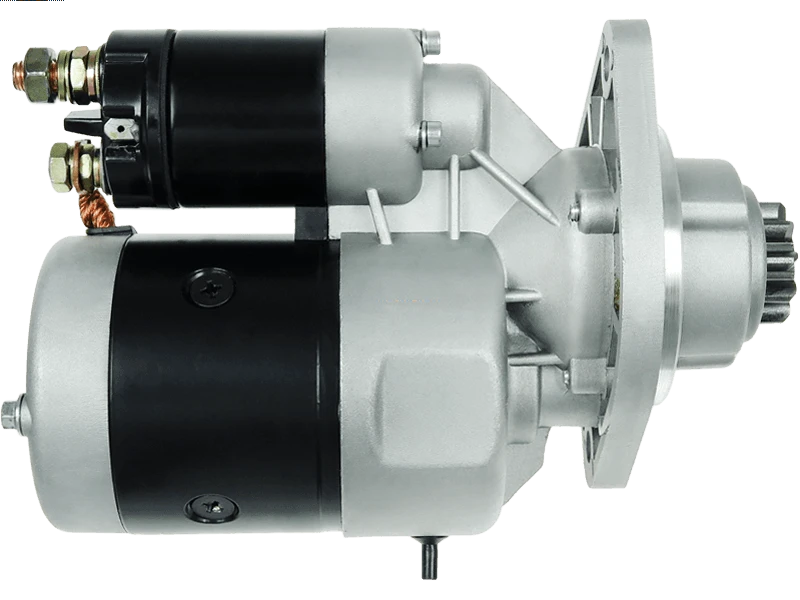

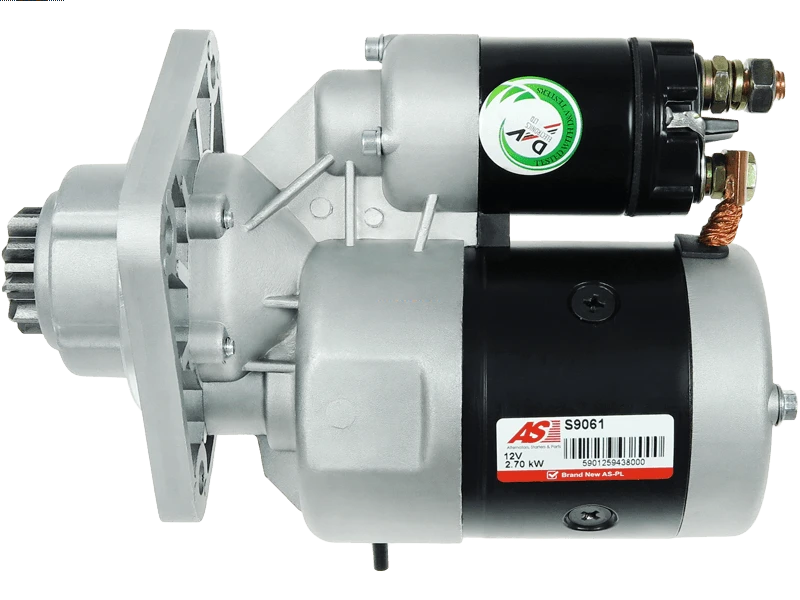

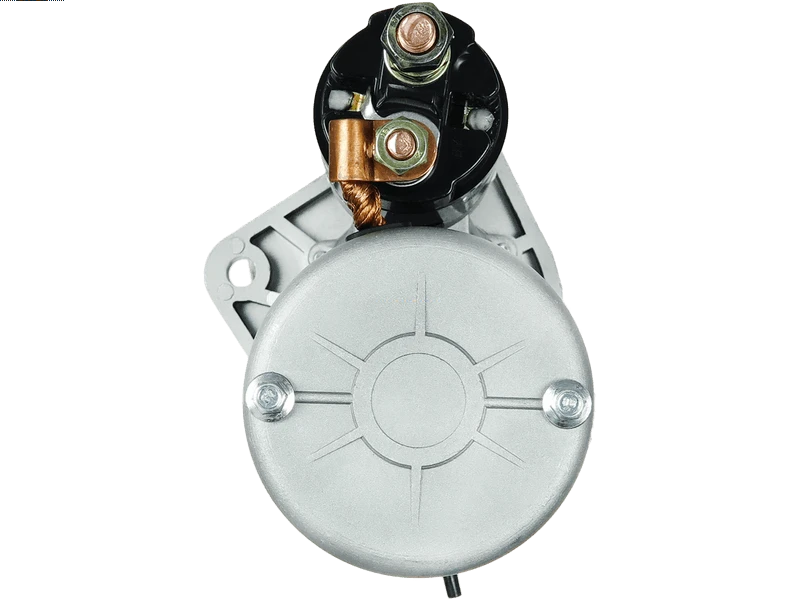

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 367.60 including GST
NZ$ 319.65 excluding GST
or four payments of $91.90
with
Learn More
each
S9061
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
9142741Associated Numbers
0001359124 0001367032 0986013690 10604 10604R 10944 11.130.179 11.130.414 20500147 63227512 9142741 AZJ3119 AZJ3525 IS0179 STR31000Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 236 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 49 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 88 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SISU | Engine | [SISU 310 B] | |
| SISU | Engine | [SISU310B] | |
| SISU | Engine | [SISU 311 C] | |
| SISU | Engine | [SISU311C] | |
| SISU | Engine | [SISU 311CS] | |
| SISU | Engine | [SISU311CS] | |
| SISU | Engine | [SISU 411] | |
| SISU | Engine | [SISU411] | |
| SISU | Engine | [SISU 411 B] | |
| SISU | Engine | [SISU411B] | |
| SISU | Engine | [SISU 411 BS] | |
| SISU | Engine | [SISU411BS] | |
| SISU | Engine | [SISU 411 C] | |
| SISU | Engine | [SISU411C] | |
| SISU | Engine | [TD 27 DS 3] | |
| SISU | Engine | [TD27DS3] | |
| SISU | Engine | [TD 27 DS 4] | |
| SISU | Engine | [TD27DS4] | |
| SISU | Engine | [TD 33 DS 4] | |
| SISU | Engine | [TD33DS4] | |
| SISU | Engine | [TD 33 DS 5] | |
| SISU | Engine | [TD33DS5] | |
| SISU | Engine | [TD 33 DS 6] | |
| SISU | Engine | [TD33DS6] | |
| SISU | Engine | [TD 44 DS 8] | |
| SISU | Engine | [TD44DS8] | |
| SISU DIESEL | Engine | [SISU 310 B] | |
| SISU DIESEL | Engine | [SISU 311 C] | |
| SISU DIESEL | Engine | [SISU 311CS] | |
| SISU DIESEL | Engine | [SISU 411] | |
| SISU DIESEL | Engine | [SISU 411 B] | |
| SISU DIESEL | Engine | [SISU 411 BS] | |
| SISU DIESEL | Engine | [SISU 411 C] | |
| SISU DIESEL | Engine | [TD 27 DS 3] | |
| SISU DIESEL | Engine | [TD 27 DS 4] | |
| SISU DIESEL | Engine | [TD 33 DS 4] | |
| SISU DIESEL | Engine | [TD 33 DS 5] | |
| SISU DIESEL | Engine | [TD 33 DS 6] | |
| SISU DIESEL | Engine | [TD 44 DS 8] | |
| URSUS | C-330M | ||
| URSUS | C-335 | ||
| URSUS | C-360 | ||
| VALMET | 1100 | ||
| VALMET | 1102 | [411BS] | |
| VALMET | 1112 | ||
| VALMET | 1203 | [411CX] | |
| VALMET | 305 | [TD27DS3] | |
| VALMET | 405 | [TD27DS4] | |
| VALMET | 455 | [TD33DS4] | |
| VALMET | 500 | [310B] | 01.1969-01.1975 |
| VALMET | 502 | [310B] | 01.1969-01.1975 |
| VALMET | 504 | [D27B] | |
| VALMET | 505 | [TD33DS5] | |
| VALMET | 542 | [310B] | 01.1969-01.1975 |
| VALMET | 6000 | 01.1990- | |
| VALMET | 602 | [311C/311CS] | |
| VALMET | 604 | [D33C/TD33C] | |
| VALMET | 605 | [TD33DS6] | |
| VALMET | 655 | [D44D7] | |
| VALMET | 6600 | 01.1990- | |
| VALMET | 700 | 01.1971-01.1972 | |
| VALMET | 702S | [411B/411BS] | |
| VALMET | 703 | [411C] | |
| VALMET | 705 | [TD44DS7] | |
| VALMET | 712 | 01.1971-01.1972 | |
| VALMET | 755 | [TD] | |
| VALMET | 802 | [411CS] | |
| VALMET | 803 | [411CS] | |
| VALMET | 805 | [TD44DS8] | |
| VALMET | 855 | [TD44DS8] | |
| VALMET | 900 | 01.1969- | |
| VALMET | 903 | [411CS9] |
Reference Information
0001367032 STR31000 AZJ3119 0986013690 AZJ3525 MS S9061 9142741 10604R 20500147 0001359124 184 220238 STRS526 10604 10944 IS0179 11.130.179 63227512 11.130.414 CGB-23147 MAV3650Video/Publications
