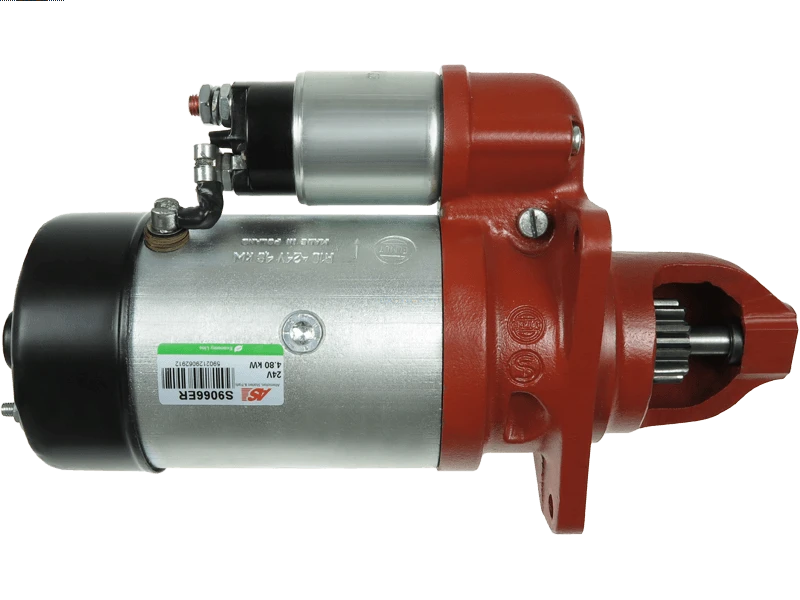

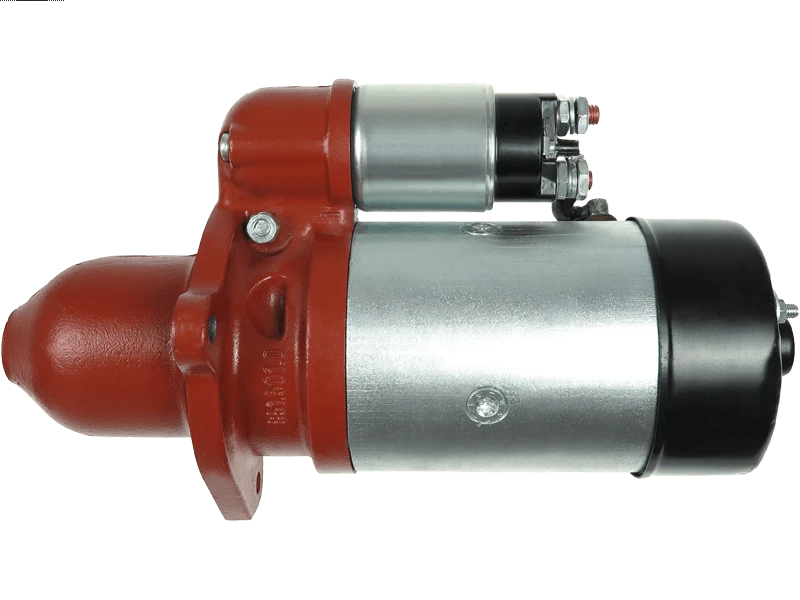

Remanufactured AS-PL Starter motor
ECONOMY LINE
AS-PL
ELMOT
Price:
NZ$ 956.26 including GST
NZ$ 831.53 excluding GST
or four payments of $239.07
with
Learn More
UOM:
each
Product Code:
S9066ER
No stock in NZ currently
No stock in NZ currently
Associated Numbers
0001364001 19024805 45-1374 LRS01864 R10.01 R10A STD4805Specifications
| Kilowatt | 4.80 kW |
| Length (L.1) | 352 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Economy Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | ELMOT |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BIZON | 5056 Combine | [SW-400] | |
| BIZON | 5058 Combine | [SW-400] | |
| BIZON | Various Models | [SW-400] | |
| BIZON | Z040 | [SW-400] | |
| BIZON | Z042 | [SW-400] | |
| BIZON | Z050 | [SW-400] | |
| STAR | 742 | [4CT107] | |
| STAR | 742 | [6CT107] | |
| STAR | 742 | [SW-400] |
Reference Information
| 0001364001 | BOSCH |
| 108110 | FARCOM |
| 19024805 | DELCO |
| 20401647EL | REAL |
| 45-1374 | ELSTOCK |
| 600081114 | DRI |
| 6010746.3 | SANDO |
| AC-CBS6016 | ACAUTO |
| CST10746ES | CASCO |
| LRS01864 | LUCAS |
| LRS1864 | LUCAS |
| MAV127460EL | SIOM |
| PRSF742 | 3EFFE |
| R10.01 | ELMOT |
| R10A | ELMOT |
| ST02539 | TMI |
| STD4805 | KRAUF |
| STRF742 | 3EFFE |
| STRX053 | ELECTROLOG |
Video/Publications
