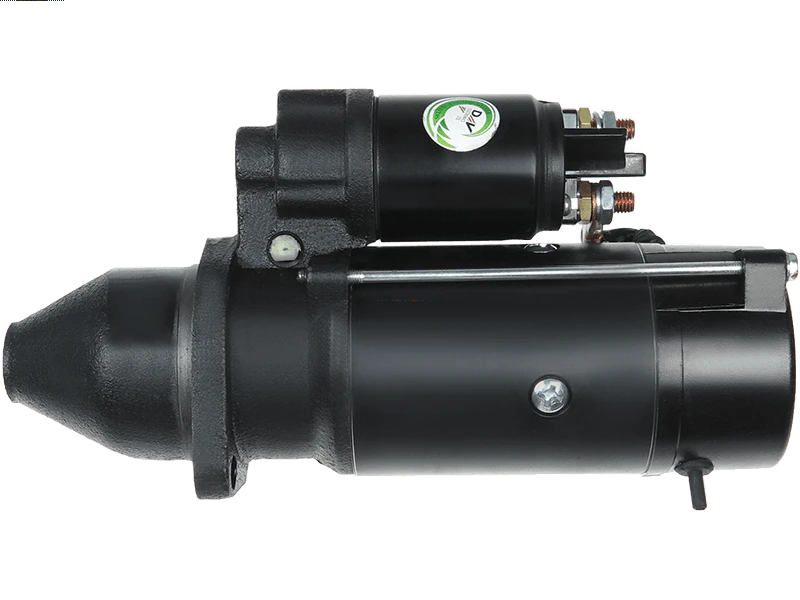

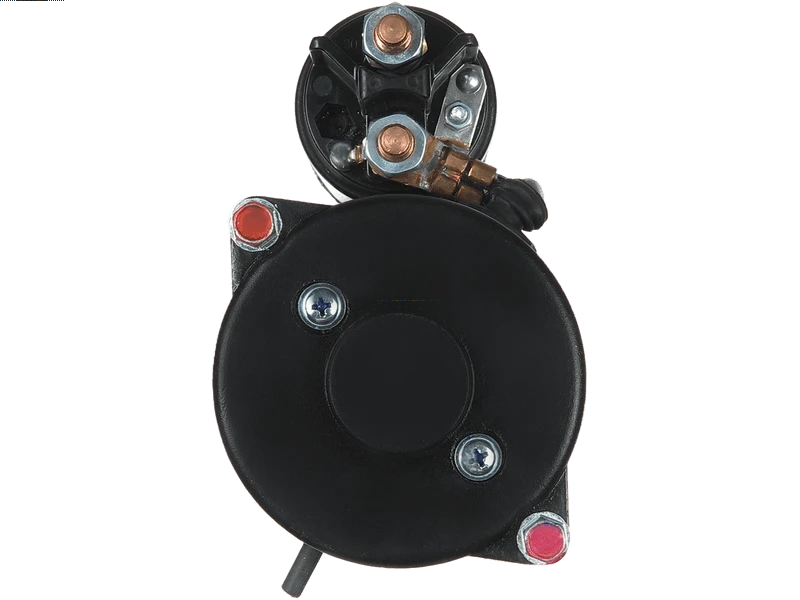

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 536.45 including GST
NZ$ 466.48 excluding GST
or four payments of $134.11
with
Learn More
UOM:
each
Product Code:
S9069
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
MS89Associated Numbers
11.130.762 11.130.793 11.130.876 11.131.374 11.131.883 11.132.062 11320110 18422N 20419241OE 273-42107 6021142 630.503.102 8687R 91-23-6509 91-23-6509N AZF4284 AZF4521 AZF4596 AZJ3274 AZJ3307 CST21142 CST21142AS CST21142ES CST21142GS CST21142OS CST21142RS IS0793 IS1300 MAHMS89 MS419 MS89 RE501002 RE505745 S9069 TS-6185Specifications
| Kilowatt | 3.40 kW |
| Length (L.1) | 321 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 35 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOBCAT | 975 | 01.1989-01.1990 | |
| BOBCAT | 975 | 4-276 | 01.1985-12.1990 |
| BOBCAT | 975 | 01.1989-01.1990 | |
| CLAAS | 540 4.0 | 4.039T | - |
| CLAAS | 550 4.0 | 4.039T | - |
| CLAAS | 65 | 3.029D | - |
| CLAAS | 75 | 4.039 | - |
| CLAAS | 75 | 4.045D | - |
| CLAAS | 75X | - | |
| CLAAS | 85 | - | |
| CLARK | 795 | 01.1989-01.1990 | |
| CLARK | 795 | 4-276 | 01.1989-01.1990 |
| CLARK | 795 | 01.1989-01.1990 | |
| COMPAC | T40 2.9 | 3029 | 01.1997- |
| COMPAC | T40D 2.9 | 3029 | 01.1997- |
| COMPAC | T40PD 2.9 | 3029 | 01.1997- |
| COMPAC | T50 2.9 | 3029 | 01.1997- |
| COMPAC | T50D 2.9 | 3029 | 01.1997- |
| COMPAC | T50PD 2.9 | 3029 | 01.1997- |
| COMPAC | T60 2.9 | 3029 | 01.1997- |
| COMPAC | T60D 2.9 | 3029 | 01.1997- |
| COMPAC | T60PD 2.9 | 3029 | 01.1997- |
| INGERSOLL RAND | P 185 | ||
| INGERSOLL RAND | P 185 | 01.1997-01.0001 | |
| INGERSOLL RAND | P 250 | ||
| INGERSOLL RAND | P 250 | 01.1997-01.0001 | |
| JOHN DEERE | 1020 2.7 | 3.164DL-04 | 04.1971-07.1975 |
| JOHN DEERE | 1030 2.7 | 3.164DL-04 | 08.1975-08.1979 |
| JOHN DEERE | 1030 OU 2.7 | 3.164DL-04 | 08.1975-08.1979 |
| JOHN DEERE | 1032 4.0 | 10.1992-10.1998 | |
| JOHN DEERE | 1040 2.9 | 3.179DL-06 | 09.1979-10.1986 |
| JOHN DEERE | 1040V 2.9 | 3.179DL-06 | 09.1979-10.1986 |
| JOHN DEERE | 1042 4.0 | 10.1992-10.1998 | |
| JOHN DEERE | 1052 4.0 | 10.1992-10.1998 | |
| JOHN DEERE | 1055 5.9 | 10.1992-10.1998 | |
| JOHN DEERE | 1068 5.9 | 01.1992-10.1996 | |
| JOHN DEERE | 1075 5.9 | 10.1981-12.1996 | |
| JOHN DEERE | 1085 7.6 | 02.1982-02.1997 | |
| JOHN DEERE | 1130 2.7 | 3.164DL-13 | 08.1975-08.1979 |
| JOHN DEERE | 1140 2.9 | 3.179DL-01 | 09.1979-10.1986 |
| JOHN DEERE | 1140F 2.9 | 3.179DL-01 | 09.1979-10.1986 |
| JOHN DEERE | 1140V 2.9 | 3.179DL-01 | 09.1979-10.1986 |
| JOHN DEERE | 1530 2.7 | 3.164DL-13 | 07.1972-07.1975 |
| JOHN DEERE | 2254 | 01.1985-01.1992 | |
| JOHN DEERE | 2256 | 01.1985-01.1992 | |
| JOHN DEERE | 2264 | 01.1985-01.1992 | |
| JOHN DEERE | 2266 | 01.1985-01.1992 | |
| JOHN DEERE | 2450 | 01.1985-01.1992 | |
| JOHN DEERE | 2650 | 01.1985-01.1992 | |
| JOHN DEERE | 2850 | 01.1985-01.1992 | |
| JOHN DEERE | 3130 5.4 | 6.329DL-11 | 09.1972-08.1979 |
| JOHN DEERE | 3140 5.9 | 6.359DL-03 | 09.1979-05.1987 |
| JOHN DEERE | 3350 | 01.1985-01.1992 | |
| JOHN DEERE | 3650 | 01.1985-01.1992 | |
| JOHN DEERE | MD 1065 5.9 | 6.359TZ-03 | 03.1994- |
| JOHN DEERE | MD 1075 5.9 | 6.359TZ-02 | 03.1994- |
| JOHN DEERE | MD 1085 5.9 | 6.466TZ-01 | 03.1994- |
| JOHN DEERE | MD 925 2.7 | 3.164DZ-02 | 11.1974-09.1978 |
| JOHN DEERE | MD 952 3.9 | 4.239TZ-01 | 11.1977-10.1983 |
| JOHN DEERE | MD 955 5.4 | 6.329DZ-02 | 06.1975-10.1983 |
| JOHN DEERE | MD 960 5.4 | 6.329DZ-02 | 08.1972-08.1974 |
| JOHN DEERE | MD 965 5.9 | 6.359TZ-03 | 09.1975-10.1983 |
| JOHN DEERE | MD 968H 5.9 | 6.359TZ-03 | 04.1981-10.1983 |
| JOHN DEERE | MD 970 5.9 | 6.359TZ-01 | 09.1974-07.1975 |
| JOHN DEERE | MD 975 5.9 | 6.359TZ-02 | 09.1975-05.1981 |
| JOHN DEERE | Series 2050 2150 | 01.1983- | |
| JOHN DEERE | Series 2050 2150 | 01.1983- | |
| JOHN DEERE | Series 2050 2350 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2350 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2550 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2550 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2750 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2750 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2950 | 01.1983-12.1986 | |
| JOHN DEERE | Series 3000 3100 A | 3029DRT65 | 01.1995-12.1998 |
| JOHN DEERE | Series 3000 3400 A, 3400 AX | 01.1995-12.1998 | |
| JOHN DEERE | Series 3010 3110 A | 01.1998-12.2001 | |
| JOHN DEERE | Series 3010 3410 A | 01.1998-12.2001 | |
| JOHN DEERE | Series 5000 5300 | 3029DF150 | 01.1996-12.2000 |
| JOHN DEERE | Series 5000 5400 | 3029TAT50 | 01.1996-12.2000 |
| JOHN DEERE | Series 5000 5500 | 4039TAT01 | 01.1996-12.2000 |
| JOHN DEERE | Series 5010 5410 | 4045DLV50 | 01.1998-12.2001 |
| JOHN DEERE | Series 5010 5410 | 4045DLV51 | 01.1998-12.2001 |
| JOHN DEERE | Series 5010 5510 | 4045TAT50 | 01.1998-12.2001 |
| JOHN DEERE | Series 5010 5510 | 4045TLV50 | 01.1998-12.2001 |
| JOHN DEERE | Series 5010 5510 | 4045TLV51 | 01.1998-12.2001 |
| JOHN DEERE | Series 5015 5415, 5515, 5615 | 01.2003-12.2008 | |
| JOHN DEERE | Series 5020 5620, 5720 | 01.2003- | |
| JOHN DEERE | Series 6000 6100 | 4045DL002 | 01.1992-12.1997 |
| JOHN DEERE | Series 6000 6200 | 4039TL004 | 01.1992-12.1997 |
| JOHN DEERE | Series 6000 6300 | 4039TL006 | 01.1992-12.1997 |
| JOHN DEERE | Series 6000 6400 | 4045TL003 | 01.1992-12.1997 |
| JOHN DEERE | Series 6000 6403 | 01.1992-12.1997 | |
| JOHN DEERE | Series 6000 6600 | 6059TL001 | 01.1994-12.1997 |
| JOHN DEERE | Series 6000 6603 | 01.1997- | |
| JOHN DEERE | Series 6010 6010 SE, 6110, 6110 SE | 01.1997-12.2003 | |
| JOHN DEERE | Series 6010 6210 | 01.1999-12.2003 | |
| JOHN DEERE | Series 6010 6310, 6310SE, 6410 SE | 01.1999-12.2003 | |
| JOHN DEERE | Series 6010 6310L | 01.1999-12.2003 | |
| JOHN DEERE | Series 6020 6020 SE, 6120 | 01.2004-12.2007 | |
| JOHN DEERE | Series 6020 6320, 6420 | 01.2002-12.2007 | |
| JOHN DEERE | Series 6020 6520 | 01.2002-12.2007 | |
| JOHN DEERE | Series 6 6105R | 4045HL497 | 01.2012- |
| JOHN DEERE | Series 6 6210R | 6068HL497 | 01.2012- |
| JOHN DEERE | Series 6 6210R | 10.2011- | |
| RENAULT AGRICULTURE | Ares 540 | 4039T | - |
| RENAULT AGRICULTURE | Ares 550 | 4039T | - |
| RENAULT AGRICULTURE | Ceres 65 | 3029D | - |
| RENAULT AGRICULTURE | Ceres 75 | 4039D | - |
| RENAULT AGRICULTURE | Ceres 75X | 4039D | - |
| RENAULT AGRICULTURE | Ceres 85 | 4045D | - |
| RENAULT AGRICULTURE | Ceres 85X | 4045D | - |
| RENAULT AGRICULTURE | Ceres 95 | 4039T | - |
| RENAULT AGRICULTURE | Ceres 95X | 4039T | - |
| RENAULT AGRICULTURE | Cergos 330 | 4045D | - |
| RENAULT AGRICULTURE | Cergos 340 | 4039T | - |
| RENAULT AGRICULTURE | Cergos 350 | 4045T | - |
| RENAULT AGRICULTURE | Ergos 105 | 4045T | - |
| RENAULT AGRICULTURE | Ergos 85 | 4045D | - |
| RENAULT AGRICULTURE | Ergos 95 | 4039T | - |
Reference Information
| 11.130.793 | ISKRA / LETRIKA |
| 11.131.374 | ISKRA / LETRIKA |
| 11.139.271 | ISKRA / LETRIKA |
| 182-30105 | ROBERT'S |
| 20419241BN | REAL |
| 20419241OE | REAL |
| 273-42107 | DIXIE |
| 6005012976 | CLAAS |
| 6005012976 | RENAULT |
| 6021142.0 | SANDO |
| 6021142.1 | SANDO |
| 630.503.102.090 | WAI |
| 630.503.102.311 | WAI |
| 630.503.102.312 | WAI |
| 72735717 | MAHLE |
| 7700044184 | CLAAS |
| 7700044184 | RENAULT |
| 91-23-6509 | WILSON |
| 91-23-6509N | WILSON |
| AL110503 | JOHN DEERE |
| AL110504 | JOHN DEERE |
| AL110597 | JOHN DEERE |
| AL110598 | JOHN DEERE |
| AL62772 | JOHN DEERE |
| AL78760 | JOHN DEERE |
| AZF4596 | ISKRA / LETRIKA |
| AZF4928 | ISKRA / LETRIKA |
| CST21142AS | CASCO |
| CST21142GS | CASCO |
| IS0793 | ISKRA / LETRIKA |
| MAHMS89 | WOODAUTO |
| MS89 | MAHLE |
| MS89A | MAHLE |
| RE500733 | JOHN DEERE |
| RE50095 | JOHN DEERE |
| RE501002 | JOHN DEERE |
| RE505745 | JOHN DEERE |
| RE60384 | JOHN DEERE |
| S134.443 | WAI |
| S144.524 | WAI |
| S9069 | AS-PL |
| STR78014 | ELECTROLOG |
| TS-6185 | DIXIE |
| UD102605S | AS-PL |
Video/Publications
