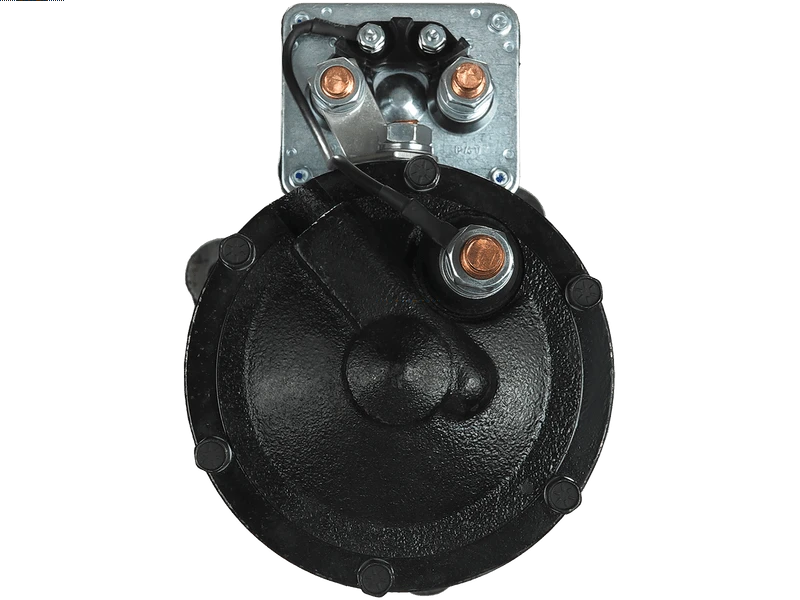

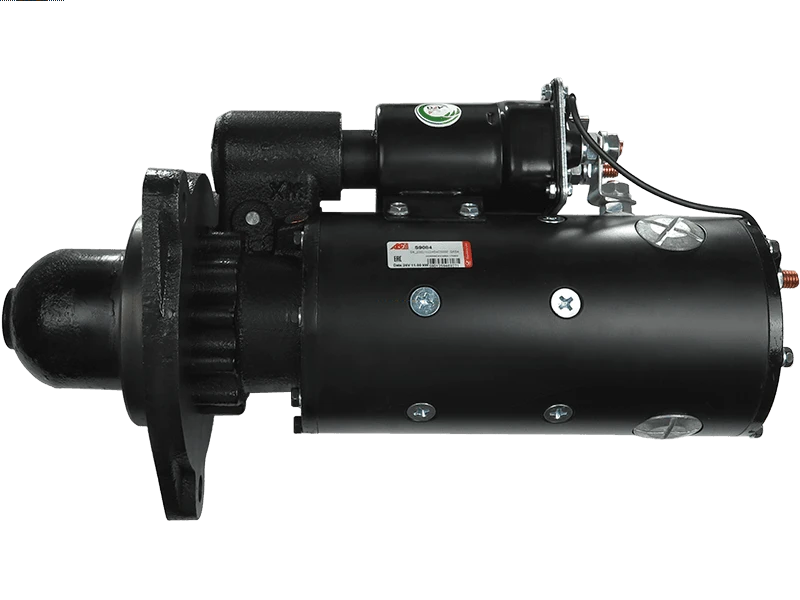

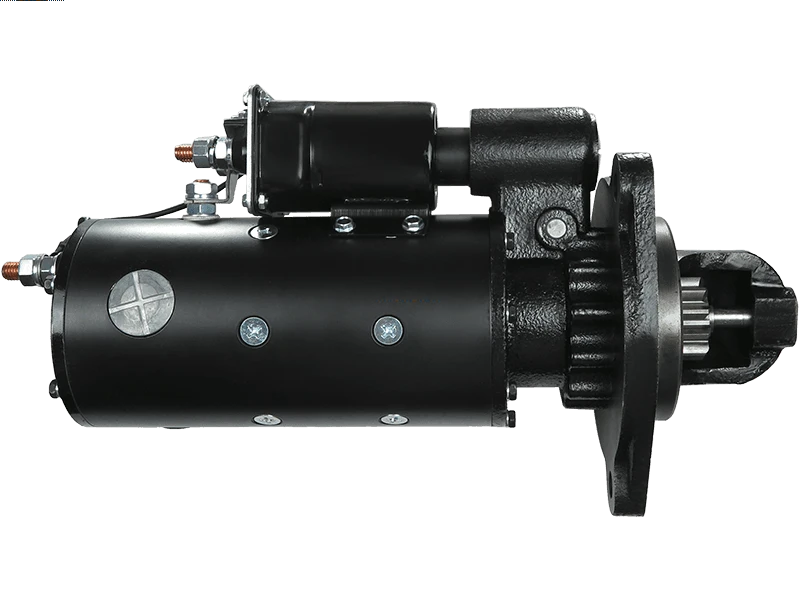

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
NIKKO
Price:
NZ$ 1,436.28 including GST
NZ$ 1,248.94 excluding GST
or four payments of $359.07
with
Learn More
each
S9084
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0210003790Associated Numbers
0210002311 0210002312 0210002570 0210003790 0210004420 03517020270 03517020271 03517020810 03517020811 03517020812 03517020820 03517020821 03517020822 110559 29000A 600-813-2750 600-813-2752 600-813-2753 6008132711 6008132740 6008132741 6008132750 6008132751 6008132752 6008132753 6008134810 6008134811 6008134812 6008134822 6008134881 JS743 STK0743 STR75600Specifications
| Kilowatt | 11 kW |
| Length (L.1) | 527 mm |
| Mount Hole Center - Center (O.1) | 196 mm |
| Mount Hole Center - Center (O.2) | 196 mm |
| Mount Hole Center - Center (O.3) | 167 mm |
| Mount Hole Diameter (C.1) | 17.50 mm |
| Mount Hole Diameter (C.2) | 17.50 mm |
| Mount Hole Diameter (C.3) | 17.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 45.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 136 mm |
| Unit Type | NIKKO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KOMATSU | D150 | [6D155] | 01.1978-12.1986 |
| KOMATSU | D150A | [6D155] | 01.1986-12.1995 |
| KOMATSU | D155 | [4D155] | 01.1978-12.1986 |
| KOMATSU | D155 | [6D155] | 01.1978-12.1986 |
| KOMATSU | D155A | [6D155] | 01.1986-12.1995 |
| KOMATSU | D155C | [6D155] | 01.1986-12.1995 |
| KOMATSU | D355 | [4D155] | 01.1978-12.1986 |
| KOMATSU | D355 | [6D155] | 01.1978-12.1986 |
| KOMATSU | D355C | [6D155] | 01.1986-12.1995 |
| KOMATSU | D95 | [4D155] | 01.1978-12.1986 |
| KOMATSU | D95 | [6D155] | 01.1978-12.1986 |
| KOMATSU | D95S | [6D155] | 01.1978-12.1986 |
Reference Information
| 0210002311 | NIKKO |
| 0210002312 | NIKKO |
| 0210002570 | NIKKO |
| 0210003790 | NIKKO |
| 0210004420 | NIKKO |
| 03517020270 | SAWAFUJI |
| 03517020271 | SAWAFUJI |
| 03517020810 | SAWAFUJI |
| 03517020811 | SAWAFUJI |
| 03517020812 | SAWAFUJI |
| 03517020820 | SAWAFUJI |
| 03517020821 | SAWAFUJI |
| 03517020822 | SAWAFUJI |
| 110559 | CARGO |
| 29000A | WAI / TRANSPO |
| 6008132711 | KOMATSU |
| 6008132740 | KOMATSU |
| 6008132741 | KOMATSU |
| 6008132750 | KOMATSU |
| 600-813-2750 | KOMATSU |
| 6008132751 | KOMATSU |
| 6008132752 | KOMATSU |
| 600-813-2752 | KOMATSU |
| 6008132753 | KOMATSU |
| 600-813-2753 | KOMATSU |
| 6008134810 | KOMATSU |
| 6008134811 | KOMATSU |
| 6008134812 | KOMATSU |
| 6008134822 | KOMATSU |
| 6008134881 | KOMATSU |
| F032110559 | CARGO |
| JS743 | HC PARTS |
| STK0743 | KRAUF |
| STR75600 | WOODAUTO |
| STR8802 | ELECTROLOG |
| STRS773 | 3EFFE |
Video/Publications
