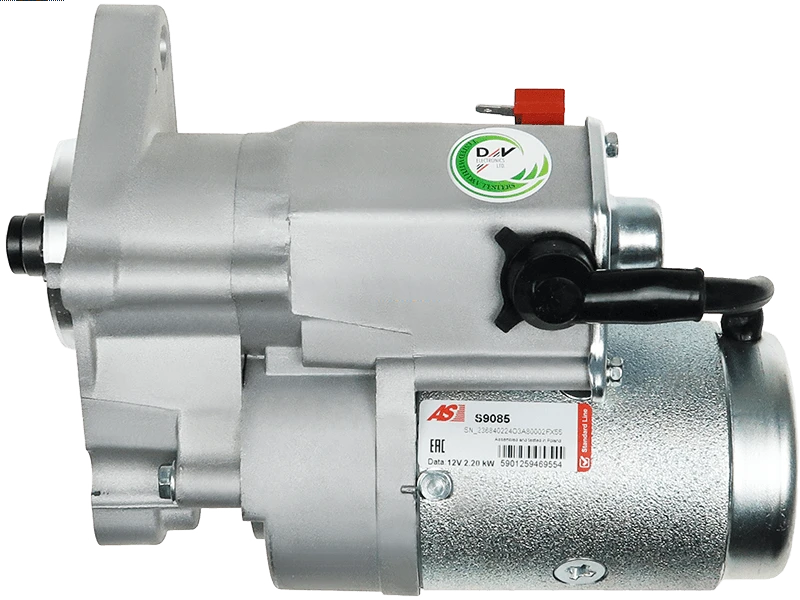

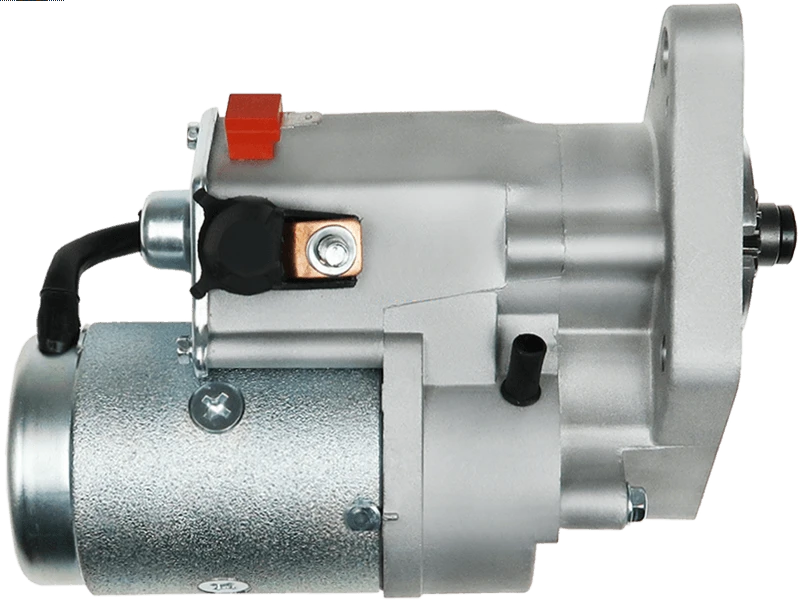

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
POONGSUNG
Price:
NZ$ 329.72 including GST
NZ$ 286.71 excluding GST
or four payments of $82.43
with
Learn More
each
S9085
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
03111-4240Associated Numbers
03111-4240 03111-4241 101446 114732 12097 150.536.103 20493111OE 22.1446 25-3359 33187N 36100-4X210 36100-4X211 6032111 88212542 AEY2187 CS1446 CST32111GS DRS0147 EAA-121097 LRS02187 S9085 STR85401Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 236 mm |
| Mount Hole Center - Center (O.1) | 75 mm |
| Mount Hole Center - Center (O.2) | 84 mm |
| Mount Hole Center - Center (O.3) | 140 mm |
| Mount Hole Diameter (C.1) | M12x1.25 mm |
| Mount Hole Diameter (C.2) | M12x1.25 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 13 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | POONGSUNG |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | TeRacan 2.9 CRDi | [J3] | 11.2001-07.2003 |
| HYUNDAI | TeRacan 2.9 CRDi | [J3] | 11.2003- |
| HYUNDAI | TeRacan 2.9 CRDi | [J3] | 12.2001- |
Reference Information
| 03111-4240 | POONGSUNG |
| 03111-4241 | POONGSUNG |
| 101446 | KUHNER |
| 114732 | CARGO |
| 12097 | EAI |
| 150.536.103 | PSH |
| 150.536.103.461 | PSH |
| 20493111OE | REAL |
| 220379 | ERA |
| 22.1446 | LAUBER |
| 25-3359 | ELSTOCK |
| 33187N | WAI / TRANSPO |
| 336461 | LOGISTIK |
| 36100-4X210 | HYUNDAI / KIA |
| 36100-4X211 | HYUNDAI / KIA |
| 6032111 | SANDO |
| 88212542 | POWERMAX |
| AEY2187 | AUTOELECTRO |
| ANM12367X | ANDEL |
| CGB-24240 | AINDE |
| CS1446 | HC PARTS |
| CST32111GS | CASCO |
| DRS0147 | DELCO |
| F032114732 | CARGO |
| LRS02187 | LUCAS |
| LRS2187 | LUCAS |
| RNL4X210 | RNL |
| S12VA0850 | SIDAT |
| S12VA0850A2 | SIDAT |
| S9085 | AS-PL |
| STR6244 | ELECTROLOG |
| STR85401 | WOODAUTO |
| STRL254 | 3EFFE |
| STX200480 | STARDAX |
Video/Publications
