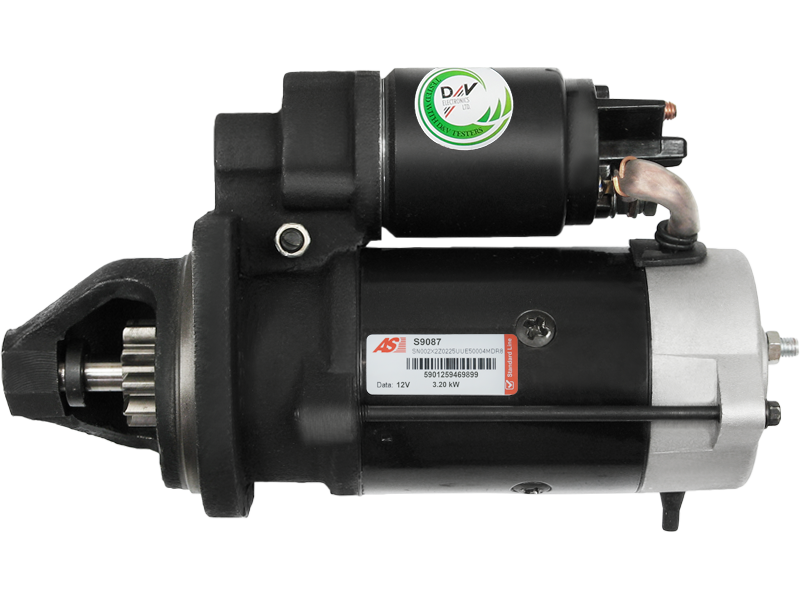

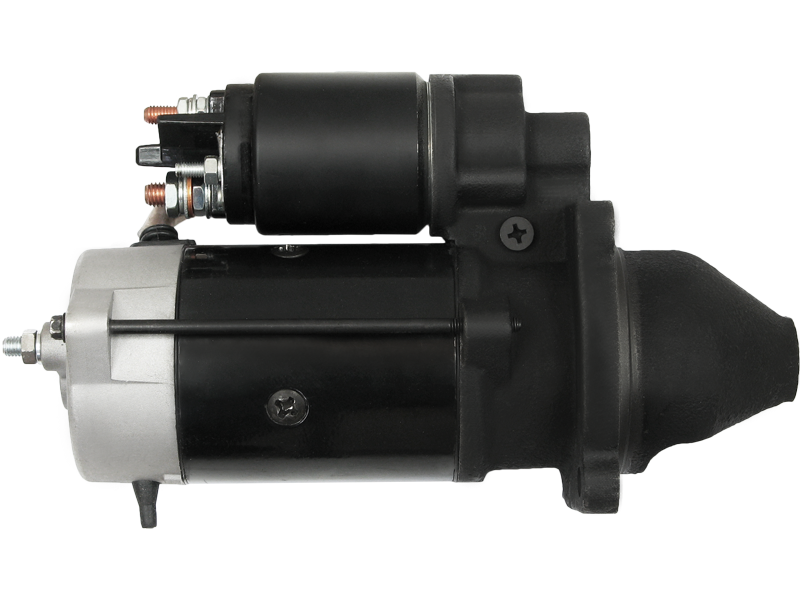

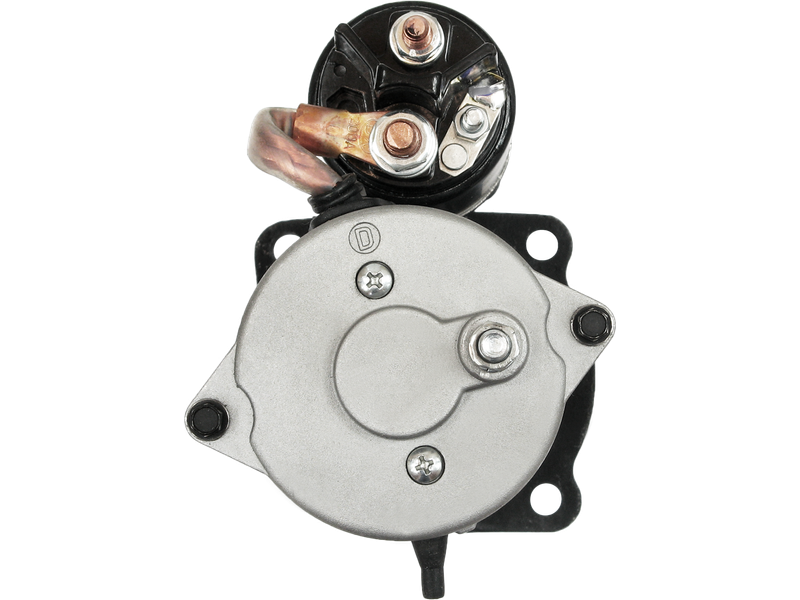

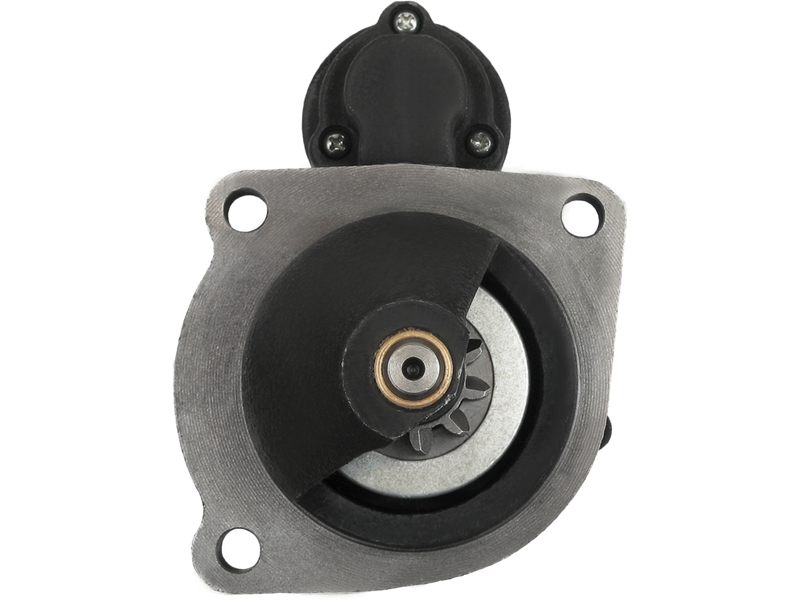

S9087 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 459.24 including GST

NZ$ 399.34 excluding GST



or four payments of $114.81 with
Afterpay Payment Offer Learn More

each
S9087
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

2873K625
11.131.605 11.131.761 11.131.781 11.131.793 11.131.942 11.131.947 11.131.989 11.132.036 114388 18940N 18940N-IK 19083018 20419801OE 225-3149 25-4149 2873K624 2873K625 2873K626 2873K634 3873K625 6021108 7169477 860715 9142903 AZE4150 AZE4170 AZE4173 AZE4175 AZE4197 AZE4201 AZE4220 CST21108GS DRS3954 DRS3954N LRS02477 M100R2015SE S9087 STR60623
Kilowatt3.20 kW
Length (L.1)293 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
No./Teeth (Replaces)10 qty
OEM ProductNo
Pinion at Rest (B)29.50 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)89 mm
Unit TypeISKRA / LETRIKA
Voltage12 V
Make Model Type Year
HATTAT A-Series
JCB 8 [Perkins6-354] 01.1969-
PERKINS Various Models
11.131.605ISKRA / LETRIKA
11.131.761ISKRA / LETRIKA
11.131.781ISKRA / LETRIKA
11.131.793ISKRA / LETRIKA
11.131.942ISKRA / LETRIKA
11.131.947ISKRA / LETRIKA
11.131.956ISKRA / LETRIKA
11.131.989ISKRA / LETRIKA
11.132.036ISKRA / LETRIKA
11.139.274ISKRA / LETRIKA
114388CARGO
116308CARGO
18940LESTER
18940NWAI / TRANSPO
18940N-IKWAI / TRANSPO
18940RWAI / TRANSPO
19083018DELCO
20404071BNREAL
20419801OEREAL
220702ERA
225-3149CATERPILLAR
25-4149ELSTOCK
254193KUHNER
254193MKUHNER
2873K405PERKINS
2873K624PERKINS
2873K625PERKINS
2873K626PERKINS
2873K634PERKINS
296194600SAME
312-7540CATERPILLAR
329-0290CATERPILLAR
331834LOGISTIK
331837LOGISTIK
3542185M93MASSEY FERGUSON
3586849PERKINS
365-3422CATERPILLAR
3821818M91MASSEY FERGUSON
3821818M93MASSEY FERGUSON
3873K625PERKINS
3873K627PERKINS
4227054M91AGCO
6021108.1SANDO
6030170.0SANDO
63280041MAGNETI MARELLI
700336A1MASSEY FERGUSON
700.504.103.050PSH
700.504.103.090PSH
700.504.103.098PSH
700.504.103.208PSH
700.504.103.265PSH
700.504.103.311PSH
700.504.103.320PSH
71440159JCB
714/40159JCB
71440159RJCB
714/40159RJCB
71440231JCB
714/40231JCB
71440531JCB
714/40531JCB
71440536JCB
714/40536JCB
7169477BOBCAT
860715PRESTOLITE
8818300FRIESEN
88214602POWERMAX
91-19-2515WILSON
9142903MAGNETON
958579MANITOU
AZE4150ISKRA / LETRIKA
AZE4170ISKRA / LETRIKA
AZE4173ISKRA / LETRIKA
AZE4175ISKRA / LETRIKA
AZE4197ISKRA / LETRIKA
AZE4201ISKRA / LETRIKA
AZE4204ISKRA / LETRIKA
AZE4215ISKRA / LETRIKA
AZE4220ISKRA / LETRIKA
AZE4724ISKRA / LETRIKA
CGB-93405AINDE
CST21108GSCASCO
CST30170ASCASCO
DRS3954DELCO
DRS3954NDELCO
E730163011KUBOTA
F032114388CARGO
F032116308CARGO
IS1201ISKRA / LETRIKA
LETIS1201WOODAUTO
LRS02477LUCAS
LRS2477LUCAS
M100R2015SEPRESTOLITE
M1T84181MITSUBISHI
MAV231080SIOM
MAV321700SIOM
MS399MAHLE
MS399AMAHLE
MSN8041MAGNETI MARELLI
PRSL2813EFFE
PRSS0233EFFE
S134.985PSH
S145.731PSH
S9087AS-PL
STR52056WOODAUTO
STR60623WOODAUTO
STR7974ELECTROLOG
STRL2813EFFE
STRS0233EFFE
STX201271STARDAX
STX210177STARDAX
STX210177RSTARDAX
T410865PERKINS
TS-6243DIXIE
S9087
