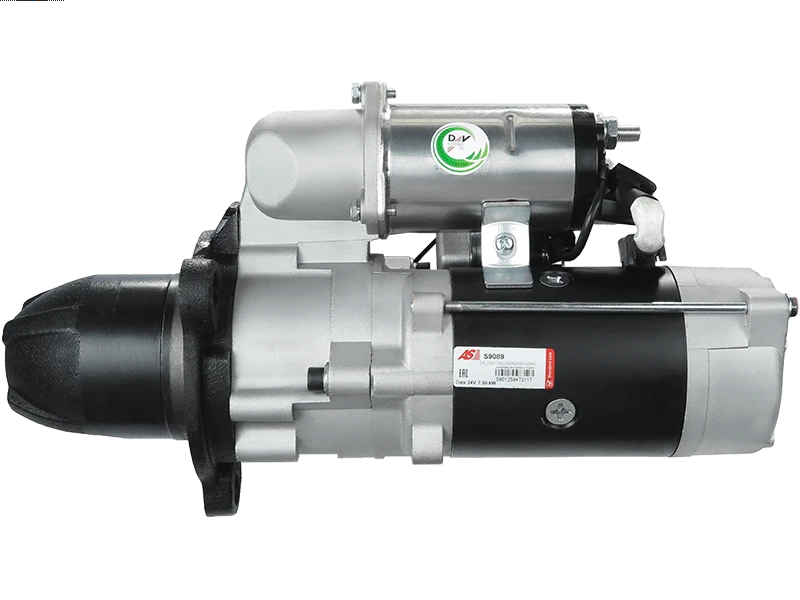

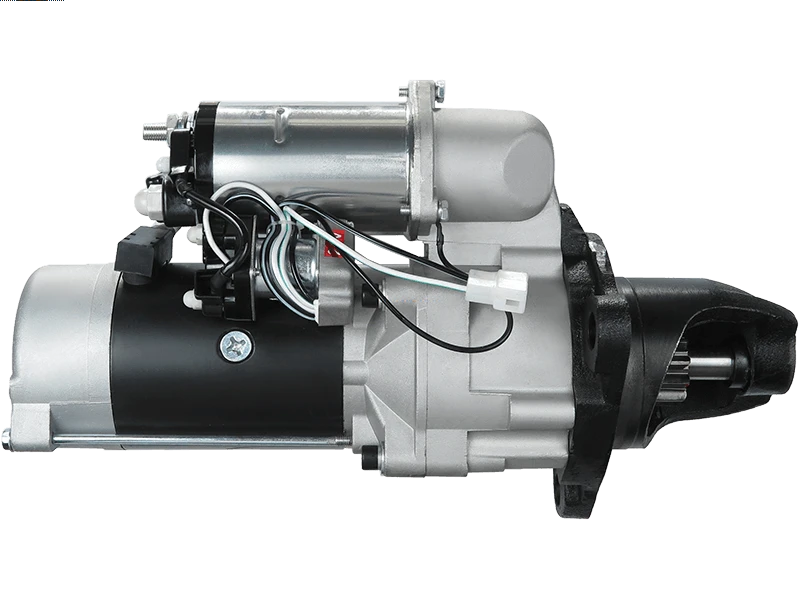

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
KOMATSU
Price:
NZ$ 910.66 including GST
NZ$ 791.88 excluding GST
or four payments of $227.67
with
Learn More
each
S9275
S9089
3
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0230003150Associated Numbers
0-23000-3150 0-23000-3151 0-23000-3152 0-23000-3153 0-23000-3180 0-23000-3184 0-23000-3185 0-23000-3186 0-23000-3270 0-23000-3285 0-23000-7022 110555 18084N 6008133630 6008133632 6008133681 6008134530 6008134531 6008134532 6008134533 6008134680 6008136611 S9089 STR75203 UD00770S 16-178 NXS9716 70-8830 snj140gq 0230003150 Nikko 0230003150SEL +line 0230003152 0230003153 0230003155 0230003180 0230003184 0230003185 0230003186 0230003188 0230003331 0230003332 0230003335 0230004530 040850 Da Silva 10440192 Alanko Cargo WAI 19774N 20739 DAS 33914 EAI 440192 451401 Elstock Komatsu 6008134682 6008136631 6008136632 6050604 Sando 643058124 DRI 8176 CEVAM 88212942 Power Max 8EA730280001 Hella 91284050 Wilson 941507123 PSH 941507123SEL CGB93150 Ainde CST50604 Airframe CST50614 IR8194 Protech JS739 HC Parts KTR1883014246 KTR LRS01876 Lucas RNL0230003180 RNL S136288 Short code S144734 S164382 AS-PL S9275 SNE2026 Everkraft SNE2101 STR29008 Wood Auto STR75231 STR8810sa Electrolog WOOSTR29008 WOOSTR75231Specifications
| Kilowatt | 7.50 kW |
| Length (L.1) | 412 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 17 mm |
| Mount Hole Diameter (C.2) | 17 mm |
| Mount Hole Diameter (C.3) | 17 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | KOMATSU |
| Voltage | 24 V |
| Wet Clutch | Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KOMATSU | Engine | [S6D125] | |
| KOMATSU | PC300-6 | ||
| KOMATSU | PC300-7 |
Reference Information
| 0-23000-3150 | NIKKO |
| 0-23000-3151 | NIKKO |
| 0-23000-3152 | NIKKO |
| 0-23000-3153 | NIKKO |
| 0-23000-3180 | NIKKO |
| 0-23000-3184 | NIKKO |
| 0-23000-3185 | NIKKO |
| 0-23000-3186 | NIKKO |
| 0-23000-3278 | NIKKO |
| 0-23000-3330 | NIKKO |
| 0-23000-3340 | NIKKO |
| 0-23000-3341 | NIKKO |
| 0-23000-6250 | NIKKO |
| 0-23000-6251 | NIKKO |
| 0-23000-6530 | NIKKO |
| 0-23000-7022 | NIKKO |
| 103986 | FARCOM |
| 110555 | CARGO |
| 18084N | WAI / TRANSPO |
| 20739 | KUHNER |
| 20739N | KUHNER |
| 20739P | KUHNER |
| 336573 | LOGISTIK |
| 600-813-3530 | KOMATSU |
| 6008133630 | KOMATSU |
| 6008133632 | KOMATSU |
| 6008133681 | KOMATSU |
| 6008134530 | KOMATSU |
| 6008134531 | KOMATSU |
| 6008134532 | KOMATSU |
| 6008134533 | KOMATSU |
| 6008134680 | KOMATSU |
| 600-863-5711 | KOMATSU |
| ALT131040 | SIOM |
| ALTE457 | 3EFFE |
| F032110555 | CARGO |
| MAV526040 | SIOM |
| S9089 | AS-PL |
| STR75203 | WOODAUTO |
| STR8810 | ELECTROLOG |
| UD00770S | AS-PL |
Video/Publications
