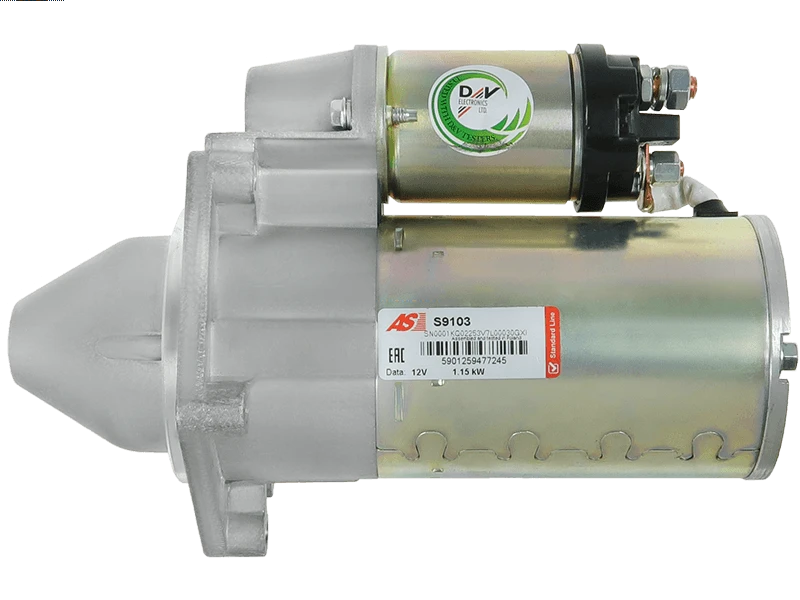

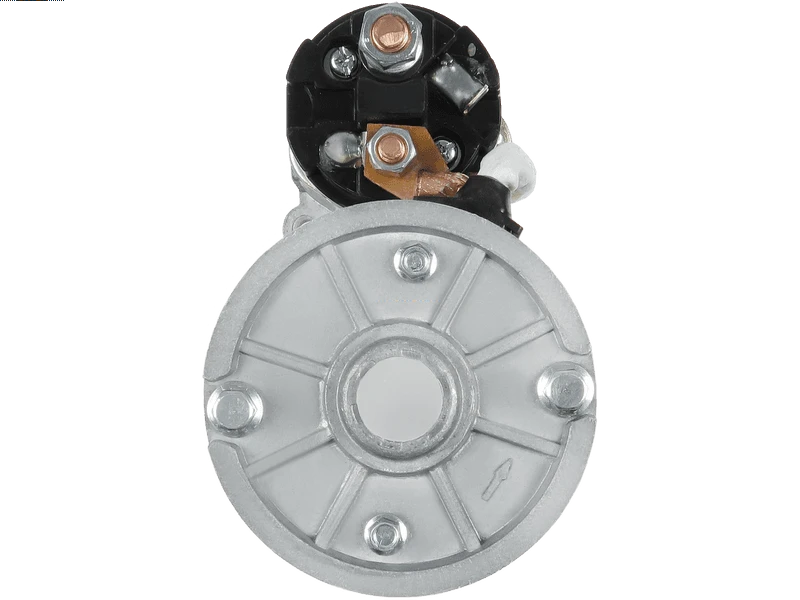

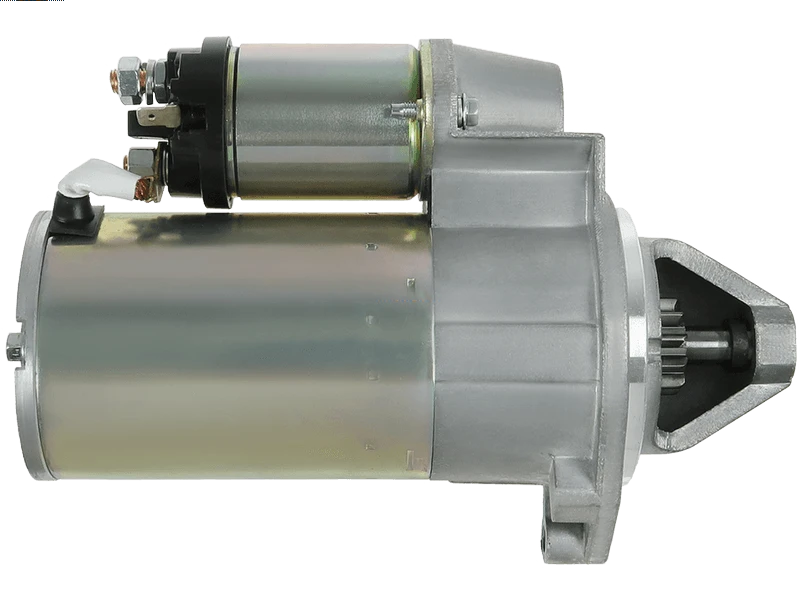

S9103 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.15 kW
Length (L.1)	231 mm
Mount Hole Center - Center (O.1)	66 mm
Mount Hole Center - Center (O.2)	67 mm
Mount Hole Center - Center (O.3)	111 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	22.5 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	OTHER
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FIAT	131 1.4 Mirafiori	[131C.000]	11.1980-01.1984
FIAT	131 1.4 Mirafiori	[131C.000]	11.1981-01.1984
FIAT	131 1.4 Mirafiori	[131C1.000]	11.1980-01.1984
FIAT	131 1.4 Mirafiori	[131C1.000]	11.1981-01.1984
FIAT	131 1.4 Super Mirafiori	[131C1.000]	04.1981-12.1983
FIAT	131 1.6 1600	[131A1.000]	10.1974-09.1981
FIAT	131 1.6 1600 Super	[131C3.000]	03.1978-01.1984
FIAT	131 1.6 Panorama	[131A1.000]	03.1975-12.1978
FIAT	131 1.6 Super Mirafiori	[131B1.000]	03.1979-03.1982
FIAT	131 2.0 2000 Racing	[131B2.000]	06.1978-12.1981
LADA	1200 1.2	[BA32101]	01.1970-06.1986
LADA	1200 1.2	[BA32101]	09.1973-08.1984
LADA	1300 1.3	[BA321011]	05.1978-01.1987
LADA	1300 1.3	[BA32105]	08.1974-08.1984
LADA	1300 1.3 1300		01.1981-12.1982
LADA	1500 1.5	[BA32103]	09.1972-08.1984
LADA	1500 1.5	[BA32103]	09.1973-06.1985
LADA	1500 1.5	[BA32103]	11.1975-10.1986
LADA	1600 1.6	[BA32106]	03.1979-10.1986
LADA	1600 1.6	[BA32106]	09.1972-08.1984
LADA	Niva 1.6 1600	[BA32121]	01.1987-03.1995
LADA	Niva 1.6 1600	[BA32121]	04.1980-12.1987
LADA	Niva 1.6 1600	[BA32121]	12.1976-05.1987
LADA	Niva 1.7 i 1700	[BA321214]	06.1996-
LADA	Niva 1.7 i 4x4		10.2000-
LADA	Nova 1.2 1200 Junior	[BA32101]	09.1981-
LADA	Nova 1.3 1300	[BA32105]	09.1985-12.1990
LADA	Nova 1.3 1300 Spezial	[BA32105]	05.1981-
LADA	Nova 1.5 1500	[BA32103]	03.1985-
LADA	Nova 1.5 1500	[BA32103]	08.1994-
LADA	Nova 1.5 1500	[BA32103]	09.1985-02.1993
LADA	Nova 1.6 1600	[BA32106]	01.1988-
LADA	Nova 1.7 1700	[ECE]	08.1994-
LADA	Toscana 1.3	[BA32105]	12.1985-05.2012
LADA	Toscana 1.5 1500	[BA32103]	09.1983-02.1993

Reference Information

63222408 Z11M2.116/1.814 63222405 4474750 19024839 220079 5722.3708 10139 2101-3708000 4233708 S1024B 1.3R3103 CT2213708000 CS139 3708000 21213-3708010 803000.2 LRS00286 21070-3708010-01 2110-3708010-01 KAT3K35.3708 221-3708000 63222506 MAV1050 3101-3708000 S9103 CT22112B UD10937S KAT3KCT22112B 35.3708-01 KAT3KCT221126 Z11M2.116 0001208218 25-0079 E100L-1.5/12 LRS286 STR1591 S12BH0757A2 STRS180 4474747 2101-370800002 35 4474746 63222438 63222436 R100.03 110352 63222435 2100-3708000 MTD12-14 9141382 2105-3708010 263 AES2186 353708-12B E100-1.3/12V8 1208218 CT221128 425 4253708 5722 21053708010

Video/Publications

0001208218 10139 110352 19024839 2100-3708000 2101-3708000 2101-370800002 21213-3708010 221-3708000 25-0079 3101-3708000 4233708 4253708 4474746 4474747 4474750 5722.3708 63222405 63222408 63222435 63222436 63222438 63222506 803000.2 9141382 AES2186 CS139 CT221128 CT22112B CT2213708000 E100-1.3/12V8 E100L-1.5/12 KAT3K35.3708 KAT3KCT221126 KAT3KCT22112B LRS00286 LRS286 MAV1050 MTD12-14 R100.03 S1024B S9103 STRS180 UD10937S 220079
