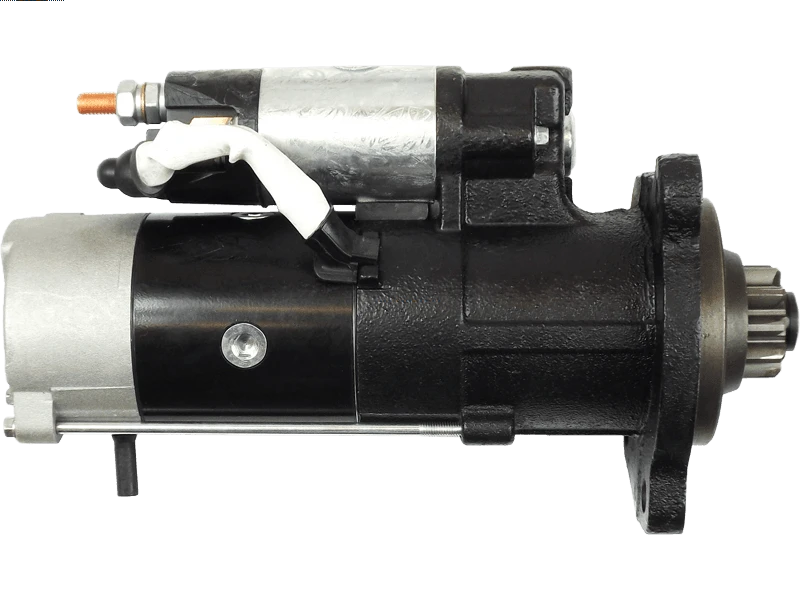

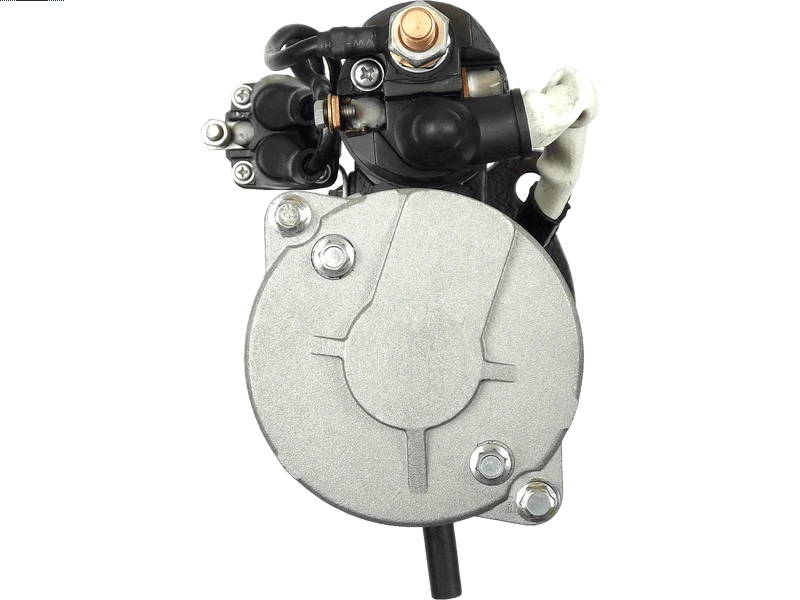

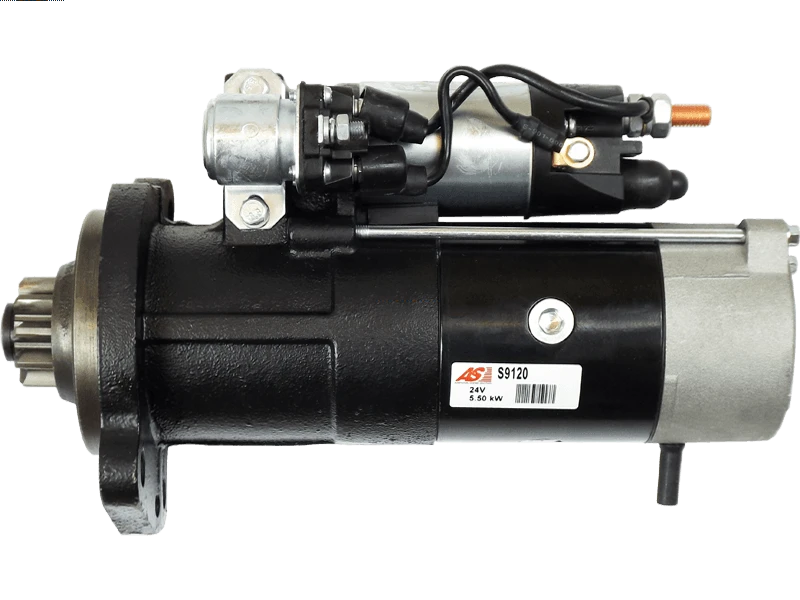

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 698.53 including GST
NZ$ 607.42 excluding GST
or four payments of $174.63
with
Learn More
each
S9120
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
91223708Associated Numbers
11.131.316 8.8676 8922.3708.000 9122.3708000 AZF4581 CT142T IS1155 UD01989SSpecifications
| Kilowatt | 5.50 kW |
| Length (L.1) | 319 mm |
| Mount Hole Center - Center (O.1) | 142 mm |
| Mount Hole Center - Center (O.2) | 46 mm |
| Mount Hole Center - Center (O.3) | 27 mm |
| Mount Hole Center - Center (O.4) | 123 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| Mount Hole Diameter (C.4) | 12.50 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 101 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BELAZ | 3754 22.3 | [YaMZ240] | |
| CHTZ | T12 11.2 | [YaMZ236] | |
| KRAZ | 7133 14.9 | [YaMZ238] | |
| LIAZ | 5256 11.2 | [YaMZ236] | |
| MAZ | 5433 11.2 | [YaMZ236] | |
| MAZ | 5433 11.5 | [YaMZ6563] | |
| MAZ | 5551 14.9 | [YaMZ238] | |
| MAZ | 5551 14.9 | [YaMZ6581] | |
| MAZ | 6303 14.9 | [YaMZ6582] | |
| MOAZ | 1405 14.9 | [YaMZ238] | |
| ROSTSELMASH | Across 11.2 | [YaMZ236] | |
| ROSTSELMASH | Vector 11.2 | [YaMZ236] | |
| URAL | 7133 14.9 | [YaMZ238] |
Reference Information
| 11.131.316 | ISKRA / LETRIKA |
| 20419356BN | REAL |
| 54323708 | MAZ |
| 6021653.0 | SANDO |
| 8.8676 | AUTODIZEL |
| 8922.3708.000 | PRAMO |
| 91223708 | KAMAZ |
| 9122.3708000 | KAMAZ |
| AZF4581 | ISKRA / LETRIKA |
| CST21653AS | CASCO |
| CT142T | BATE |
| IS1155 | ISKRA / LETRIKA |
| MS 258 | MAHLE |
| STR78023 | ELECTROLOG |
| UD01989S | AS-PL |
Video/Publications
