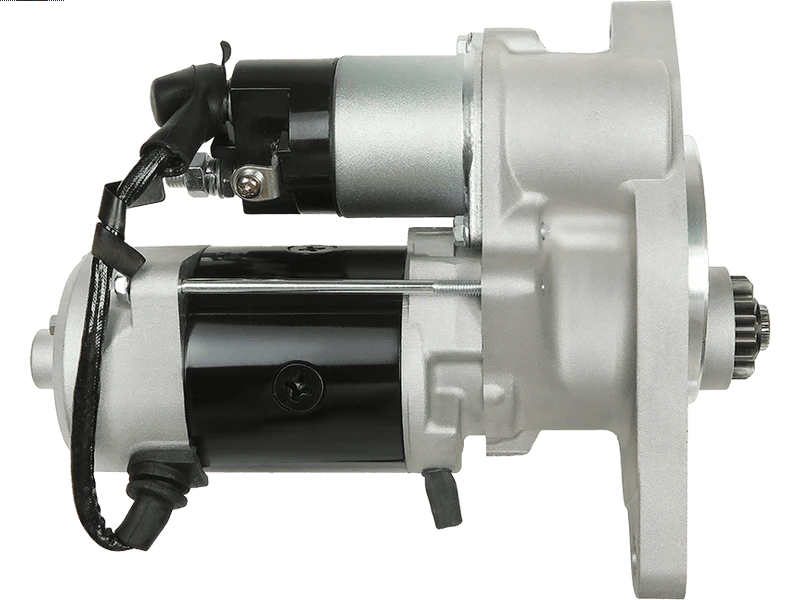

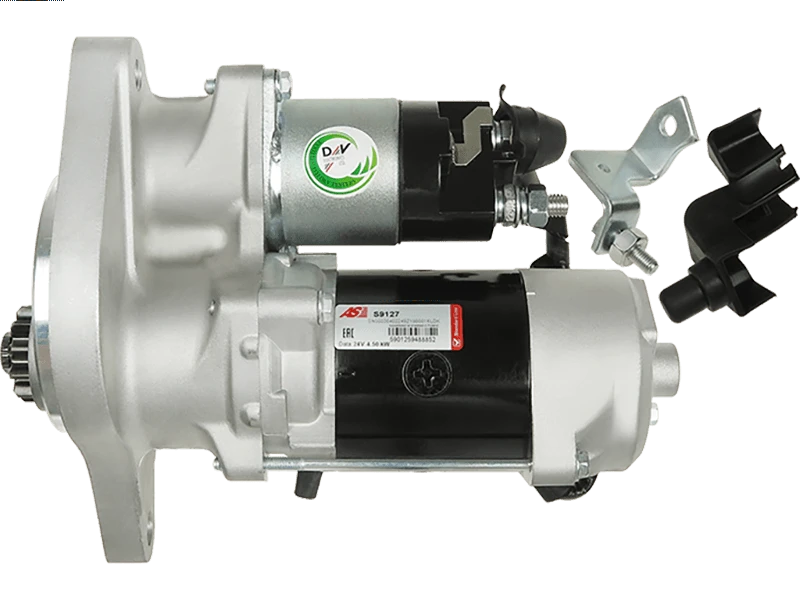

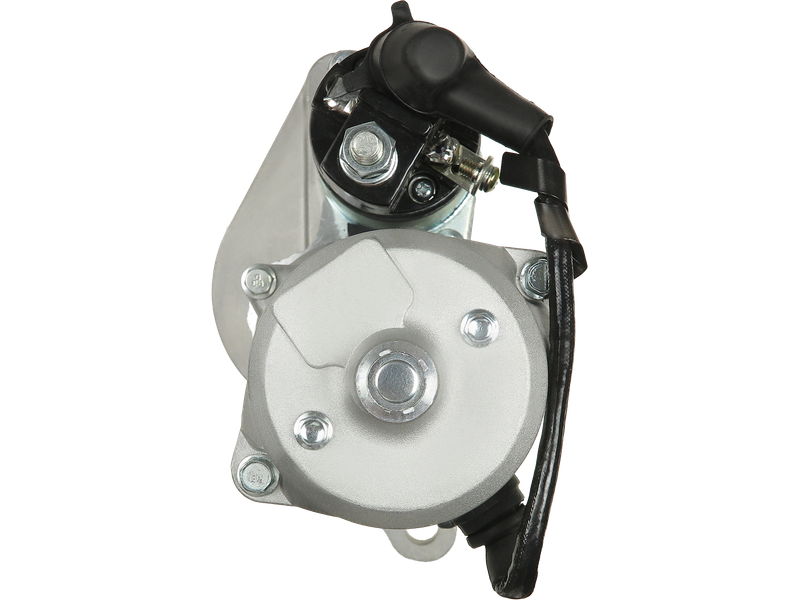

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 433.98 including GST
NZ$ 377.37 excluding GST
or four payments of $108.50
with
Learn More
UOM:
each
Product Code:
S9127
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0355-502-0211Associated Numbers
03555020211 191.509.112 28100-78090 28100-78090(B) STR75612 UD02174SSpecifications
| Kilowatt | 4.50 kW |
| Length (L.1) | 278 mm |
| Mount Hole Center - Center (O.1) | 198 mm |
| Mount Hole Diameter (C.1) | M14x1.5 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Dyna 7-105 | [W04D] | |
| TOYOTA | Dyna 7-105 | [WU420] |
Reference Information
| 0355-502-0211 | SAWAFUJI |
| 0355-502-0212 | SAWAFUJI |
| 191.509.112.058 | PSH |
| 191.509.112.170 | PSH |
| 28100-78090 | TOYOTA |
| 28100-78090B | TOYOTA |
| AM-2809 | AUTO MAGNETO |
| S131.498 | PSH |
| S9127 | AS-PL |
| STR75612 | WOODAUTO |
| STR9859 | ELECTROLOG |
| STW3332 | KRAUF |
| UD02174S | AS-PL |
Video/Publications
