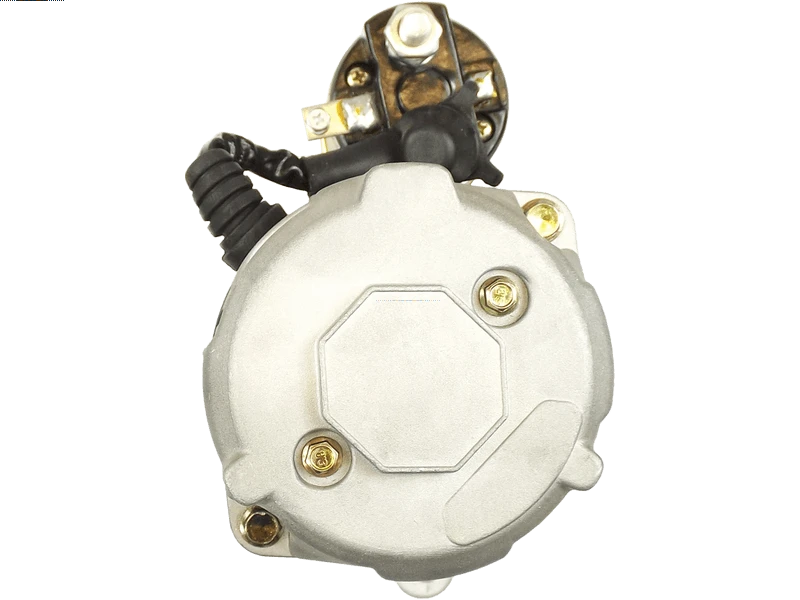

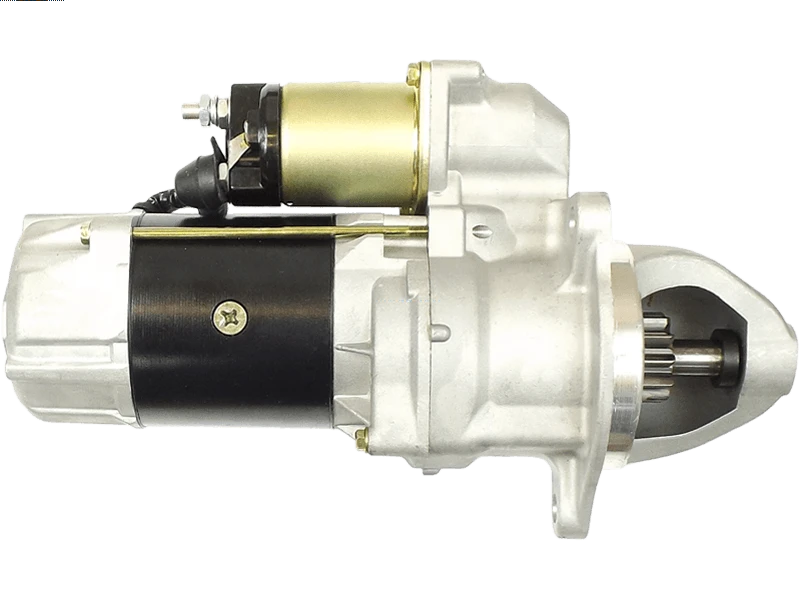

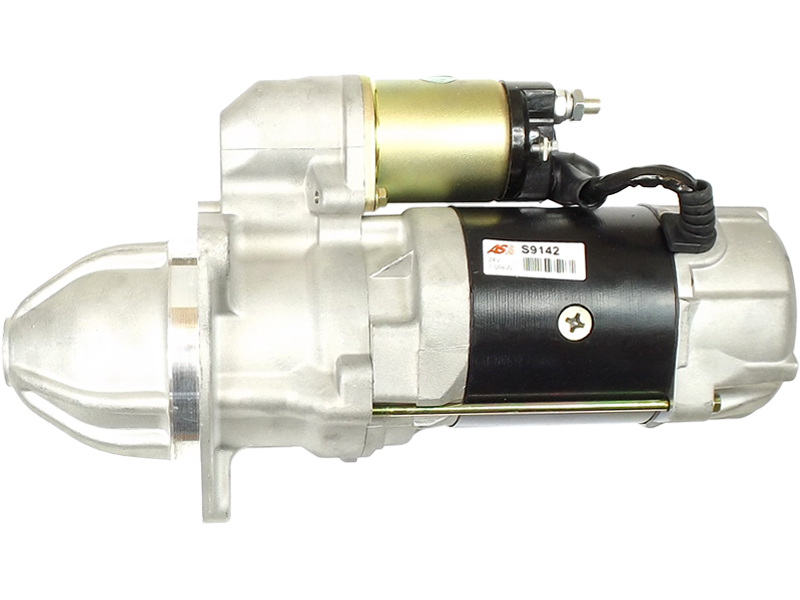

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 784.97 including GST
NZ$ 682.58 excluding GST
or four payments of $196.24
with
Learn More
UOM:
each
Product Code:
S9142
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
03507020011 23300-97061 23300-97064 UD02173SSpecifications
| Kilowatt | 7 kW |
| Length (L.1) | 410 mm |
| Mount Hole Center - Center (O.1) | 145 mm |
| Mount Hole Center - Center (O.2) | 151 mm |
| Mount Hole Center - Center (O.3) | 104 mm |
| Mount Hole Diameter (C.1) | 15.50 mm |
| Mount Hole Diameter (C.2) | 15.50 mm |
| Mount Hole Diameter (C.3) | 15.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 122 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Engine | [RF8] |
Reference Information
| 03507020011 | SAWAFUJI |
| 23300-97061 | NISSAN |
| 23300-97064 | NISSAN |
| STR9814 | ELECTROLOG |
| UD02173S | AS-PL |
