S9154 - Brand new AS-PL Starter motor

AS Group will be closed TUESDAY MAY 14 for family bereavement

Any orders placed online will be dispatched on Wednesday the 15th.

NO phone orders will be taken on Tuesday 14th

Thank you for your understanding.

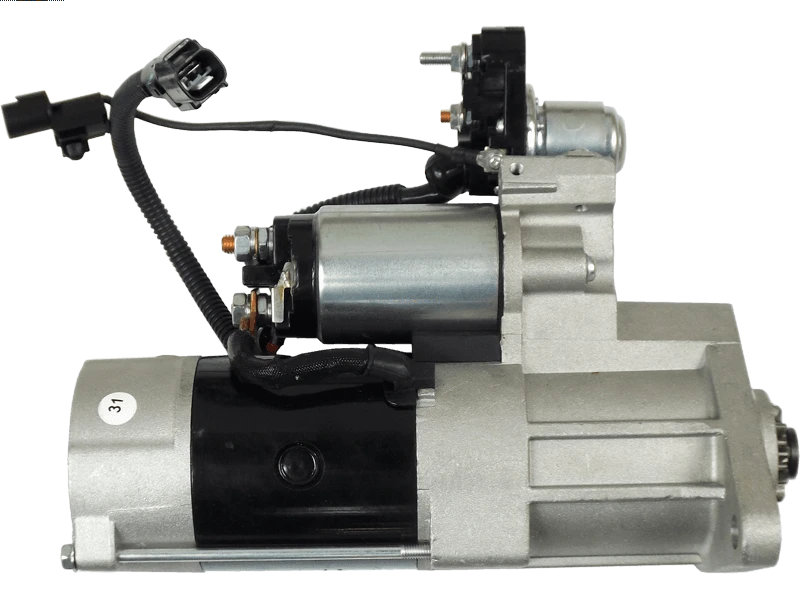

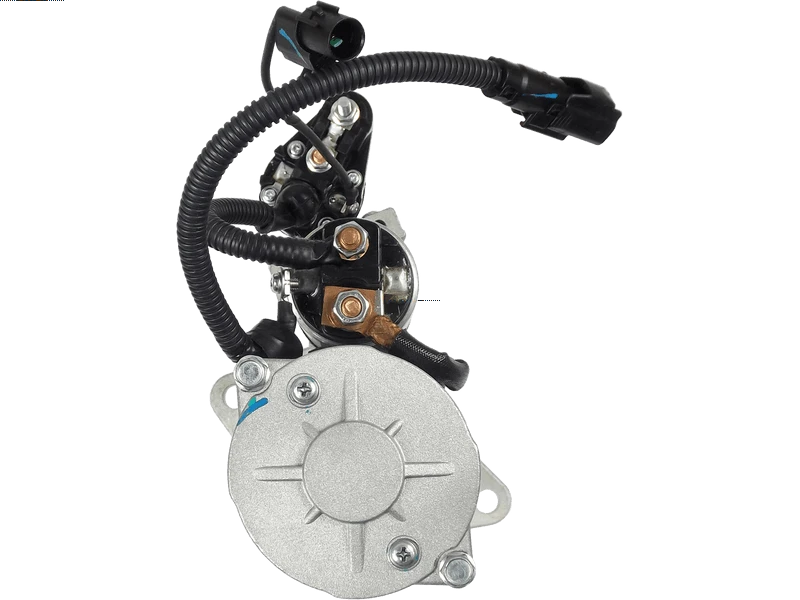

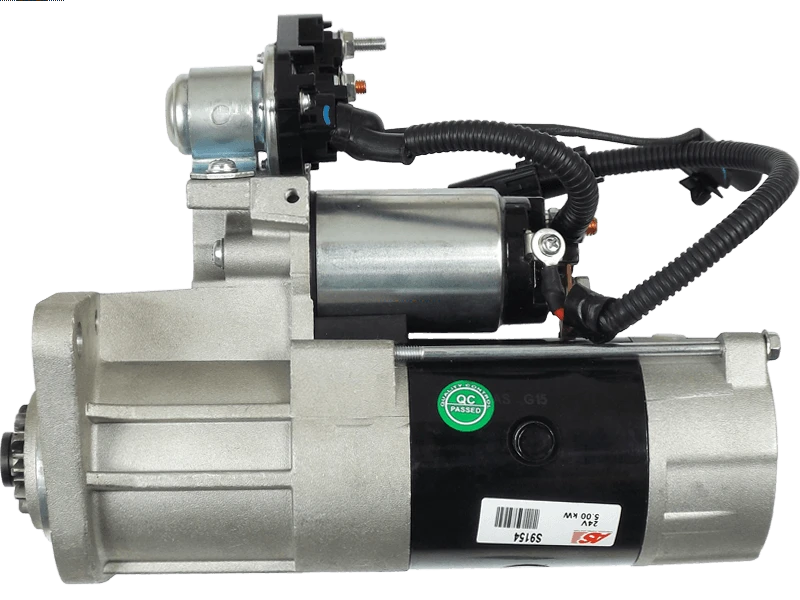

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HYUNDAI / KIA
Price:
NZ$ 674.68 including GST

NZ$ 586.67 excluding GST
each
S9154
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

115751 151.529.113 220509 36100-41000 36100-41100 36100-45501 36100-45900 602038 88214666 DRS1263 EAA-121862 S9154 STA3505 STR54196 UD00647S VAL1251025
Kilowatt5 kW
Length (L.1)288 mm
Mount Hole Center - Center (O.1)23 mm
Mount Hole Center - Center (O.2)43 mm
Mount Hole Center - Center (O.3)145 mm
Mount Hole Center - Center (O.4)102 mm
Mount Hole Diameter (C.1)M10x1.25 mm
Mount Hole Diameter (C.2)M10x1.25 mm
Mount Hole Diameter (C.3)12.5 mm
Mount Hole Diameter (C.4)12.5 mm
No./Mount holes4 qty
No./Mount holes with thread2 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)16.5 mm
RotationCW
Spigot Diameter (A)60 mm
Unit TypeHYUNDAI / KIA
Voltage24 V
Make Model Type Year
HYUNDAI HD 65 3.3 [D4AL] 09.2006-
HYUNDAI HD 65 3.5 [D4AF] 09.2006-
HYUNDAI HD 65 3.9 [D4DB] 09.2006-
HYUNDAI HD 65 3.9 [D4DC] 09.2006-
HYUNDAI HD 65 3.9 [D4DD] 09.2006-
STR54196 CST32609GS S9154 220509 EAA-121862 20493906OE 6032609.1 STA3505 36100-45900 STR00166 115751 UD00647S 3610045700 602038 36100-41000 88214666 36100-41100 DRS1263 VAL1251025 151.529.113 36100-45501
115751 151.529.113 220509 36100-41000 36100-41100 36100-45501 36100-45900 602038 88214666 DRS1263 EAA-121862 S9154 STA3505 STR54196 UD00647S VAL1251025
