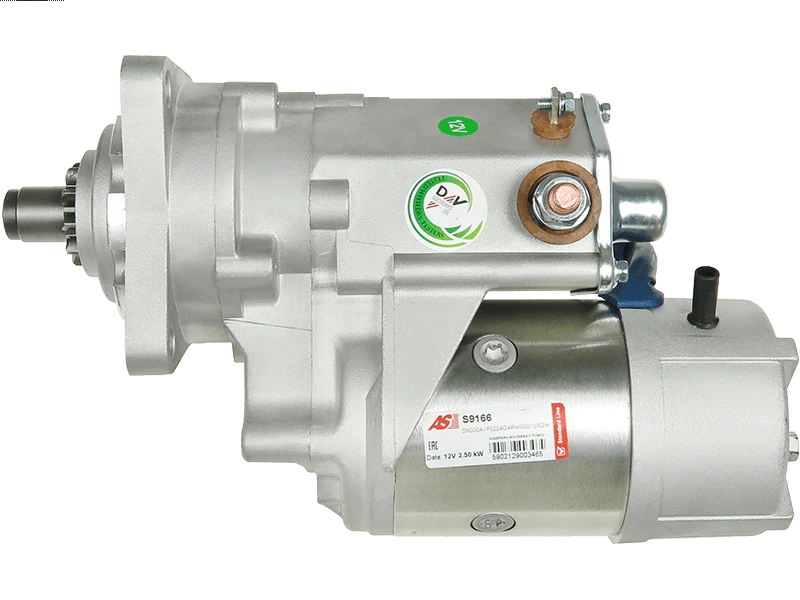

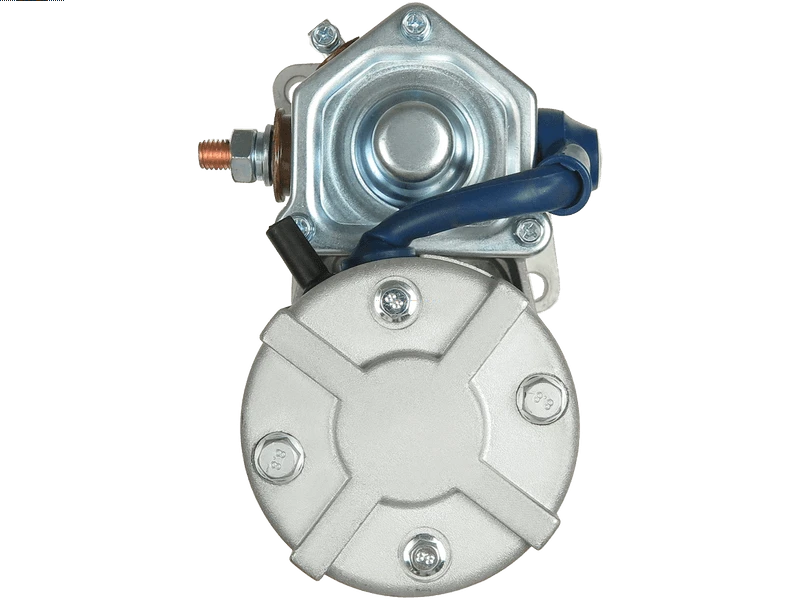

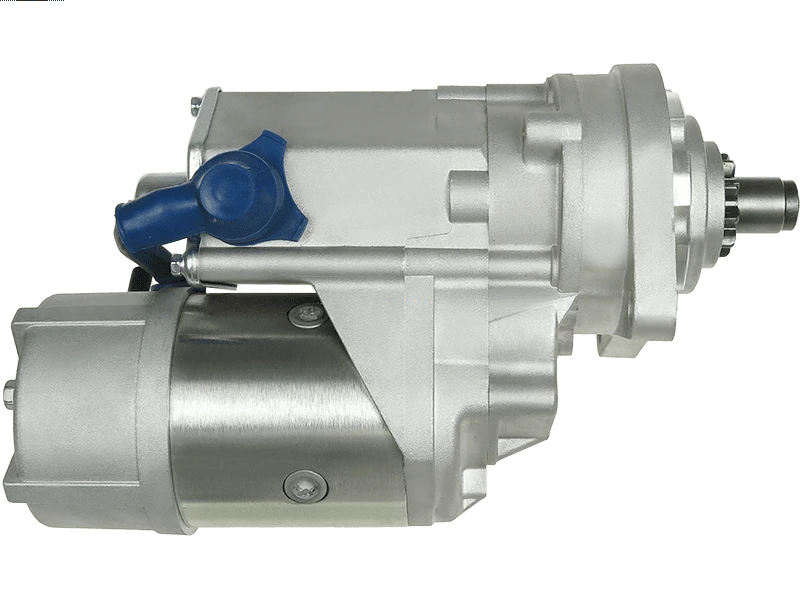

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
UNIVERSAL
Price:
NZ$ 414.09 including GST
NZ$ 360.08 excluding GST
or four payments of $103.52
with
Learn More
each
S9166
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
UD11124SSpecifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 295 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 89 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 31 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | UNIVERSAL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Various Models | ||
| CUMMINS | Various Models |
Reference Information
| 1121767 | CATERPILLAR |
| 1430535 | CATERPILLAR |
| 1430538 | CATERPILLAR |
| 1445590 | CATERPILLAR |
| 228000-1350 | DENSO |
| 228000-1352 | DENSO |
| 228000-1420 | DENSO |
| 228000-1422 | DENSO |
| 254495 | KUHNER |
| 2873K409 | PERKINS |
| 336183 | LOGISTIK |
| 5040577 | MEAT & DORIA |
| 640.501.103.130 | PSH |
| 640.501.103.130 | PSH |
| 640.501.103.138 | PSH |
| 640.501.103.138 | PSH |
| 640.501.103.260 | PSH |
| 640.501.103.260 | PSH |
| 640.501.103.266 | PSH |
| 640.501.103.266 | PSH |
| 640.501.103.519 | PSH |
| 640.501.103.519 | PSH |
| 88212130 | POWERMAX |
| CGB-23303 | AINDE |
| DRS3303 | DELCO |
| OR4316 | CATERPILLAR |
| OR4319 | CATERPILLAR |
| STR30057 | WOODAUTO |
| STR6130 | ELECTROLOG |
| STX200846 | STARDAX |
| UD11124S | AS-PL |
