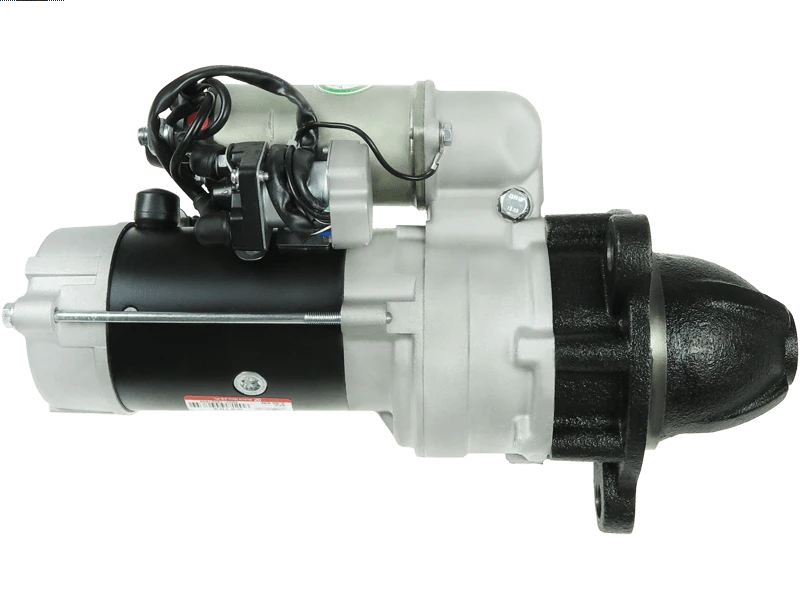

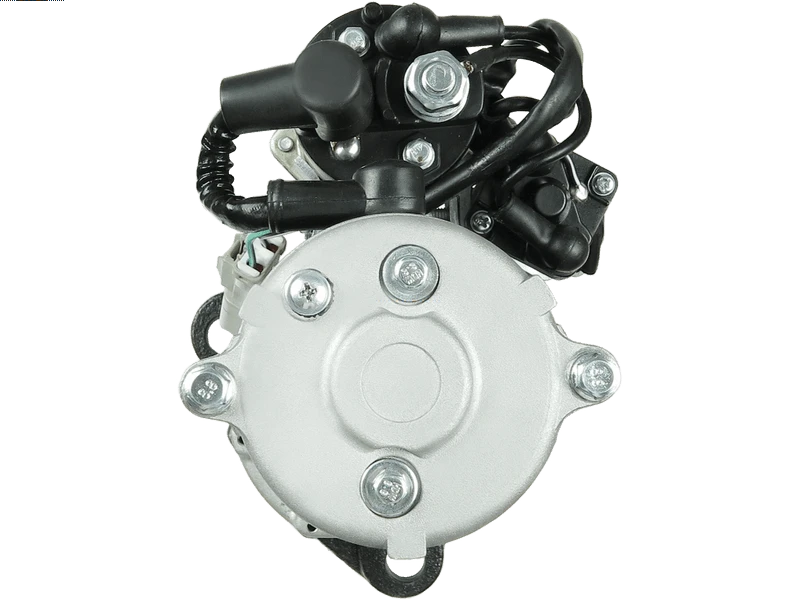

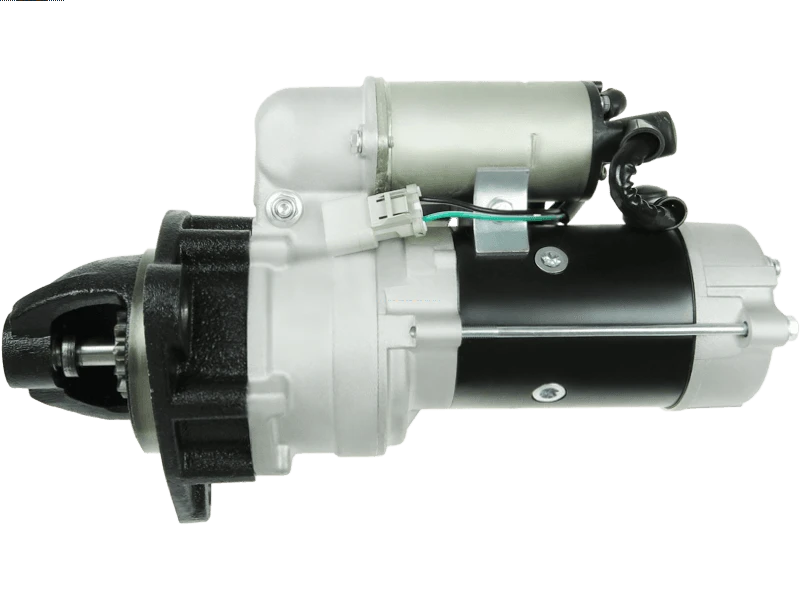

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
KOMATSU
Price:
NZ$ 533.57 including GST
NZ$ 463.97 excluding GST
or four payments of $133.39
with
Learn More
each
S9182
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
0-23000-1170 0-23000-1530 246-30224D 45-1395 941.515.123 LRS01875 S-8828D S9182 STR75226 UD11089S UNIT BOM 185-234Specifications
| Kilowatt | 5.50 kW |
| Length (L.1) | 372 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 17 mm |
| Mount Hole Diameter (C.2) | 17 mm |
| Mount Hole Diameter (C.3) | 17 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 100 mm |
| Unit Type | KOMATSU |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KOMATSU | PW150-1 | [6D95L-1] | 01.2000-12.2006 |
| KOMATSU | PW150-3 | [S6D95L] | 01.1991-12.2005 |
| KOMATSU | WA100 | [6D95L-1] | 01.1986-12.2002 |
| KOMATSU | WA100-1 | [6D95L-1] | 01.1998-12.2003 |
| KOMATSU | WA100-1 | [6D95L-1] | 01.2000-12.2006 |
| KOMATSU | WA100-3 | [6D95L] | 01.1995-12.2006 |
| KOMATSU | WA100-3 | [6D95L-1] | 01.2000-12.2006 |
| KOMATSU | WA120-1 | [6D95L] | 01.1995-12.2006 |
| KOMATSU | WA150 | [6D95L-1] | 01.1986-12.2002 |
| KOMATSU | WA150 | [S6D95L] | 01.1991-12.2005 |
| KOMATSU | WA150-1 | [S6D95L-1] | 01.1988-12.2003 |
| KOMATSU | WA150-1 | [S6D95L-1] | 01.2000-12.2006 |
| KOMATSU | WA150-3 | [6D95L-1] | 01.2000-12.2006 |
| KOMATSU | WA150-3 | [S6D95L] | 01.1995-12.2006 |
| KOMATSU | WA180 | [6D95L] | 01.1995-12.2006 |
| KOMATSU | WA180-1 | [S6D95L-1] | 01.2000-12.2006 |
| KOMATSU | WA180-1 | [SA6D95L-1] | 01.1995-12.2006 |
| KOMATSU | WR11 | [6D95L] | 01.1991-12.2005 |
Reference Information
| 0-23000-1170 | NIKKO |
| 0-23000-1530 | NIKKO |
| 246-30224D | DIXIE |
| 45-1395 | ELSTOCK |
| 600-813-3460 | KOMATSU |
| 941.515.123 | PSH |
| CGB-91530 | AINDE |
| LRS01875 | LUCAS |
| LRS1875 | LUCAS |
| S-8828D | DIXIE |
| S9182 | AS-PL |
| STR75226 | WOODAUTO |
| UD11089S | AS-PL |
| UNIT BOM 185-234 | WAI / TRANSPO |
