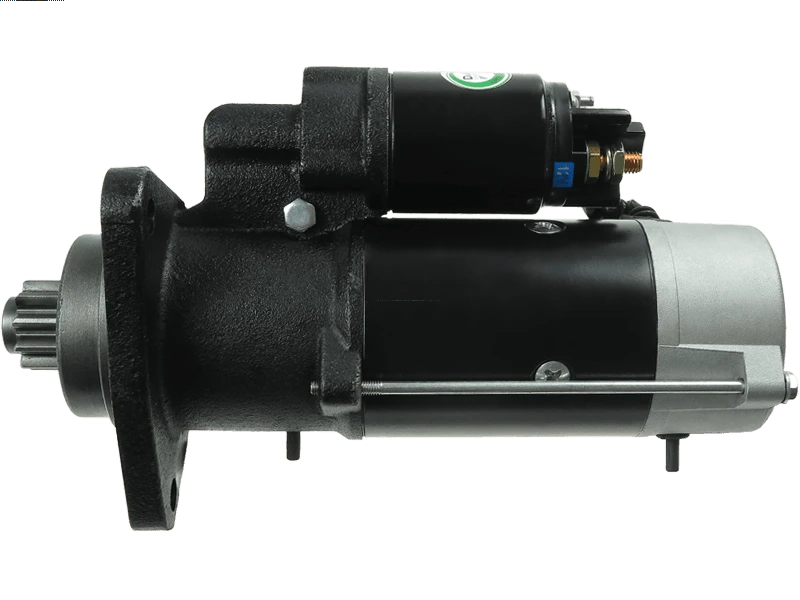

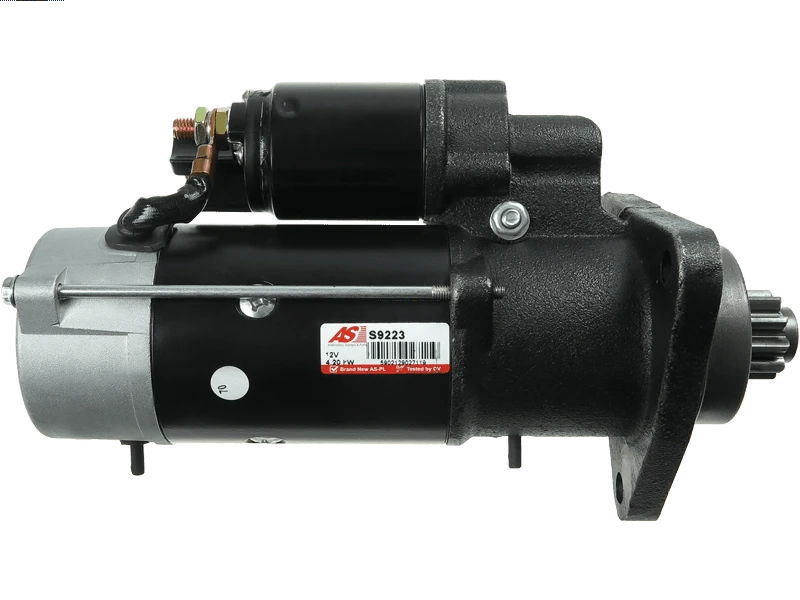

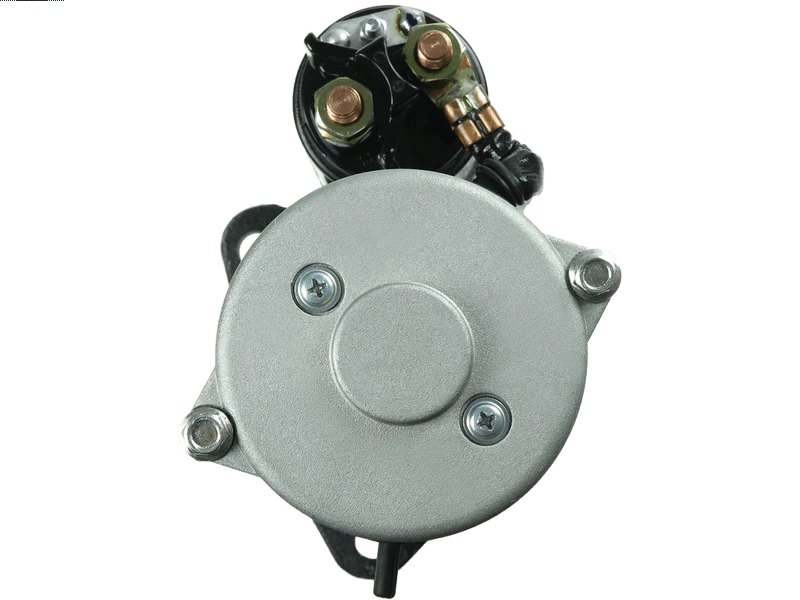

S9223 - Brand new AS-PL Starter motor

Associated Numbers

028000-7430 028000-7431 10461645 10465537 11.131.117 11.131.213 11.131.839 113429 128000-4340 128000-5330 128000-5331 128000-5620 128000-5621 128000-5623 128000-6391 128000-9800 128000-9801 193432A01 193432A1 193432A2 20419451OE 228000-5600 228000-5601 228000-5603 228000-5620 228000-5621 228000-5623 228000-6390 228000-6391 228000-6392 228000-6393 246-30116 254658 254658M 254714 254714M 256088 3283813 3675245 3920328 3921012 6021154 640.513.103 84146320 87419387 8901 91-29-5464 91-29-5464N 91902C1 A162469 A187615 A187728 AZF4611 AZF4616 AZF4691 CST21154GS EAA-111248 IS1077 LETIS1077 MAHMS101 MS101 S-8911 STR70310 UD12397S 18406N 18406R 190-30100 20432123BN 20432123OE 20432452BN 20432452OE 228000-5602 228000-5622 228000-8510 228080-5603 228080-5622 246-30118 254667 3957589 6040254.0 6040254.1 6040321.0 6040321.1 87413501 88213771 91-29-5449 91-29-5449N CST40254AS CST40254GS CST40321.AS CST40321.GS DSN2011 DSN2023 S-8854 SG9103 STN8510 STR70340 UD16533S 114646 18508N 228000-5310 228000-5311 2509687C91 255981 6040321 CST40321AS CST40321GS DRS0349 S6095 STR70091 snj251 ARROWHEAD SIA0009 CASE IH84146320 CUMMINS 3675245RX DELCO DENSO J N ELECTRICAL PRODUCTS 410-29050 LESTER 18343 MAHLE MCCORMICK 705755A1 ONAN 0191-2212 70-0373 70-2699 Remy 11131117 Mahle show 11131213 11131839 Lester 1906037 PIC 2280005620 Denso 2280005621 2280005622 2280005623 2280006390 2280006391 2280006392 2280006393 2280805622 Cummins 640513103

Specifications

Kilowatt	4.20 kW
Length (L.1)	327 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	13.50 mm
Mount Hole Diameter (C.2)	13.50 mm
Mount Hole Diameter (C.3)	13.50 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	49 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CASE	1620	[D358]	01.1985-01.1992
CASE	1620	[D436]	01.1985-01.1992
CASE	1620	[D466]	01.1985-01.1992
CASE	1640	[D436]	01.1985-01.1992
CASE	1640	[D466]	01.1985-01.1992
CASE	1644		01.1993-01.1995
CASE	1666		01.1993-01.1997
CASE	1668		01.1993-01.1997
CASE	1670	[DT466C]	01.1989-01.1991
CASE	1680	[D436]	01.1985-01.1992
CASE	1680	[DT466]	01.1985-01.1992
CASE	1688		01.1992-01.1994
CASE	1690	[DT466C]	01.1985-01.1992
CASE	1822	[6-590]	01.1986-01.1992
CASE	1822	[6-830]	01.1986-01.1992
CASE	1844	[6-590]	01.1986-01.1992
CASE	1844	[6-830]	01.1986-01.1992
CASE	1896	[6-359]	01.1984-01.1989
CASE	1896	[6-590]	01.1984-01.1989
CASE	2055	[6TA-830]	01.1996-01.1998
CASE	2055		01.1990-
CASE	2090	[6-504]	01.1978-01.1988
CASE	2094	[6-504]	01.1983-01.1988
CASE	2096	[6-359]	01.1985-01.1990
CASE	2144		01.1994-01.1996
CASE	2155	[6TA-830]	01.1996-01.1998
CASE	2166		01.1994-01.1996
CASE	2188		01.1994-01.1996
CASE	2290	[6-504]	01.1978-01.1988
CASE	2294	[504BD]	01.1983-01.1987
CASE	2294	[6T-590D]	01.1983-01.1987
CASE	2366		01.1997-
CASE	2388	[TAA830]	08.2006-10.2010
CASE	2390	[504D]	01.1978-01.1988
CASE	2394	[504BD]	01.1983-01.1987
CASE	2394	[6T-590]	01.1983-01.1987
CASE	2399		08.2006-10.2010
CASE	2470	[504D]	01.1979-01.1988
CASE	2590	[504D]	01.1980-01.1983
CASE	2594	[504BD]	01.1983-01.1987
CASE	2594	[6T-590D]	01.1983-01.1987
CASE	2670	[504D]	01.1979-01.1988
CASE	2688	[TAA830]	10.2010-
CASE	2799	[TAA325]	10.2010-
CASE	2870	[6-674]	01.1979-01.1988
CASE	3294	[6-504]	01.1983-01.1985
CASE	3394	[6-504]	01.1985-01.1988
CASE	3594	[6-504]	01.1986-01.1988
CASE	4490	[6-504]	01.1984-01.1988
CASE	4494	[6-504]	01.1984-01.1987
CASE	4690	[6-504]	01.1984-01.1988
CASE	4694	[6-504]	01.1984-01.1990
CASE	4890	[6-674]	01.1984-01.1988
CASE	4894	[6-674]	01.1986-01.1990
CASE	4994		01.1986-01.1990
CASE	5088 8.8	[6TAA-8304]	04.2008-
CASE	5088 8.9	[6TAA-8304]	01.2008-
CASE	6088 8.9	[6TAA-8304]	04.2008-
CASE	7088 8.9	[6TAA-9004]	04.2008-
CASE	7110	[6-505]	01.1987-01.1993
CASE	7120	[6-505]	01.1987-01.1993
CASE	7130	[6-505]	01.1987-01.1993
CASE	7140	[6-505]	01.1987-01.1993
CASE	7210	[6-505]	01.1993-01.1996
CASE	7220	[6-505]	01.1993-01.1996
CASE	7230	[6-505]	01.1993-01.1996
CASE	7240	[6-505]	01.1993-01.1996
CASE	7250	[6-505]	01.1993-01.1996
CASE	8930	[6-505]	01.1996-
CASE	9110		01.1986-01.1993
CASE	9130		01.1986-01.1993
CASE	9210 8.3		01.1990-01.1996
CASE	9230 8.3		01.1990-01.1996
CASE	9240 8.3		01.1990-01.1996
CASE	9310 8.3		01.1995-12.2000
CASE	9330 8.3		01.1995-12.2000
NEW HOLLAND	TG285 8.3

Reference Information

028000-7430	DENSO
028000-7431	DENSO
10461645	DELCO
10465537	DELCO
11.131.117	ISKRA / LETRIKA
11.131.213	ISKRA / LETRIKA
11.131.839	ISKRA / LETRIKA
113429	CARGO
128000-4340	DENSO
128000-5330	DENSO
128000-5331	DENSO
128000-5620	DENSO
128000-5621	DENSO
128000-5623	DENSO
128000-6391	DENSO
128000-9800	DENSO
128000-9801	DENSO
191-2212	ONAN
191-2347	ONAN
193432A01	CASE
193432A1	CASE
193432A2	CASE
20419451OE	REAL
228000-5600	DENSO
228000-5601	DENSO
228000-5603	DENSO
228000-5620	DENSO
228000-5621	DENSO
228000-5623	DENSO
228000-6390	DENSO
228000-6391	DENSO
228000-6392	DENSO
228000-6393	DENSO
246-30116	DIXIE
254658	KUHNER
254658M	KUHNER
254714	KUHNER
254714M	KUHNER
256088	KUHNER
3283813	CUMMINS
3675245	CUMMINS
3920328	CUMMINS
3921012	CUMMINS
3957589	CUMMINS
56027703AB	CHRYSLER
6021154	SANDO
640.513.103	PSH
84146320	FIAT
87419387	FIAT
8901	CEVAM
91-29-5464	WILSON
91-29-5464N	WILSON
91902C1	JOHN DEERE
A162469	JOHN DEERE
A187615	JOHN DEERE
A187728	CASE
AZF4611	ISKRA / LETRIKA
AZF4616	ISKRA / LETRIKA
AZF4691	ISKRA / LETRIKA
CGB-23947	AINDE
CST21154GS	CASCO
F032113429	CARGO
IS1077	ISKRA / LETRIKA
LETIS1077	WOODAUTO
MAHMS101	WOODAUTO
MS101	MAHLE
MS 101	MAHLE
S-8911	DIXIE
STR70310	WOODAUTO
STR79269	ELECTROLOG
STRJ347	3EFFE
STRJ348	3EFFE
STX210082	STARDAX
UD12397S	AS-PL
