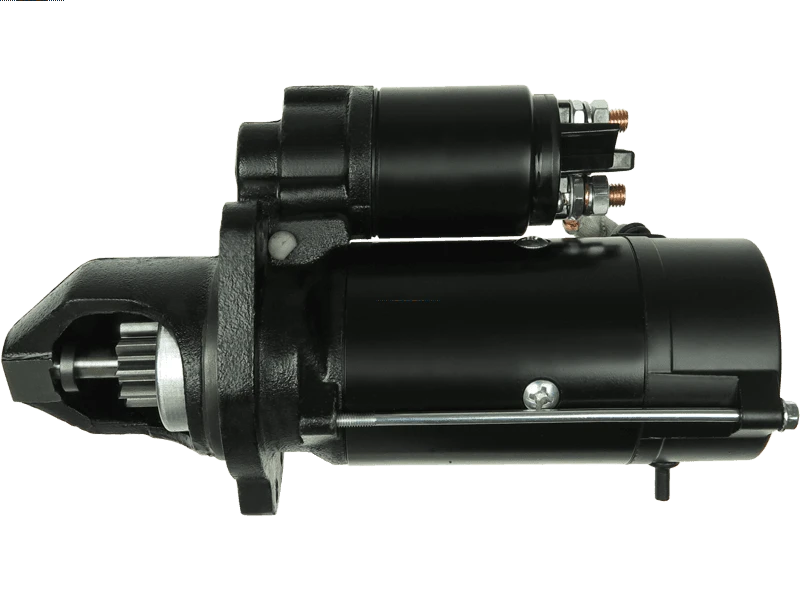

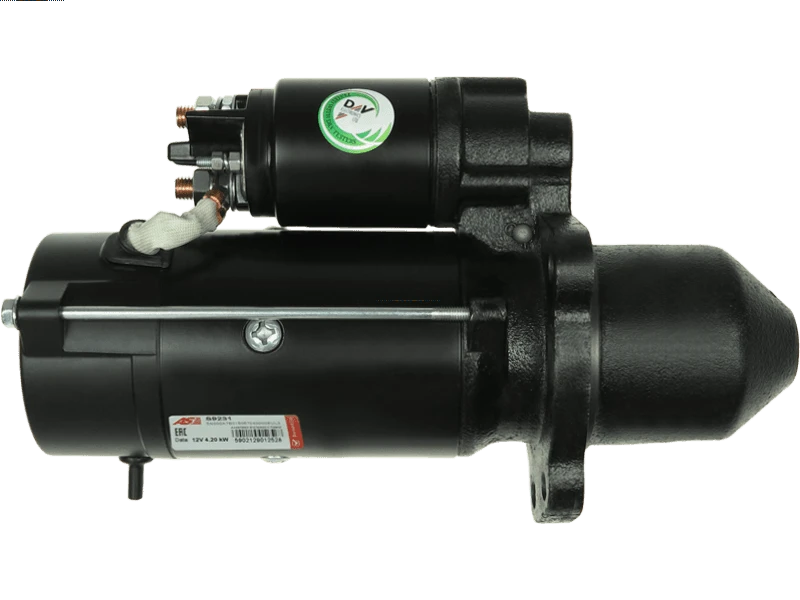

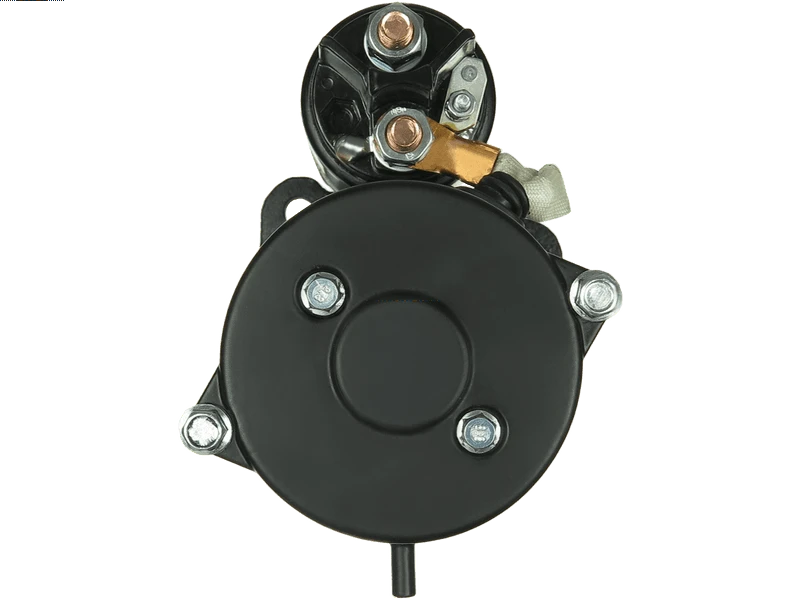

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 505.74 including GST
NZ$ 439.77 excluding GST
or four payments of $126.44
with
Learn More
each
S9231
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
11.131.191Associated Numbers
11.131.191 182-30323 570.557.104 7700067836 AZF4562 IS1070 LETIS1070 MS110 STI4562 UD11313SSpecifications
| Kilowatt | 4.20 kW |
| Length (L.1) | 321 mm |
| Mount Hole Center - Center (O.1) | 124 mm |
| Mount Hole Center - Center (O.2) | 30 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Center - Center (O.4) | 90 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | M12x1.75 mm |
| Mount Hole Diameter (C.4) | 11.50 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLAAS | 546 4.5 | [DPS4045TRT] | 01.2003-12.2005 |
| CLAAS | 546Z 4.5 | [DPS4045TRT] | 01.2003-12.2005 |
| CLAAS | 556 4.5 | [DPS4045TRT] | 01.2003-12.2005 |
| CLAAS | 566 4.5 | [DPS4045TRT] | 01.2003-12.2005 |
| CLAAS | 566Z 4.5 | [DPS4045TRT] | 01.2003-12.2005 |
| CLAAS | 616 6.8 | [DPS6068DRT] | 01.2003-12.2005 |
| CLAAS | 616Z 6.8 | [DPS6068DRT] | 01.2003-12.2005 |
| CLAAS | 656 6.8 | [DPS6068DRT] | 01.2003-12.2003 |
| CLAAS | 656Z 6.8 | [DPS6068DRT] | 01.2003-12.2003 |
Reference Information
| 11.131.191 | ISKRA / LETRIKA |
| 114903 | CARGO |
| 182-30323 | ROBERT'S |
| 20419881OE | REAL |
| 331789 | LOGISTIK |
| 570.557.104 | PSH |
| 6021188.1 | SANDO |
| 7700067836 | RENAULT |
| AZF4562 | ISKRA / LETRIKA |
| CST21188GS | CASCO |
| F032114903 | CARGO |
| IS1070 | ISKRA / LETRIKA |
| LETIS1070 | WOODAUTO |
| MAV231880 | SIOM |
| MS110 | MAHLE |
| STI4562 | KRAUF |
| STR7859 | ELECTROLOG |
| UD11313S | AS-PL |
Video/Publications
