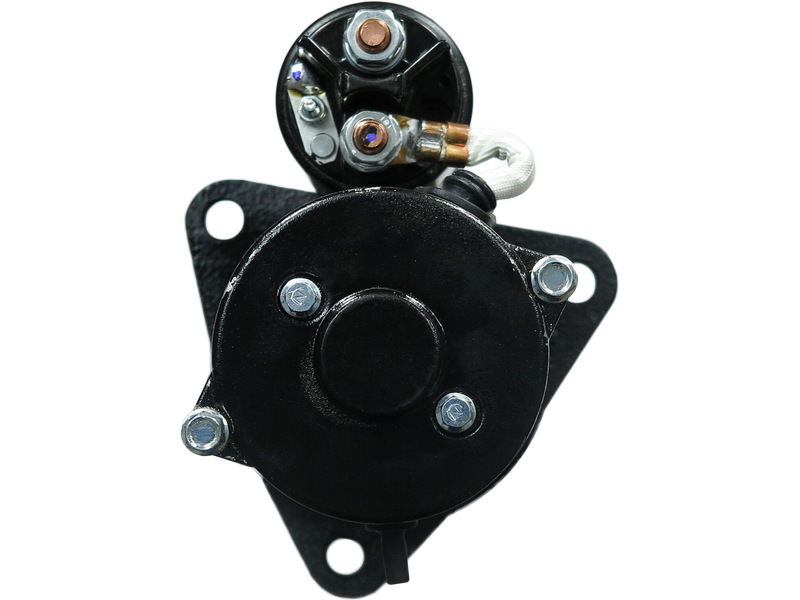

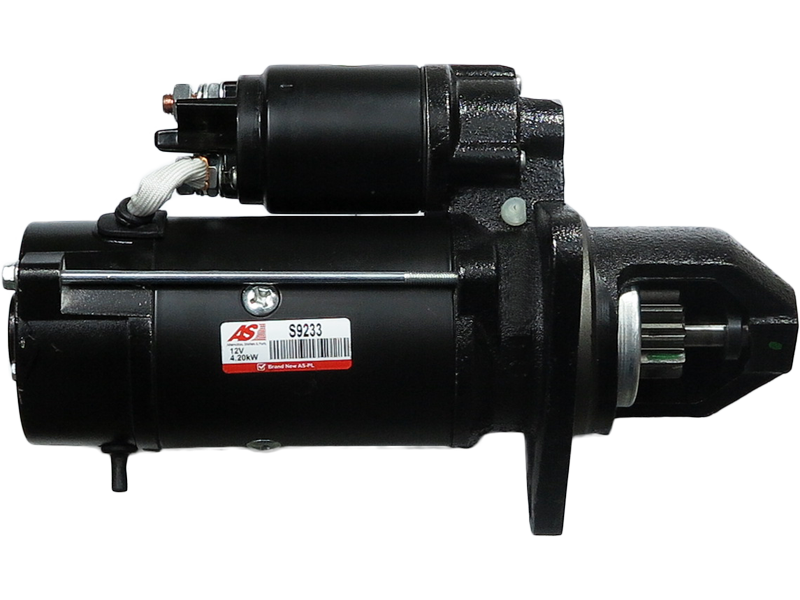

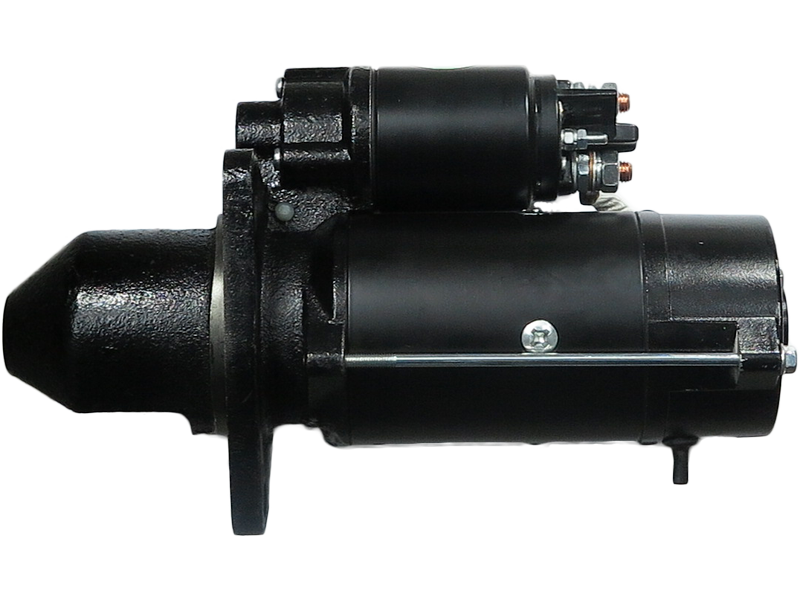

S9233 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S9233
Price: 551.56 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

ISKRA / LETRIKA

Price:

NZ$ 551.56 including GST

NZ$ 479.62 excluding GST

or four payments of $137.89 with
Learn More

UOM:

each

Product Code:

S9233

Quantity In Stock Nationally:

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

11.131.300

0191-2347 028000-7430 028000-7431 10461645 10465537 11.131.300 11.131.532 128000-4340 128000-5330 128000-5331 128000-5620 128000-5621 128000-5623 128000-6391 128000-9800 128000-9801 17353N 17353R 182-30326 193432A01 193432A1 193432A2 20540107 228000-5600 228000-5601 228000-5603 228000-5620 228000-5621 228000-5623 228000-6390 228000-6391 228000-6392 228000-6393 2347 246-30116 254658 254658M 254714 254714M 256088 28000-7430 28000-7431 3283813 3675245 3920328 3921012 630.010.123 87419387 8901 91-29-5060 91902C1 A162469 A187615 A187728 AZF4138 AZF4577 DRS0356 IS1089 LETIS1089 MS117 S-8098 STR70310 STR80096 UD11318S UNIT BOM 190-879

Kilowatt	4.20 kW
Length (L.1)	321 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	14 mm
Mount Hole Diameter (C.2)	14 mm
Mount Hole Diameter (C.3)	14 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	48.50 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Make	Model	Type	Year
CASE	1620	[D358]	01.1985-01.1992
CASE	1620	[D436]	01.1985-01.1992
CASE	1620	[D466]	01.1985-01.1992
CASE	1640	[D436]	01.1985-01.1992
CASE	1640	[D466]	01.1985-01.1992
CASE	1644		01.1993-01.1995
CASE	1666		01.1993-01.1997
CASE	1668		01.1993-01.1997
CASE	1670	[DT466C]	01.1989-01.1991
CASE	1680	[D436]	01.1985-01.1992
CASE	1680	[DT466]	01.1985-01.1992
CASE	1688		01.1992-01.1994
CASE	1690	[DT466C]	01.1985-01.1992
CASE	1822	[6-590]	01.1986-01.1992
CASE	1822	[6-830]	01.1986-01.1992
CASE	1844	[6-590]	01.1986-01.1992
CASE	1844	[6-830]	01.1986-01.1992
CASE	1896	[6-359]	01.1984-01.1989
CASE	1896	[6-590]	01.1984-01.1989
CASE	2055	[6TA-830]	01.1996-01.1998
CASE	2055		01.1990-
CASE	2090	[6-504]	01.1978-01.1988
CASE	2094	[6-504]	01.1983-01.1988
CASE	2096	[6-359]	01.1985-01.1990
CASE	2144		01.1994-01.1996
CASE	2155	[6TA-830]	01.1996-01.1998
CASE	2166		01.1994-01.1996
CASE	2188		01.1994-01.1996
CASE	2290	[6-504]	01.1978-01.1988
CASE	2294	[504BD]	01.1983-01.1987
CASE	2294	[6T-590]	01.1983-01.1987
CASE	2366		01.1997-
CASE	2390	[504]	01.1978-01.1988
CASE	2394	[504BD]	01.1983-01.1987
CASE	2394	[6T-590]	01.1983-01.1987
CASE	2470	[504]	01.1979-01.1988
CASE	2590	[504]	01.1980-01.1983
CASE	2594	[504BD]	01.1983-01.1987
CASE	2594	[6T-590]	01.1983-01.1987
CASE	2670	[504]	01.1979-01.1988
CASE	2870	[6-674]	01.1979-01.1988
CASE	3294	[6-504]	01.1983-01.1985
CASE	3394	[6-504]	01.1985-01.1988
CASE	3594	[6-504]	01.1986-01.1988
CASE	4490	[6-504]	01.1984-01.1988
CASE	4494	[6-504]	01.1984-01.1987
CASE	4690	[6-504]	01.1984-01.1988
CASE	4694	[6-504]	01.1984-01.1990
CASE	4890	[6-674]	01.1984-01.1988
CASE	4894	[6-674]	01.1986-01.1990
CASE	4994		01.1986-01.1990
CASE	7110	[6-505]	01.1987-01.1993
CASE	7120	[6-505]	01.1987-01.1993
CASE	7130	[6-505]	01.1987-01.1993
CASE	7140	[6-505]	01.1987-01.1993
CASE	7210	[6-505]	01.1993-01.1996
CASE	7220	[6-505]	01.1993-01.1996
CASE	7230	[6-505]	01.1993-01.1996
CASE	7240	[6-505]	01.1993-01.1996
CASE	7250	[6-505]	01.1993-01.1996
CASE	8930	[505]	01.1996-
CASE	9110		01.1986-01.1993
CASE	9130		01.1986-01.1993
CASE	9210 8.3		01.1990-01.1996
CASE	9230 8.3		01.1990-01.1996
CASE	9240 8.3		01.1990-01.1996
CASE	9310 8.3		01.1995-12.2000
CASE	9330 8.3		01.1995-12.2000
DAEWOO	Engine 14.6	[V158T1]

0191-2347	CUMMINS
028000-7430	DENSO
028000-7431	DENSO
10461645	DELCO
10465537	DELCO
11.131.300	ISKRA / LETRIKA
11.131.532	ISKRA / LETRIKA
128000-4340	DENSO
128000-5330	DENSO
128000-5331	DENSO
128000-5620	DENSO
128000-5621	DENSO
128000-5623	DENSO
128000-6391	DENSO
128000-9800	DENSO
128000-9801	DENSO
17353N	WAI / TRANSPO
17353R	WAI / TRANSPO
182-30326	ROBERT'S
193432A01	CASE
193432A1	CASE
193432A2	CASE
20419451OE	REAL
20540107	PRESTOLITE
228000-5600	DENSO
228000-5601	DENSO
228000-5603	DENSO
228000-5620	DENSO
228000-5621	DENSO
228000-5623	DENSO
228000-6390	DENSO
228000-6391	DENSO
228000-6392	DENSO
228000-6393	DENSO
2347	CUMMINS
246-30116	DIXIE
254658	KUHNER
254658M	KUHNER
254714	KUHNER
254714M	KUHNER
256088	KUHNER
28000-7430	DENSO
28000-7431	DENSO
3283813	CUMMINS
3675245	CUMMINS
3920328	CUMMINS
3921012	CUMMINS
56027703AB	CHRYSLER
6021154.1	SANDO
630.010.123	PSH
87419387	CUMMINS
8901	CEVAM
91-29-5060	WILSON
91902C1	CASE
A162469	CASE
A187615	CASE
A187728	CASE
ANM12576X	ANDEL
AZF4138	ISKRA / LETRIKA
AZF4577	ISKRA / LETRIKA
CGB-23947	AINDE
CST21154GS	CASCO
DRS0356	DELCO
IS1089	ISKRA / LETRIKA
LETIS1089	WOODAUTO
MAV231540	SIOM
MS117	MAHLE
MS 117	MAHLE
S-8098	DIXIE
STR70310	WOODAUTO
STR7963	ELECTROLOG
STR80096	WOODAUTO
STRJ347	3EFFE
STRJ348	3EFFE
STX210082	STARDAX
UD11318S	AS-PL
UNIT BOM 190-879	WAI / TRANSPO

S9233
