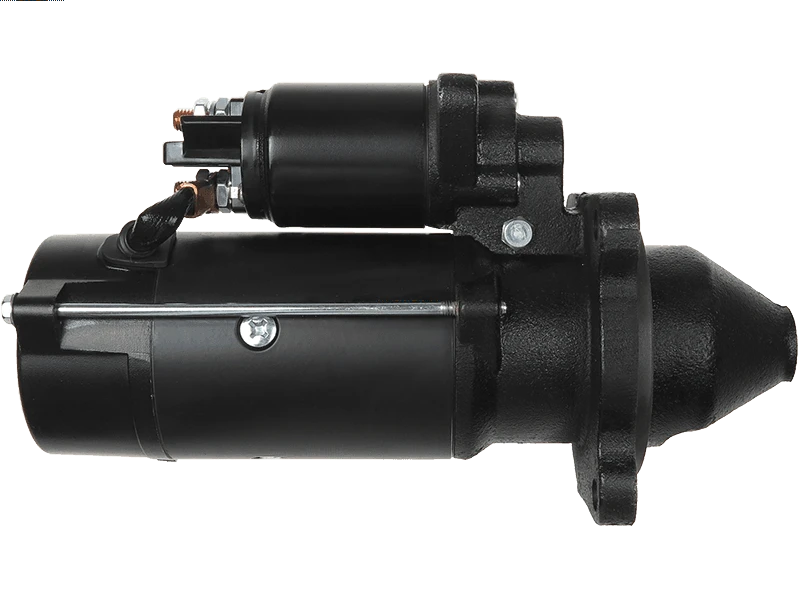

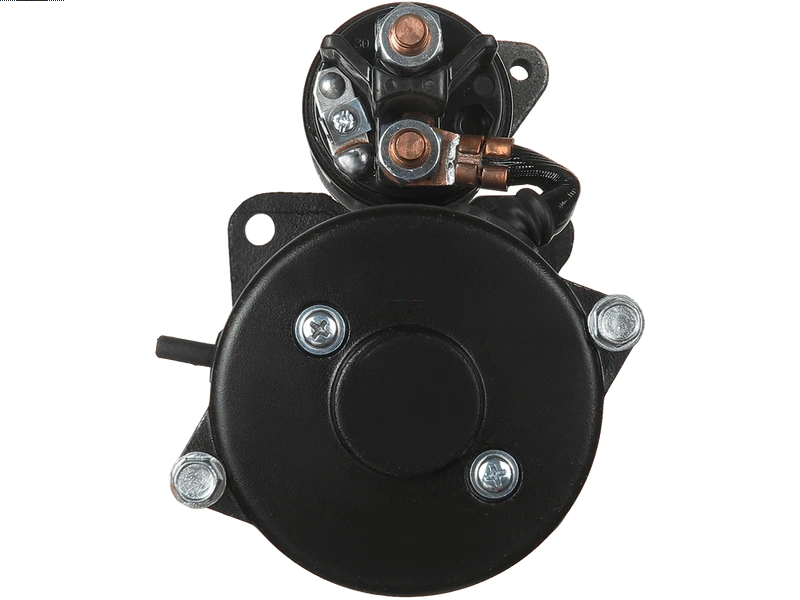

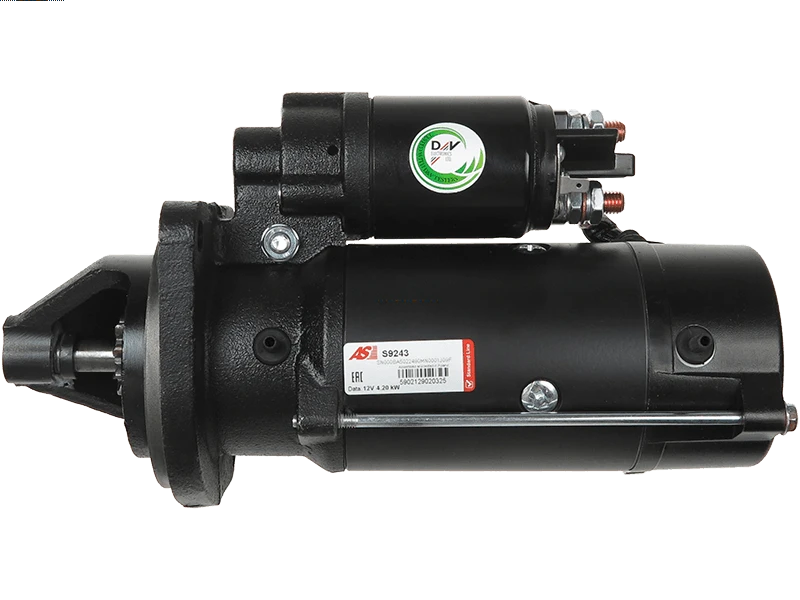

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 577.28 including GST
NZ$ 501.98 excluding GST
or four payments of $144.32
with
Learn More
each
S9243
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
AZF4155Associated Numbers
0001230007 0001230010 0001230023 0001262008 063522300070 0986018980 10240B 10240I 10240M 11.131.604 113182 25-3059 254521 254521B 254521I 4755109 500325145 500338952 504059251 5801441814 63216831 63522300 AEY1562 AZF4155 DRS8980 IS1262 LRS01562 MS79 MSN2039 S5014L UD12004SSpecifications
| Kilowatt | 4.20 kW |
| Length (L.1) | 321 mm |
| Mount Hole Center - Center (O.1) | 146 mm |
| Mount Hole Center - Center (O.2) | 103 mm |
| Mount Hole Center - Center (O.3) | 103 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | 12 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 110 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NEW HOLLAND | L60 2.9 | 09.1995-12.1998 | |
| NEW HOLLAND | L65 3.6 | 09.1995-12.1998 | |
| NEW HOLLAND | L75 3.9 | 09.1995-12.1998 | |
| NEW HOLLAND | L85 3.9 | 09.1995-12.1998 | |
| NEW HOLLAND | L95 3.9 | 09.1995-12.1998 | |
| NEW HOLLAND | TL Series | 10.1998- |
Reference Information
| 0001230007 | BOSCH |
| 0001230010 | BOSCH |
| 0001230023 | BOSCH |
| 0001262008 | BOSCH |
| 063522300070 | MAGNETI MARELLI |
| 0986018980 | BOSCH |
| 10240B | KUHNER |
| 10240I | KUHNER |
| 10240M | KUHNER |
| 11.131.604 | ISKRA / LETRIKA |
| 113182 | CARGO |
| 20419022BN | REAL |
| 20419022OE | REAL |
| 220077 | ERA |
| 220550 | ERA |
| 220753 | ERA |
| 25-3059 | ELSTOCK |
| 4755109 | IVECO |
| 47783079 | NEW HOLLAND |
| 500325145 | IVECO |
| 500338952 | IVECO |
| 504059251 | IVECO |
| 5801441814 | IVECO |
| 6021220.0 | SANDO |
| 6021220.1 | SANDO |
| 63216831 | MAGNETI MARELLI |
| 63522300 | MAGNETI MARELLI |
| 87470949 | IVECO |
| 87470949 | NEW HOLLAND |
| AEY1562 | AUTOELECTRO |
| ANM11200X | ANDEL |
| AZF4155 | ISKRA / LETRIKA |
| CGB-28980 | AINDE |
| CST21220AS | CASCO |
| CST21220GS | CASCO |
| DRS8980 | DELCO |
| F032113182 | CARGO |
| IS1262 | ISKRA / LETRIKA |
| LRS01562 | LUCAS |
| LRS1562 | LUCAS |
| MAV121530 | SIOM |
| MAV2070 | SIOM |
| MAV232200A | SIOM |
| MS79 | MAHLE |
| MS 79 | MAHLE |
| MSN2039 | MAGNETI MARELLI |
| S12BH0857A2 | SIDAT |
| S12MA0106A2 | SIDAT |
| S5014L | PRESTOLITE |
| S9243 | AS-PL |
| STR10201 | ELECTROLOG |
| STR1927 | ELECTROLOG |
| STR79221 | ELECTROLOG |
| STRL092 | 3EFFE |
| STX210081 | STARDAX |
| UD12004S | AS-PL |
Video/Publications
