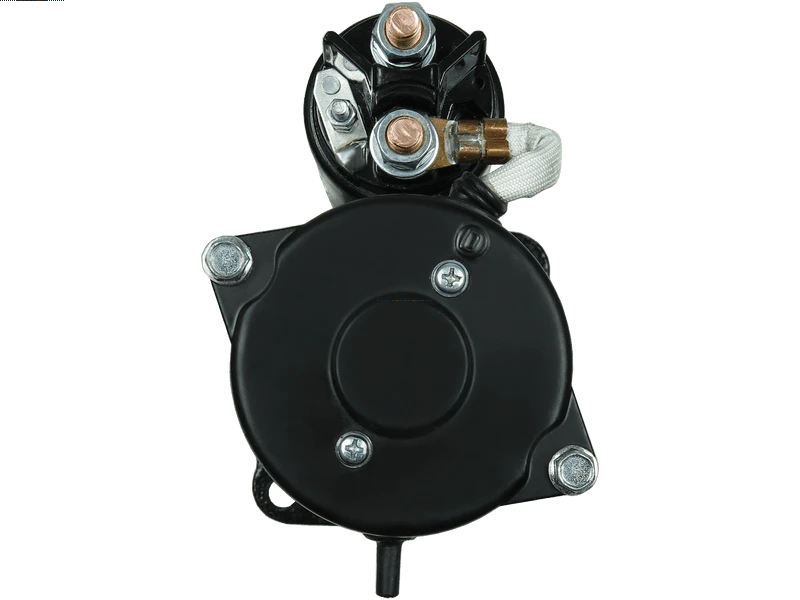

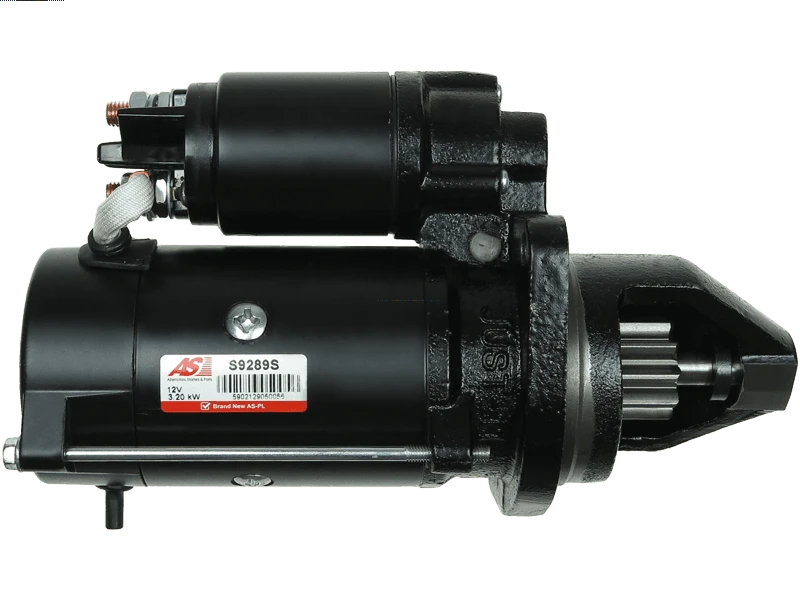

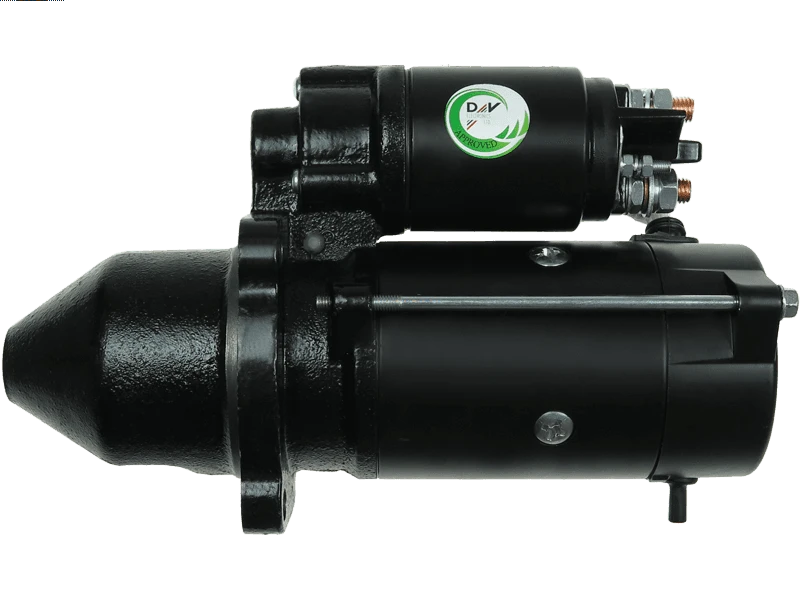

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 510.90 including GST
NZ$ 444.26 excluding GST
or four payments of $127.73
with
Learn More
each
S9289S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
AZE4189Associated Numbers
11.131.885 18469N 255026 273-32106 443115142740 91-23-6502 9142740 AZE4189 DRS0574 IS1323 MAHMS240 MS240 RE507236 RE518057 RE518112 RE546027 S9289S TS-6253 UD13622SSpecifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 287 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 49 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 6700 | 01.1997- | |
| JOHN DEERE | 6700 S | 01.1997- | |
| JOHN DEERE | Engine 2.9 | [3029DF] | |
| JOHN DEERE | Engine 2.9 | [3029HFU70] | |
| JOHN DEERE | Engine 2.9 | [3029TF] | |
| JOHN DEERE | Engine 3.9 | [4039DF] | |
| JOHN DEERE | Engine 3.9 | [4039TF] | |
| JOHN DEERE | Engine 4.5 | [4045DF] | |
| JOHN DEERE | Engine 4.5 | [4045HF] | |
| JOHN DEERE | Engine 4.5 | [4045TF] | |
| JOHN DEERE | Engine 6.8 | [6068HF275] | |
| JOHN DEERE | Engine 6.8 | [6068TF] |
Reference Information
| 11.131.885 | ISKRA / LETRIKA |
| 18469N | WAI / TRANSPO |
| 255026 | KUHNER |
| 273-32106 | DIXIE |
| 443115142740 | MAGNETON |
| 91-23-6502 | WILSON |
| 9142740 | MAGNETON |
| AZE4189 | ISKRA / LETRIKA |
| DRS0574 | DELCO |
| IS1323 | ISKRA / LETRIKA |
| MAHMS240 | WOODAUTO |
| MS240 | MAHLE |
| MS 240 | MAHLE |
| RE507236 | JOHN DEERE |
| RE518057 | JOHN DEERE |
| RE518112 | JOHN DEERE |
| RE546027 | JOHN DEERE |
| RE546868 | JOHN DEERE |
| S9289S | AS-PL |
| STR79281 | ELECTROLOG |
| STX210090 | STARDAX |
| TS-6253 | DIXIE |
| UD13622S | AS-PL |
Video/Publications
