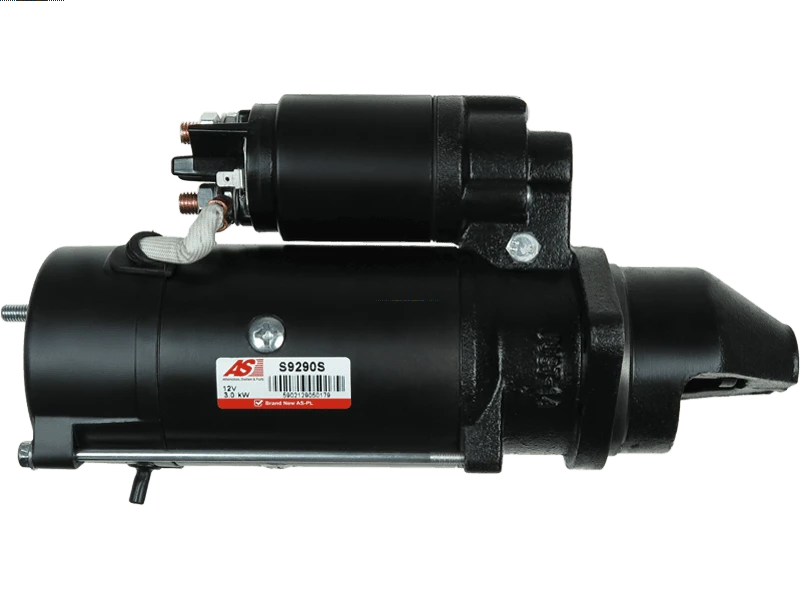

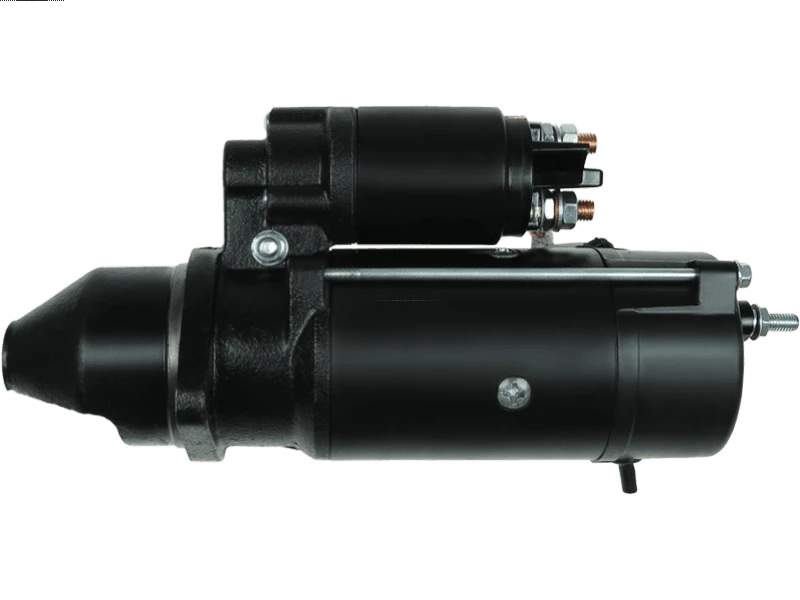

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 491.46 including GST
NZ$ 427.36 excluding GST
or four payments of $122.87
with
Learn More
each
S9290S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
AZF4227Associated Numbers
0011230230 11.131.855 182-30317 19083037 25-5040 72735672 7700066115 7700072251 88213721 AZF4227 AZF4582 DRS0271 DS1381 IS1369 LRS03867 MAHMS44 STI8245 UD13621S UNIT BOM 182-1147 Claas 0011230231 11131318 Mahle show 11131823 11131855 11230230 113532 Cargo 255040 Elstock 560504102 PSH 600247102 DRI 6021113 Sando 77000066115 AZF4218 CT7700066115 MS44 RA7700072251 MS 44 CLAAS 11230231Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 351 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 34 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLAAS | Arion 410 CIS 4.5 | ||
| CLAAS | Arion 420 4.5 | ||
| CLAAS | Arion 420 CIS 4.5 | ||
| CLAAS | Arion 430 CIS 4.5 | ||
| CLAAS | Arion 510 4.5 | ||
| CLAAS | Arion 520 4.5 | ||
| CLAAS | Arion 530 4.5 | ||
| CLAAS | Arion 540 4.5 | ||
| CLAAS | Arion 610 6.8 | ||
| CLAAS | Arion 620 6.8 | ||
| CLAAS | Arion 630 6.8 | ||
| CLAAS | Arion 640 6.8 |
Reference Information
| 0011230230 | CLAAS |
| 0011271610 | CLAAS |
| 11.131.318 | ISKRA / LETRIKA |
| 11.131.855 | ISKRA / LETRIKA |
| 11271610 | CLAAS |
| 113532 | CARGO |
| 182-30317 | ROBERT'S |
| 19083037 | DELCO |
| 25-5040 | ELSTOCK |
| 5065813 | MEAT & DORIA |
| 72735672 | MAHLE |
| 7700047132 | RENAULT |
| 7700061622 | RENAULT |
| 7700066115 | CLAAS |
| 7700072251 | CLAAS |
| 88213721 | POWERMAX |
| AZF4227 | ISKRA / LETRIKA |
| AZF4582 | ISKRA / LETRIKA |
| DRS0271 | DELCO |
| DS1381 | DELCO |
| F032113532 | CARGO |
| IS1369 | ISKRA / LETRIKA |
| LRS03867 | LUCAS |
| LRS3867 | LUCAS |
| MAHMS44 | WOODAUTO |
| MS 44 | MAHLE |
| STI8245 | KRAUF |
| STR79272 | ELECTROLOG |
| UD13621S | AS-PL |
| UNIT BOM 182-1147 | WAI / TRANSPO |
Video/Publications
