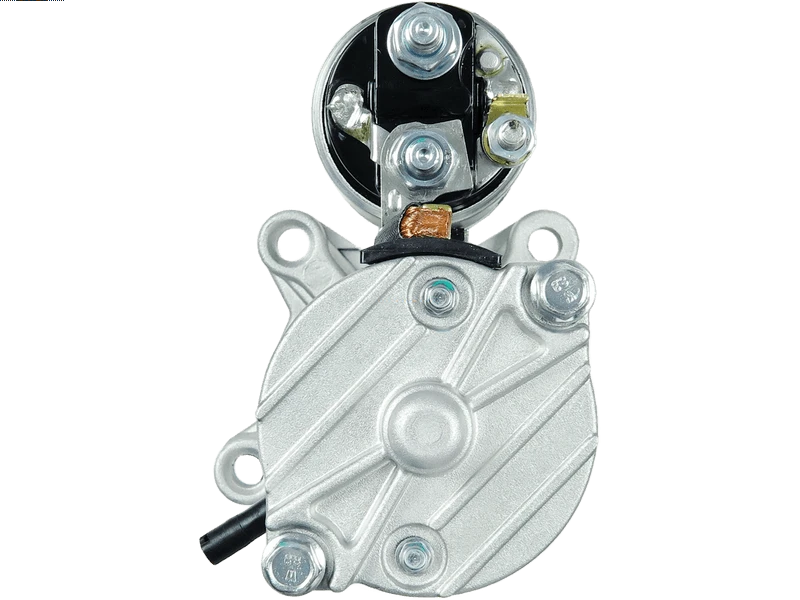

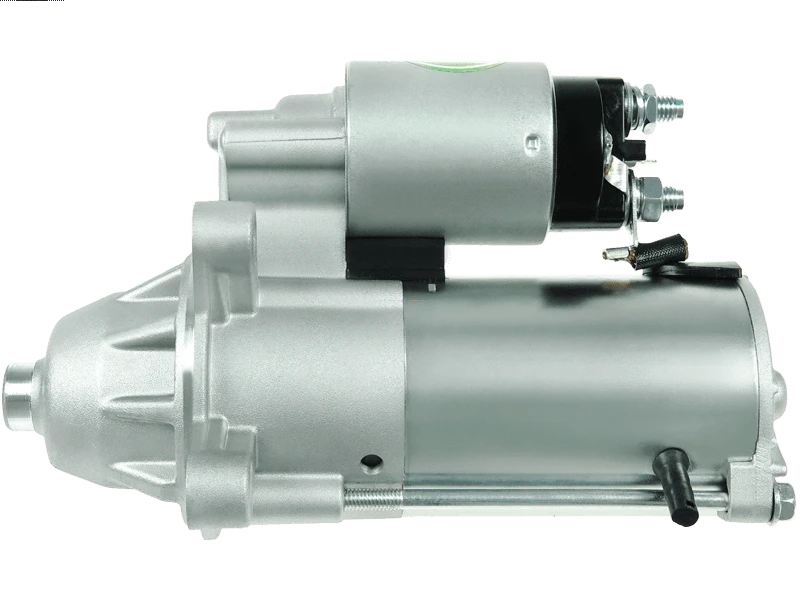

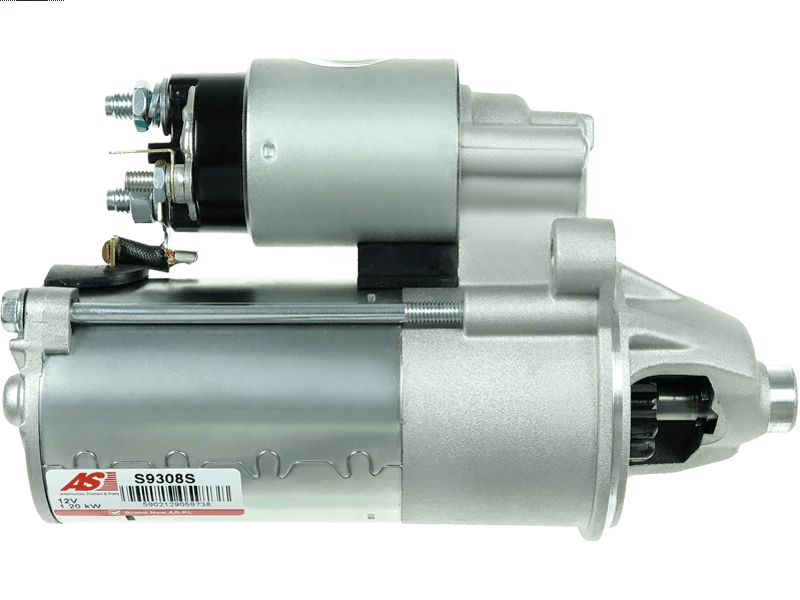

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 238.73 including GST
NZ$ 207.59 excluding GST
or four payments of $59.68
with
Learn More
each
S9308S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
XW4U-11000-ABAssociated Numbers
220899 25-3441 254088V 3R83-11000-AA 3R83-11000-AB 590.541.113 5W4Z-11002-AA 6014118 6651N 6651R 88214035 91-02-5895 91-02-5895N C2C-1127 C2C-37198 CST14118 CST14118AS CST14118ES CST14118GS CST14118OS CST14118RS DRS3973 DRS3973N EU2Z-11V002-BRM LRS02270 S-2102 S9308S STF8311 STR61816 UD14213S XR8-48128 XW4U-11000-AB XW4U-11000-AC XW4U11000AB XW4Z-11002-AC XW4Z-11002-ACRMSpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 64 mm |
| Mount Hole Center - Center (O.2) | 103 mm |
| Mount Hole Center - Center (O.3) | 70 mm |
| Mount Hole Diameter (C.1) | 9.50 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| Mount Hole Diameter (C.3) | 9.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 16 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | S-Type 2.5 V6 | [AJ-V6] | 01.2002- |
| JAGUAR | S-Type 3.0 V6 | [AJ-V6] | 01.2000- |
| JAGUAR | XJ6 3.0 | [AJ-V6] | 01.2003-12.2009 |
Reference Information
| 02XR848128 | JAGUAR |
| 1359119 | VOLVO |
| 1367049 | VOLVO |
| 20-100-01038 | VISTEON |
| 20450811OE | REAL |
| 220899 | ERA |
| 25-3441 | ELSTOCK |
| 254088 | KUHNER |
| 254088V | KUHNER |
| 331887 | LOGISTIK |
| 3R83-11000-AA | FORD |
| 3R83-11000-AB | FORD |
| 3R83-11000-AC | FORD |
| 410248 | JAGUAR |
| 5014897 | MEAT & DORIA |
| 590.541.113.020 | PSH |
| 590.541.113.028 | PSH |
| 590.541.113.230 | PSH |
| 590.541.113.235 | PSH |
| 5W4Z-11002-AA | FORD |
| 6014118.1 | SANDO |
| 6651N | WAI / TRANSPO |
| 6651R | WAI / TRANSPO |
| 88214035 | POWERMAX |
| 91-02-5895 | WILSON |
| 91-02-5895N | WILSON |
| 9949 | CEVAM |
| AEY2270 | AUTOELECTRO |
| ANM16193X | ANDEL |
| C2C-1127 | JAGUAR |
| C2C-37198 | JAGUAR |
| CGB-53441 | AINDE |
| CST14118GS | CASCO |
| DRS3973 | DELCO |
| DRS3973N | DELCO |
| EU2Z-11V002-BRM | FORD |
| LRS02270 | LUCAS |
| LRS2270 | LUCAS |
| MAV161180 | SIOM |
| S12VS0696 | SIDAT |
| S12VS0696A2 | SIDAT |
| S-2102 | DIXIE |
| S9308S | AS-PL |
| STF8311 | KRAUF |
| STR61816 | WOODAUTO |
| STR8977 | ELECTROLOG |
| UD14213S | AS-PL |
| XR8-48128 | JAGUAR |
| XW4U-11000-AB | FORD |
| XW4U-11000-AC | FORD |
| XW4Z-11002-AC | FORD |
| XW4Z-11002-ACRM | FORD |
Video/Publications
S9308SView your shopping basket or Browse other items in Starter Motors.
