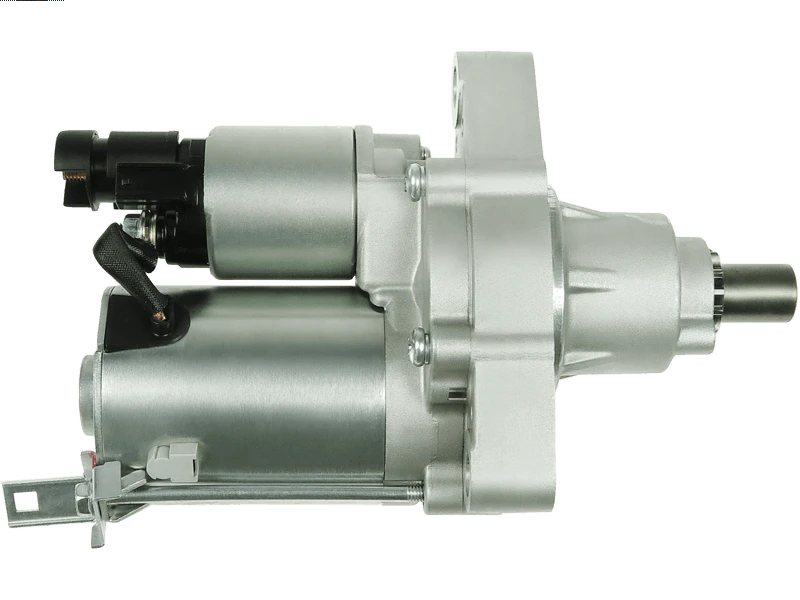

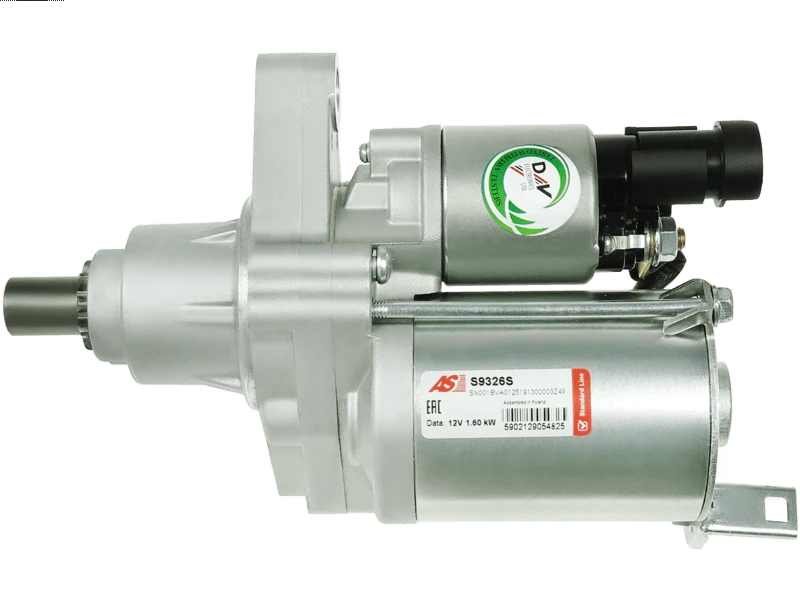

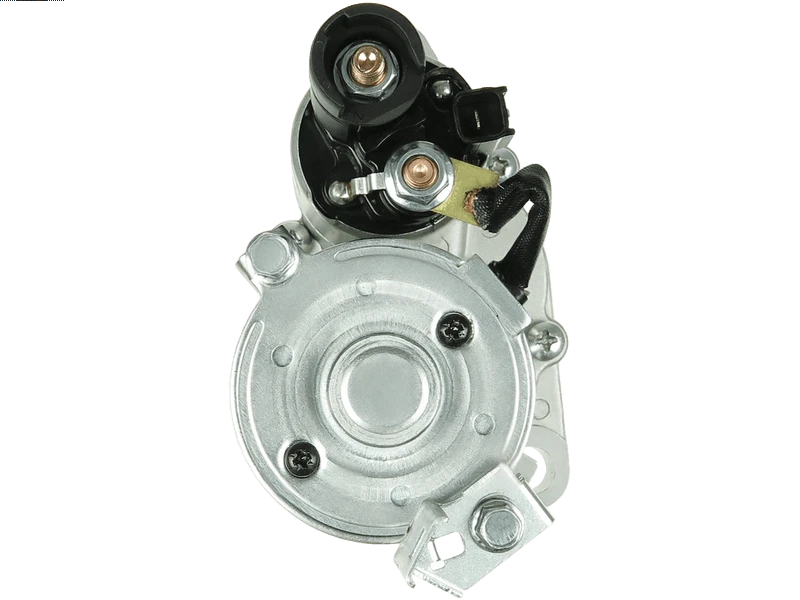

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 291.72 including GST
NZ$ 253.67 excluding GST
or four payments of $72.93
with
Learn More
each
S9326S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
06312-RDB-515RM 16115 19016N 19016R 31200-RDB-A01 31200-RDB-A01RM 6033112 91-26-2144 CST33112 CST33112AS CST33112ES CST33112GS CST33112OS CST33112RS S-80323Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 257 mm |
| Mount Hole Center - Center (O.1) | 130 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 59 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ACURA | TL 3.5 | 01.2007-12.2008 | |
| ACURA | TL 3.7 | 01.2010-12.2014 | |
| HONDA | Accord 3.5 | 01.2008-12.2015 |
Reference Information
| 06312RDB515 | HONDA |
| 06312-RDB-515RM | HONDA |
| 16115 | DELCO |
| 19016N | WAI / TRANSPO |
| 19016R | WAI / TRANSPO |
| 31200-RDB-A01 | HONDA |
| 31200-RDB-A01RM | HONDA |
| 6033112 | SANDO |
| 91-26-2144 | WILSON |
| CST33112 | CASCO |
| CST33112AS | CASCO |
| CST33112ES | CASCO |
| CST33112GS | CASCO |
| CST33112OS | CASCO |
| CST33112RS | CASCO |
| S-80323 | DIXIE |
| STX210211 | STARDAX |
| STX210211R | STARDAX |
Video/Publications
