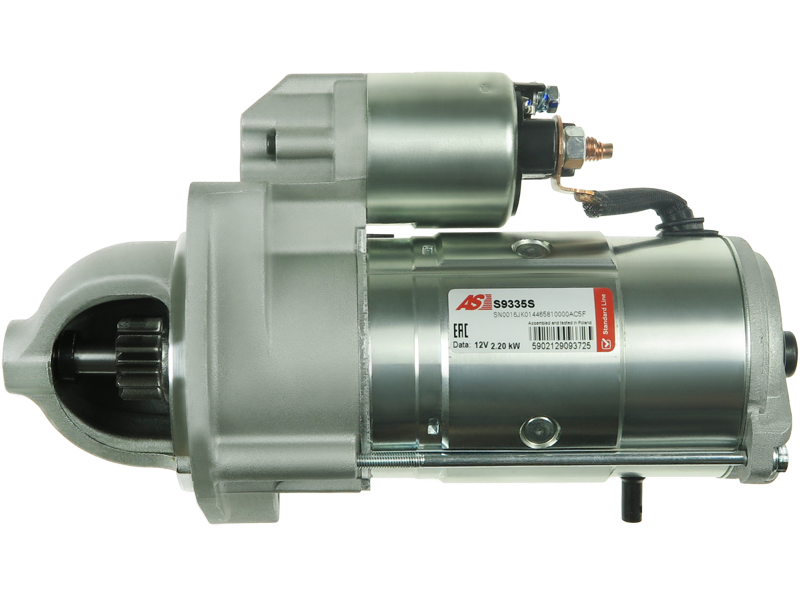

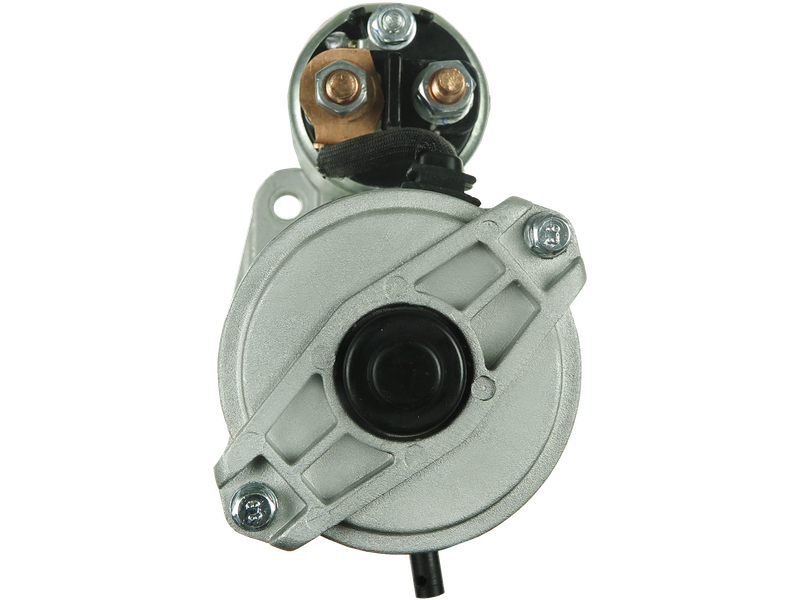

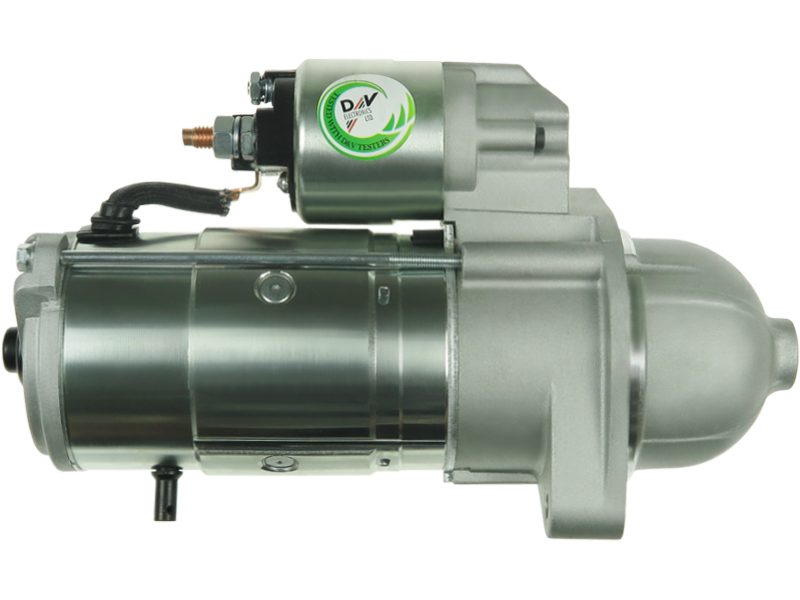

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MANDO
Price:
NZ$ 374.60 including GST
NZ$ 325.74 excluding GST
or four payments of $93.65
with
Learn More
each
S9335S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TM000A34001Associated Numbers
114270 12104 17040N 25-3473 255074V 3564 550.503.102 6042101 66115-13801 66115-14101 6611513801 6611514001 66151-53101 66515-10101 8000203 943213511010 A6611513801 CST42101 CST42101AS CST42101ES CST42101GS CST42101OS CST42101RS DRS0227 DS1337 LRS02301 MSRC1351 S9335S STR54180 STV4270 TM000A34001 UD14945SSpecifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 254 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | MANDO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SSANGYONG | Actyon 2.0 XDi | [D20DT] | 07.2007- |
| SSANGYONG | Actyon 2.0 XDi 4WD | [D20DT] | 07.2007- |
| SSANGYONG | Actyon Sports 2.0 XDi | [D20DT] | 04.2007- |
| SSANGYONG | Kyron 2.0 XDi 4x4 | 05.2005- | |
| SSANGYONG | Kyron 2.7 XDi | [D27DT] | 03.2006- |
| SSANGYONG | Rexton 2.7 XDi | [D27DT] | 03.2005-08.2006 |
| SSANGYONG | Rexton 2.7 XDi | [D27DT] | 08.2004- |
| SSANGYONG | Rexton 2.7 XDi 4x4 | [D27DT] | 03.2011- |
| SSANGYONG | Rexton 2.7 XDi Turbo 4x4 | [D27DTP] | 03.2011- |
| SSANGYONG | Rexton 2.9 TD | [OM602.962] | 04.2002- |
| SSANGYONG | Rodius 2.7 XDi | [D27DT] | 05.2005- |
| SSANGYONG | Rodius 2.7 XDi 4WD | [D27DT] | 05.2005- |
| SSANGYONG | Stavic 270 2.7 SXDi | [D27DT] | 02.2005- |
| SSANGYONG | Stavic 270 2.7 SXDi 4WD | [D27DT] | 02.2005- |
Reference Information
| 114270 | CARGO |
| 12104 | EAI |
| 220645 | ERA |
| 25-3473 | ELSTOCK |
| 255074 | KUHNER |
| 255074V | KUHNER |
| 3564 | CEVAM |
| 550.503.102 | PSH |
| 550.503.102.415 | PSH |
| 6042101 | SANDO |
| 6611513801 | MERCEDES |
| 66115-13801 | MERCEDES |
| 6611514001 | SSANGYONG |
| 66115-14101 | MERCEDES |
| 66151-53101 | MERCEDES |
| 66515-10101 | MERCEDES |
| 6651510201 | SSANGYONG |
| 8000203 | DELCO |
| 943213511010 | MAGNETI MARELLI |
| A6611513801 | MERCEDES |
| ANM12447X | ANDEL |
| CST42101 | CASCO |
| CST42101AS | CASCO |
| CST42101ES | CASCO |
| CST42101GS | CASCO |
| CST42101OS | CASCO |
| CST42101RS | CASCO |
| DRS0227 | DELCO |
| DS1337 | DELCO |
| F032114270 | CARGO |
| LRS02301 | LUCAS |
| LRS2301 | LUCAS |
| MSRC1351 | MAGNETI MARELLI |
| S12VA0808 | SIDAT |
| S12VA0808A2 | SIDAT |
| S133.106 | PSH |
| S144.963 | PSH |
| S9335S | AS-PL |
| STR00157 | ELECTROLOG |
| STR00283 | ELECTROLOG |
| STR2129 | ELECTROLOG |
| STR54180 | WOODAUTO |
| STV4270 | KRAUF |
| STX200596 | STARDAX |
| TM000A34001 | MANDO |
| UD14945S | AS-PL |
