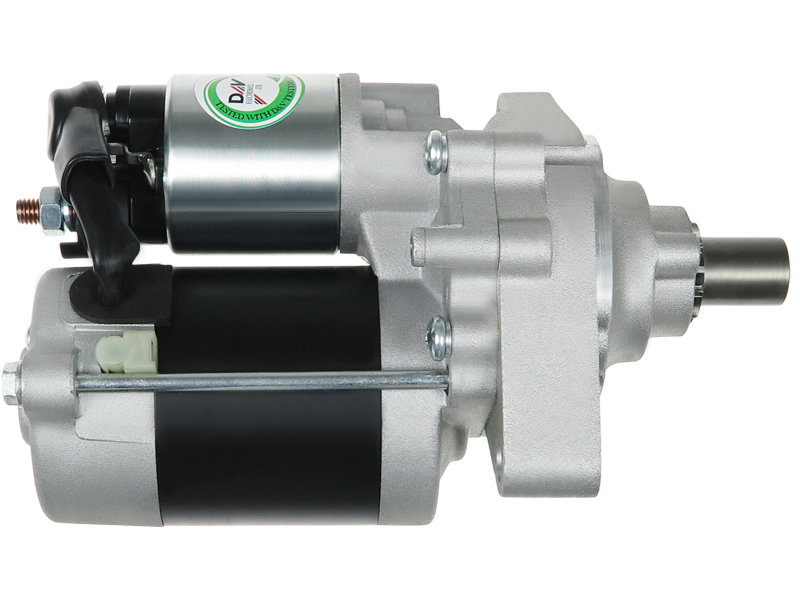

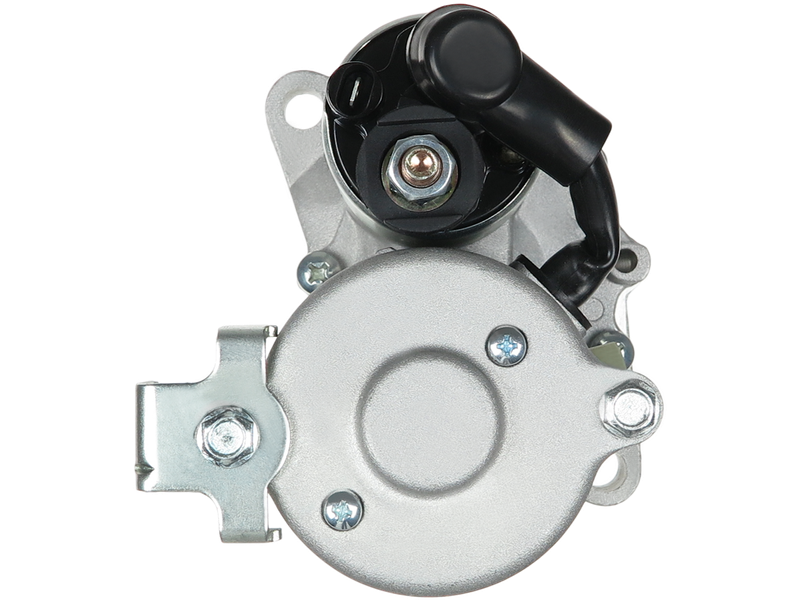

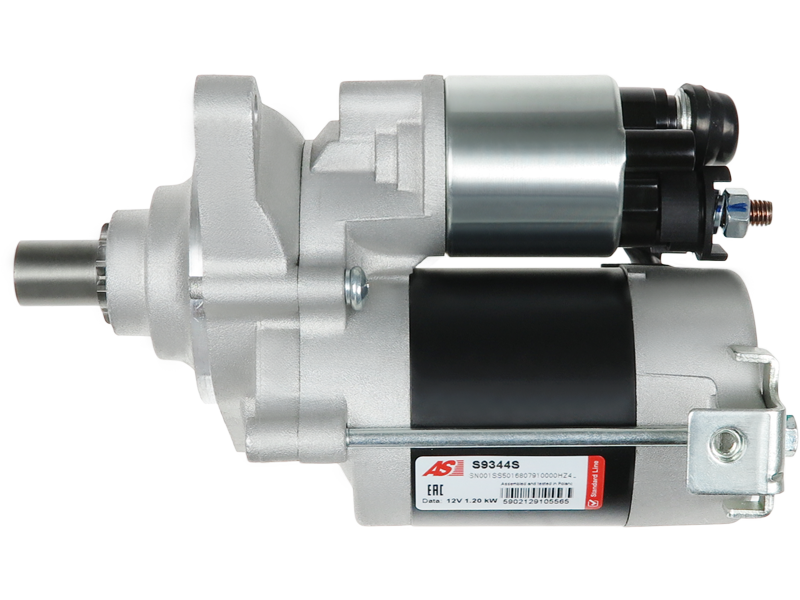

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 339.61 including GST
NZ$ 295.31 excluding GST
or four payments of $84.90
with
Learn More
UOM:
each
Product Code:
S9344S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SM402-13Associated Numbers
0986019051 120.518.092 17474N 25-1495 31200-P30-902 458510 91-26-2015 91-26-2015N 944280524200 AEY1661 J5214020 LRS01282 MRS52420 SM402-13 SM402-13N STR70243 UD20518SSpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 211 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 32 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Civic 1.6 16V VTEC | [D16Z] | 01.1992-12.1995 |
| HONDA | CIVIC V Hatchback (EG) 1.5 i 16V (EG4) | D15B2 | 10.1991-11.1995 |
| HONDA | CIVIC V Hatchback (EG) 1.5 i 16V (EG4) | D15Z1 | 10.1991-11.1995 |
| HONDA | CIVIC V Saloon (EG, EH) 1.5 | D15B2 | 10.1993-12.1995 |
| HONDA | CIVIC V Saloon (EG, EH) 1.5 i 16V (EG8) | D15B2 | 10.1991-11.1995 |
| HONDA | CIVIC V Saloon (EG, EH) 1.5 i 16V (EG8) | D15Z1 | 10.1991-11.1995 |
| HONDA | CRX III (EH, EG) 1.6 ESi (EH6) | D16Y8 | 03.1992-12.1998 |
| HONDA | CRX III (EH, EG) 1.6 ESi (EH6) | D16Z6 | 03.1992-12.1998 |
| HONDA | CRX III (EH, EG) 1.6 i VTi (EG2) | B16A2 | 03.1992-12.1998 |
| HONDA | CRX III (EH, EG) 1.6 i VTi (EG2) | B16A3 | 03.1992-12.1998 |
Reference Information
| 0986019051 | BOSCH |
| 120.518.092 | WAI |
| 17474N | WAI |
| 25-1495 | ELSTOCK |
| 31200-P03-901 | HONDA |
| 31200-P03-9011 | HONDA |
| 31200-P30-902 | HONDA |
| 458510 | VALEO |
| 91-26-2015 | WILSON |
| 91-26-2015N | WILSON |
| 944280524200 | MAGNETI MARELLI |
| AEY1661 | AUTOELECTRO |
| J5214020 | HERTH+BUSS |
| LRS01282 | LUCAS |
| LRS1282 | LUCAS |
| MAV421250 | SIOM |
| MRS52420 | MAGNETI MARELLI |
| S129.830 | WAI |
| SM402-13 | MITSUBA |
| SM402-13N | MITSUBA |
| STR5987 | ELECTROLOG |
| STR70243 | WOODAUTO |
| STX200709 | STARDAX |
| STX200986 | STARDAX |
| STX200986R | STARDAX |
| UD20518S | AS-PL |
