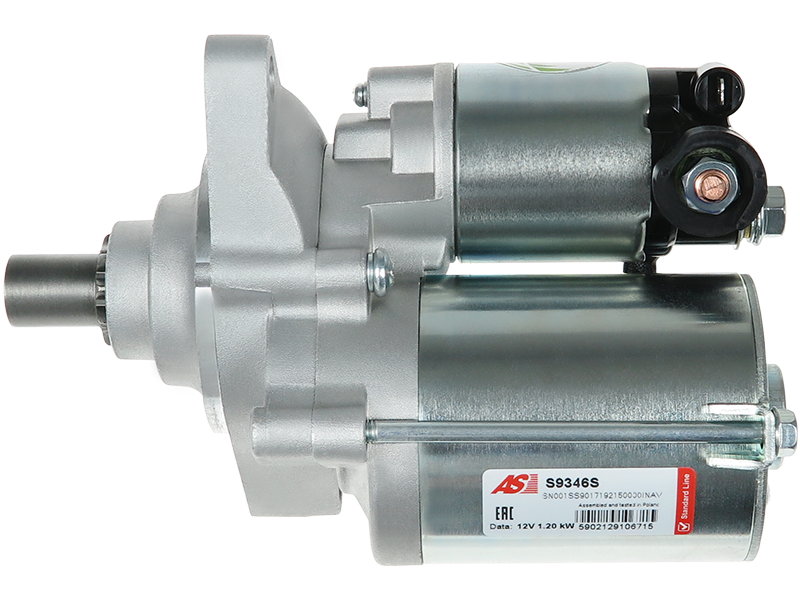

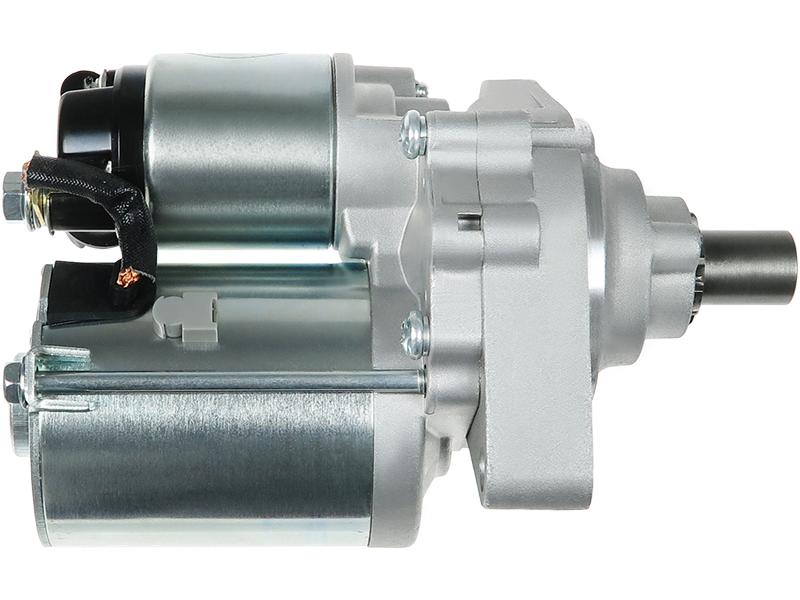

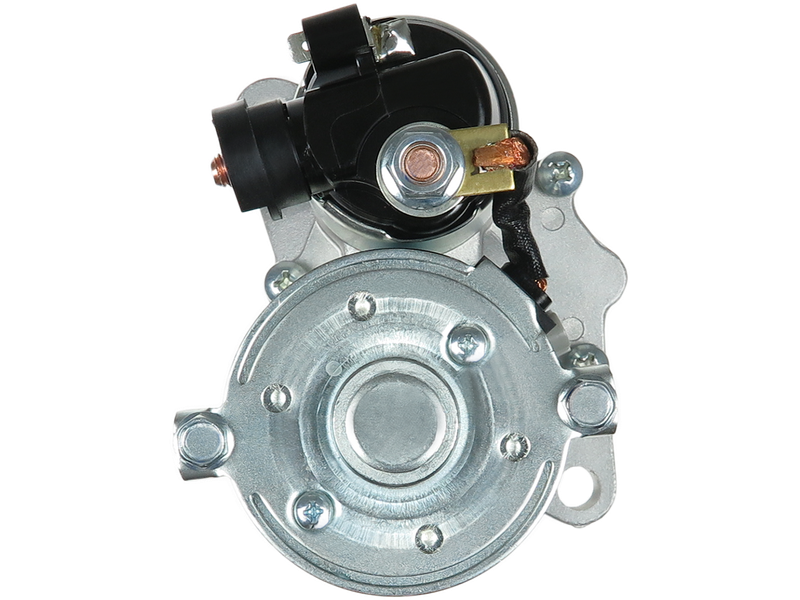

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 364.81 including GST
NZ$ 317.23 excluding GST
or four payments of $91.20
with
Learn More
each
S9346S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SM442-32Associated Numbers
120.559.092 17741N 17741R 255349 31200-OLM-A51 31200-PLM-A51 88213690 91-26-2060 91-26-2060N S-8700 SM442-32 SM442-36 STR75433 UD20522SSpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 200 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ACURA | EL 1.6 | 01.1997-12.1997 | |
| ACURA | EL 1.6 | 01.1998-12.1998 | |
| ACURA | EL 1.6 | 01.1999-12.1999 | |
| ACURA | EL 1.6 | 01.2000-12.2000 | |
| ACURA | EL 1.7 | 01.2001-12.2001 | |
| ACURA | EL 1.7 | 01.2002-12.2002 | |
| ACURA | EL 1.7 | 01.2003-12.2003 | |
| ACURA | EL 1.7 | 01.2004-12.2004 | |
| ACURA | EL 1.7 | 01.2005-12.2005 | |
| HONDA | Civic 1.6 | 01.1996-12.1996 | |
| HONDA | Civic 1.6 | 01.1997-12.1997 | |
| HONDA | Civic 1.6 | 01.1998-12.1998 | |
| HONDA | Civic 1.6 | 01.1999-12.1999 | |
| HONDA | Civic 1.6 | 01.2000-12.2000 | |
| HONDA | Civic 1.7 | 01.2001-12.2001 | |
| HONDA | Civic 1.7 | 01.2002-12.2002 | |
| HONDA | Civic 1.7 | 01.2003-12.2003 | |
| HONDA | Civic 1.7 | 01.2004-12.2004 | |
| HONDA | Civic 1.7 | 01.2005-12.2005 |
Reference Information
| 120.559.092 | PSH |
| 120.559.092.200 | PSH |
| 17741N | WAI / TRANSPO |
| 17741R | WAI / TRANSPO |
| 255349 | KUHNER |
| 31200-OLM-A51 | HONDA |
| 31200-PLM-A51 | HONDA |
| 88213690 | POWERMAX |
| 91-26-2060 | WILSON |
| 91-26-2060N | WILSON |
| S129.764 | PSH |
| S-8700 | DIXIE |
| S9346S | AS-PL |
| SM442-32 | MITSUBA |
| SM442-36 | MITSUBA |
| STR75433 | WOODAUTO |
| UD20522S | AS-PL |
Video/Publications
