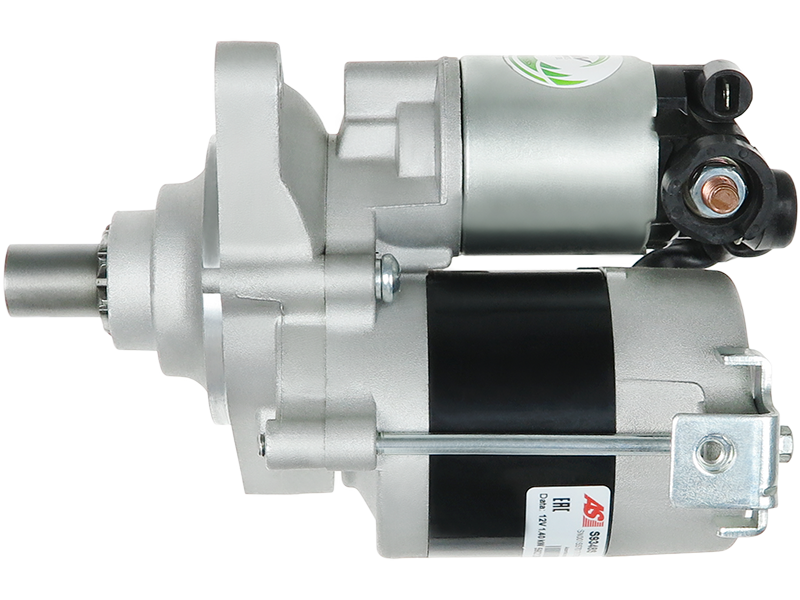

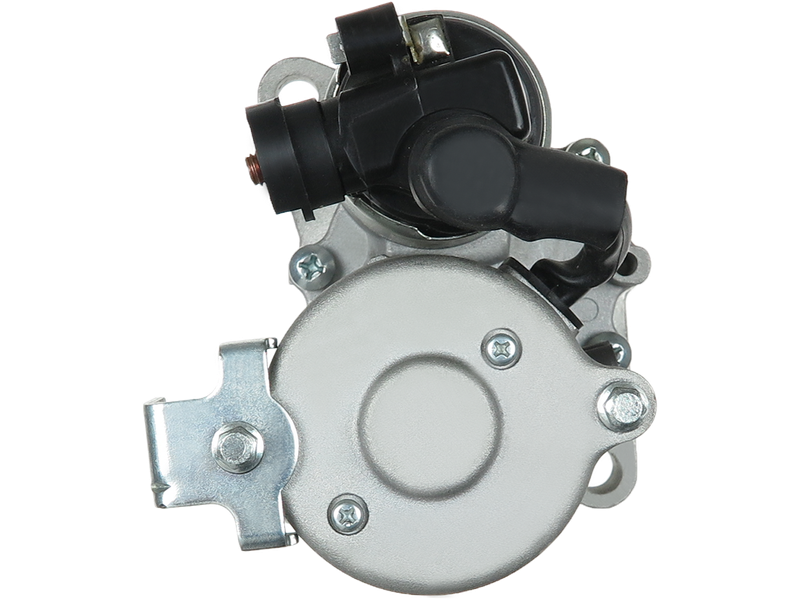

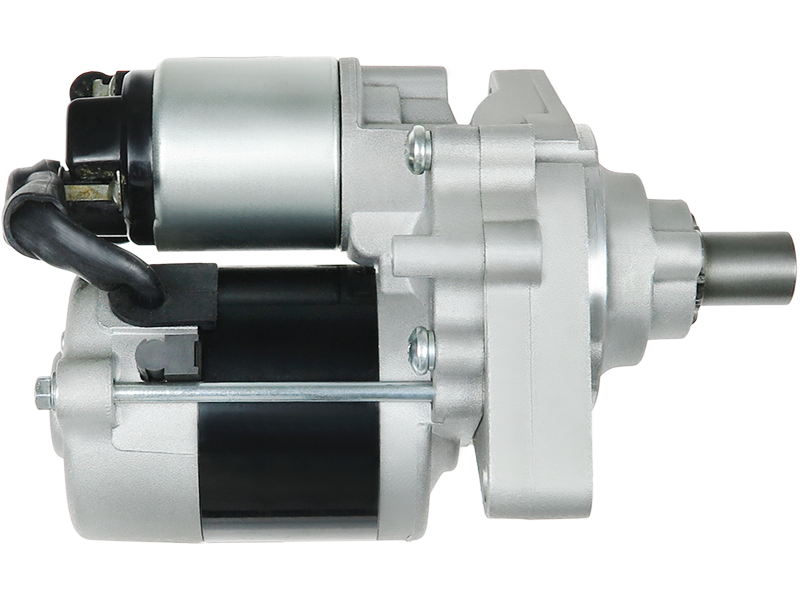

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 356.82 including GST
NZ$ 310.28 excluding GST
or four payments of $89.21
with
Learn More
each
S9348S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SM422-07Associated Numbers
06314-P2E-305RM 17693N 17693R 31200-P2C-901 31200-P2C-901RM 31200-P2E-901 31200-P2E-901RM 31200-P2J-J61 91-26-2017 91-26-2017N SM422-07 SM422-10 STR75408 UD20520SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 202 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 32.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Civic 1.4 i | [D14A3] | 11.1995-02.2001 |
| HONDA | Civic 1.4 i | [D14A4] | 11.1995-02.2001 |
| HONDA | Civic 1.4 i | [D14Z1] | 11.1995-02.2001 |
| HONDA | Civic 1.4 i | [D14Z2] | 11.1995-02.2001 |
| HONDA | Civic 1.4 i | [D14Z4] | 11.1995-02.2001 |
| HONDA | Civic 1.4 i S | [D14A4] | 11.1995-02.2001 |
| HONDA | Civic 1.4 i S | [D14Z2] | 11.1995-02.2001 |
| HONDA | Civic 1.4 i S | [D14Z4] | 11.1995-02.2001 |
| HONDA | Civic 1.5 | [D15Z6] | 11.1995-02.2001 |
| HONDA | Civic 1.5 i | [D15Z6] | 11.1995-02.2001 |
| HONDA | Civic 1.5 i LSi | [D15B7] | 08.1993-11.1995 |
| HONDA | Civic 1.6 i | [D16Y5] | 11.1995-02.2001 |
| HONDA | Civic 1.6 i | [D16Y7] | 03.1996-03.2000 |
| HONDA | Civic 1.6 i VTEC | [D16Y6] | 11.1995-02.2001 |
| HONDA | Civic 1.6 i VTEC | [D16Y8] | 03.1996-03.2000 |
| HONDA | Civic 1.6 i VTEC | [D16Y8] | 11.1995-02.2001 |
| HONDA | Civic 1.6 VTi | [B16A2] | 11.1995-02.2001 |
Reference Information
| 06314-P2E-305RM | HONDA |
| 17693N | WAI / TRANSPO |
| 17693R | WAI / TRANSPO |
| 31200-P2C-901 | HONDA |
| 31200-P2C-901RM | HONDA |
| 31200-P2E-901 | HONDA |
| 31200-P2E-901RM | HONDA |
| 31200-P2J-J61 | HONDA |
| 91-26-2017 | WILSON |
| 91-26-2017N | WILSON |
| SM422-07 | MITSUBA |
| SM422-10 | MITSUBA |
| STR75408 | WOODAUTO |
| STX200986 | STARDAX |
| STX200986R | STARDAX |
| UD20520S | AS-PL |
Video/Publications
