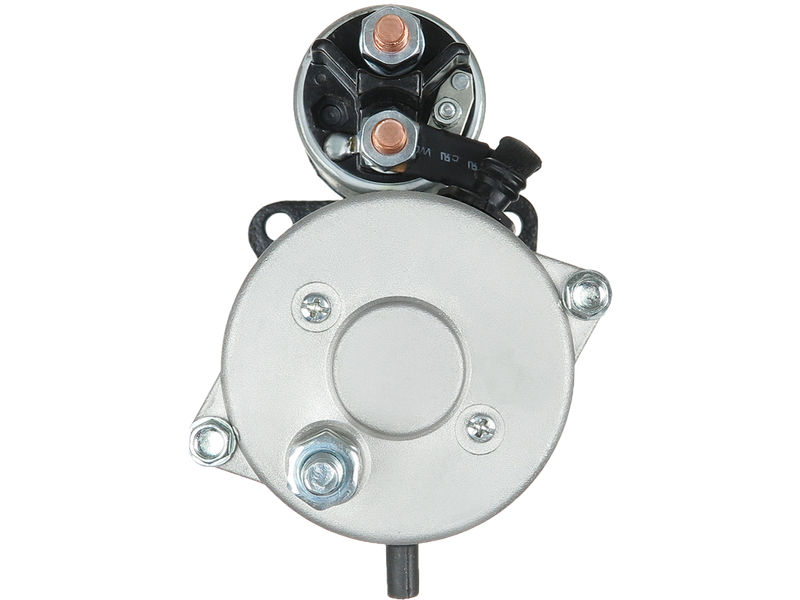

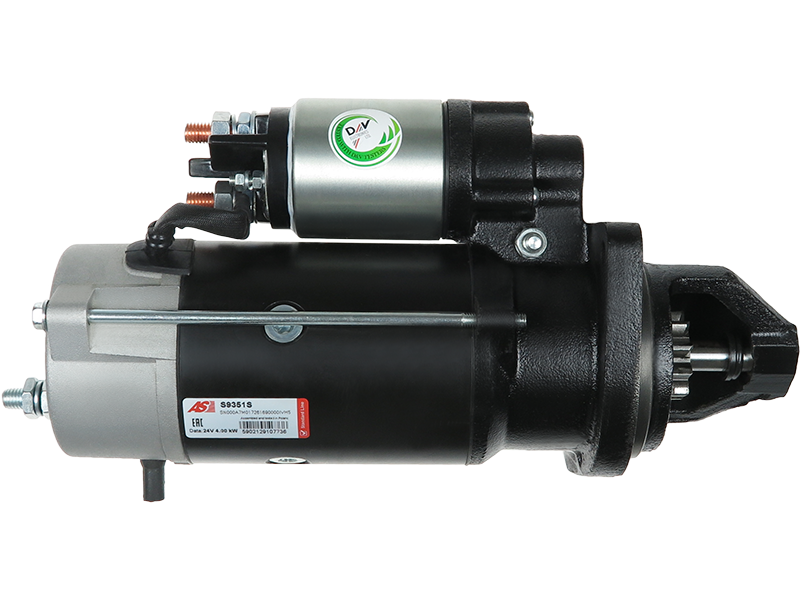

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 597.39 including GST
NZ$ 519.47 excluding GST
or four payments of $149.35
with
Learn More
each
S9351S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
AZF4347Associated Numbers
182-1166 182-1166A 2010032 3575205 3586846 5568664115 701.520.103 AZF4266 IS1316 T410862 UD11324S 11131987 Mahle 11132033 11132262 Caterpillar Perkins Terex 701520103 PSH 72735758 AZF4274 AZF4347 MAHMS130 Wood Auto MS130 MS642OF RNLMS130 RNL STR60733Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 348 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOGELE | 1600-1 | [1104D-E44TA] | 07.1982- |
| VOGELE | 1600-1 EP | [1104D-E44TA] | 09.1982- |
| VOGELE | 1602-2 | [1104D-E44TA] | 11.1982- |
| VOGELE | 1603-2 | [1004D-E44TA] | 08.1983- |
| VOGELE | 1800-1 | [1106D-E66TA] | 07.1982- |
| VOGELE | 1800-1 EP | [1106D-E66TA] | 09.1982- |
| VOGELE | 1800-2 SJ | [1106D-E66TA] | 11.1982- |
| VOGELE | 1802-2 | [1106D-E66TA] | 11.1982- |
| VOGELE | 1803-1 | [1106D-E66TA] | 07.1983- |
| VOGELE | 1803-2 | [1106D-E66TA] | 01.1983- |
Reference Information
| 182-1166 | WAI / TRANSPO |
| 182-1166A | WAI / TRANSPO |
| 2010032 | VOGELE |
| 20419046BN | REAL |
| 20419046OE | REAL |
| 2873K406 | PERKINS |
| 3575205 | CATERPILLAR |
| 3586846 | PERKINS |
| 5568664115 | TEREX |
| 6021640.0 | SANDO |
| 6021640.1 | SANDO |
| 701.520.103 | PSH |
| AZF4266 | ISKRA / LETRIKA |
| CST21640AS | CASCO |
| CST21640GS | CASCO |
| IS1316 | ISKRA / LETRIKA |
| MAV236400A | SIOM |
| MS 130 | MAHLE |
| S135.255 | PSH |
| S145.323 | PSH |
| S9351S | AS-PL |
| STR79322 | ELECTROLOG |
| T410862 | PERKINS |
| UD11324S | AS-PL |
