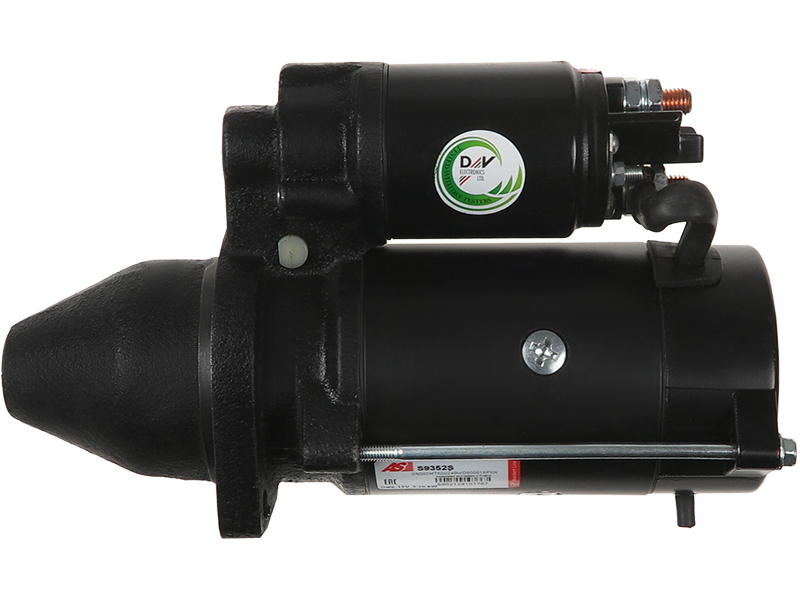

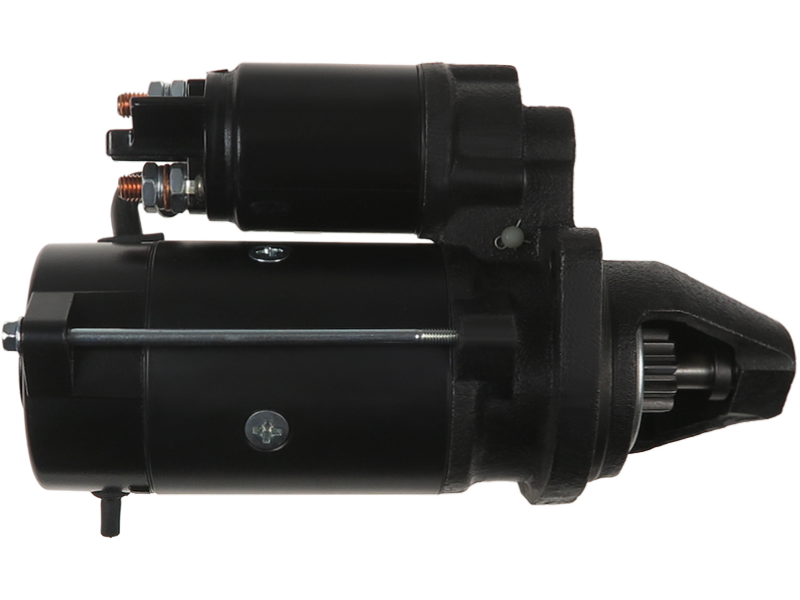

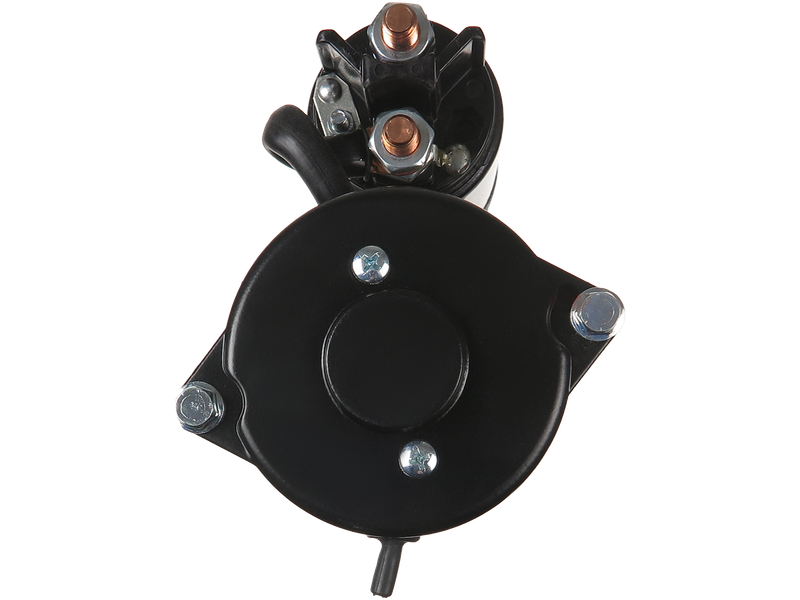

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 484.79 including GST
NZ$ 421.56 excluding GST
or four payments of $121.20
with
Learn More
each
S9352S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
11.131.833Associated Numbers
11.131.833 116379 630.538.102 91-23-6545 AZE4185 IS1059 MAHMS430 RE516455 RE519568 RE519975 SE501854 STI4603 UD13625SSpecifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 276.50 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 34 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 2550 3.9 | 01.1983-12.1986 | |
| JOHN DEERE | 5105M 4.5 | 10.2009- | |
| JOHN DEERE | 5210 | ||
| JOHN DEERE | 5300 2.9 | [3029] | 01.1996-12.2000 |
| JOHN DEERE | 5310 | ||
| JOHN DEERE | 5410 | ||
| JOHN DEERE | 5500 3.9 | [4039T] | 01.1996-12.2000 |
| JOHN DEERE | 6320 3.9 | 01.2002- |
Reference Information
| 11.131.833 | ISKRA / LETRIKA |
| 116379 | CARGO |
| 630.538.102.090 | PSH |
| 630.538.102.098 | PSH |
| 630.538.102.310 | PSH |
| 72736058 | MAHLE |
| 91-23-6545 | WILSON |
| AZE4185 | ISKRA / LETRIKA |
| F032116379 | CARGO |
| IS1059 | ISKRA / LETRIKA |
| MAHMS430 | WOODAUTO |
| MS430 | MAHLE |
| RE501347 | JOHN DEERE |
| RE501680 | JOHN DEERE |
| RE501689 | JOHN DEERE |
| RE501693 | JOHN DEERE |
| RE501713 | JOHN DEERE |
| RE502156 | JOHN DEERE |
| RE502196 | JOHN DEERE |
| RE506589 | JOHN DEERE |
| RE508736 | JOHN DEERE |
| RE516455 | JOHN DEERE |
| RE519568 | JOHN DEERE |
| RE519975 | JOHN DEERE |
| RE551444 | JOHN DEERE |
| RE60641 | JOHN DEERE |
| RE62916 | JOHN DEERE |
| RE63010 | JOHN DEERE |
| S134.181 | PSH |
| S144.177 | PSH |
| SE501854 | JOHN DEERE |
| SE501869 | JOHN DEERE |
| STR60682 | WOODAUTO |
| STR7961 | ELECTROLOG |
| STX200819 | STARDAX |
| UD13625S | AS-PL |
Video/Publications
